Cylinder padlock VERSO®CLIQ V319
For extreme weather conditions, with foreced locking - key can only be extracted when locked -without key-
Overview of Advantages
- Extreme protection against dirt, water and variations in temperature
Product description
- Power is supplied exclusively via the key (no battery in the cylinder)
- Available as electronical version (V=)

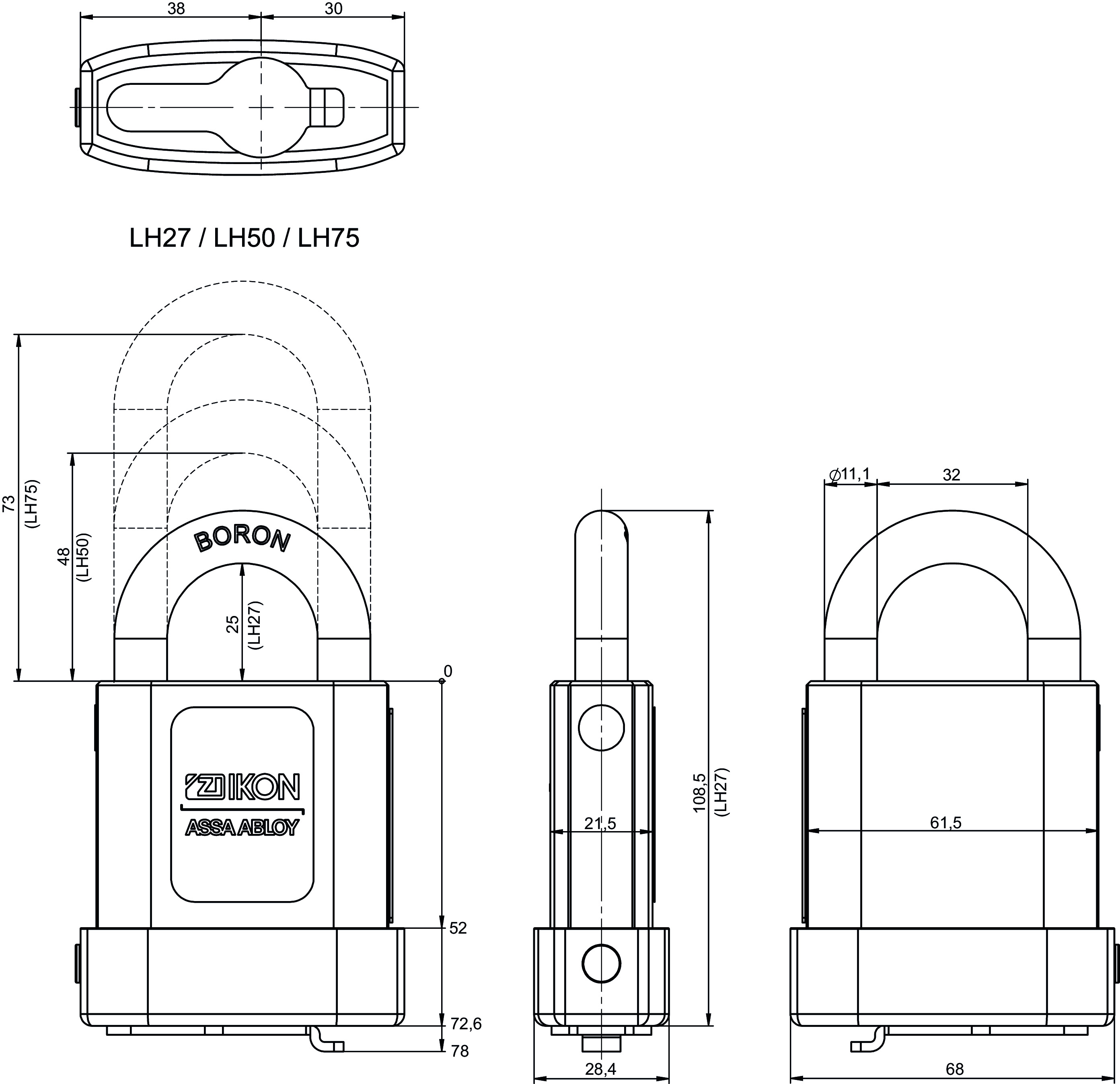

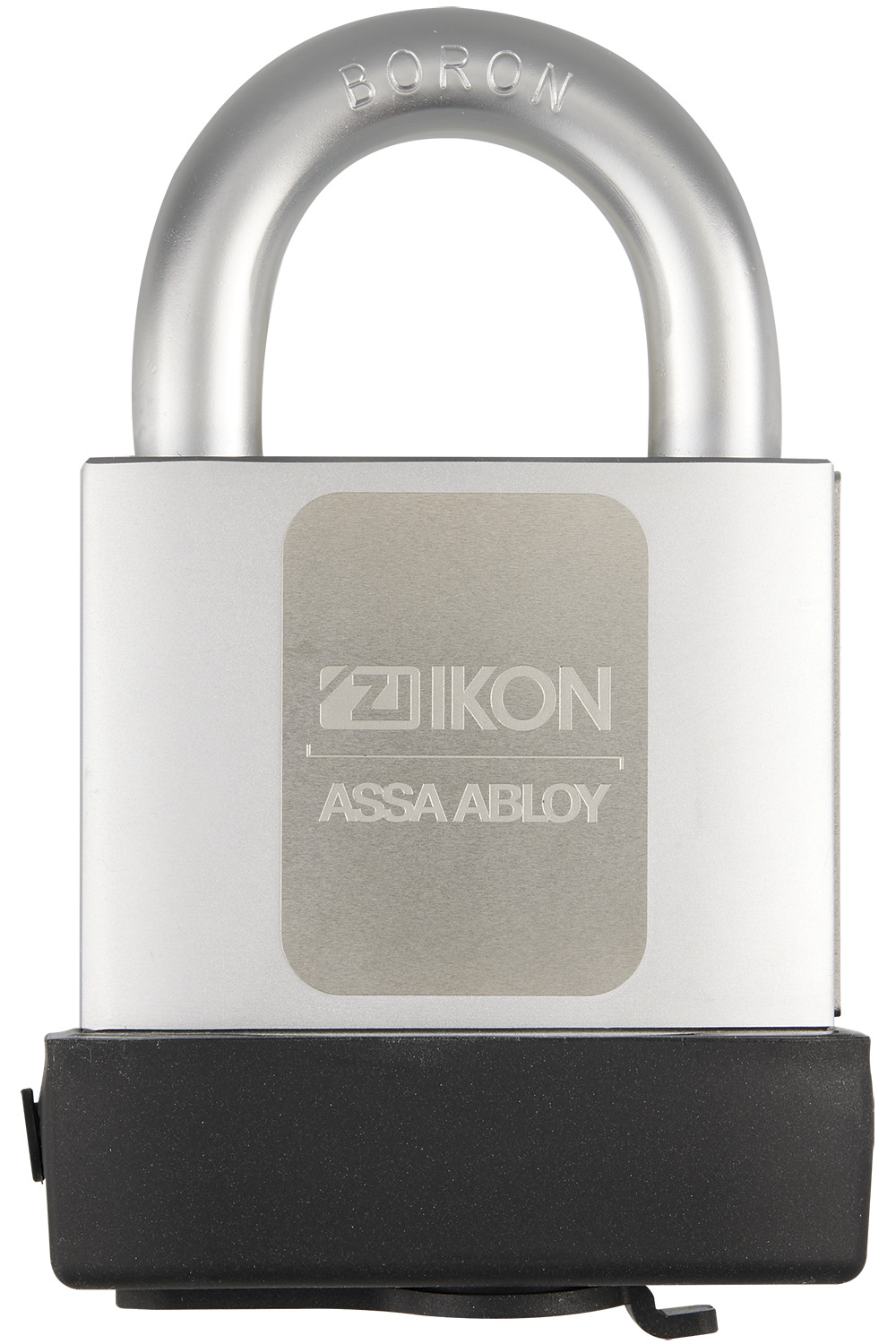

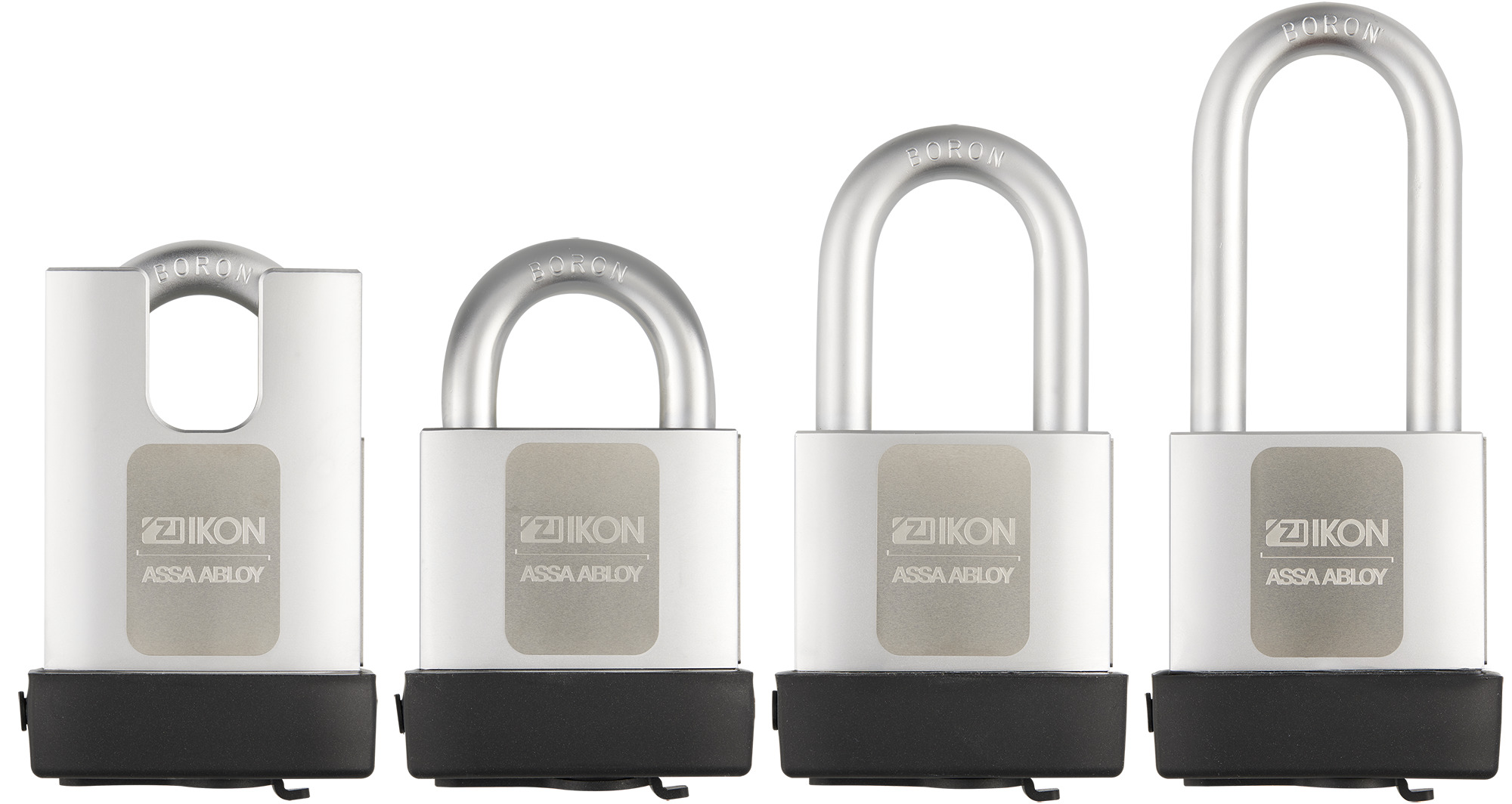

- Standard versions without high shoulder clear frame heights (AUS=LH27, LH50, LH75)

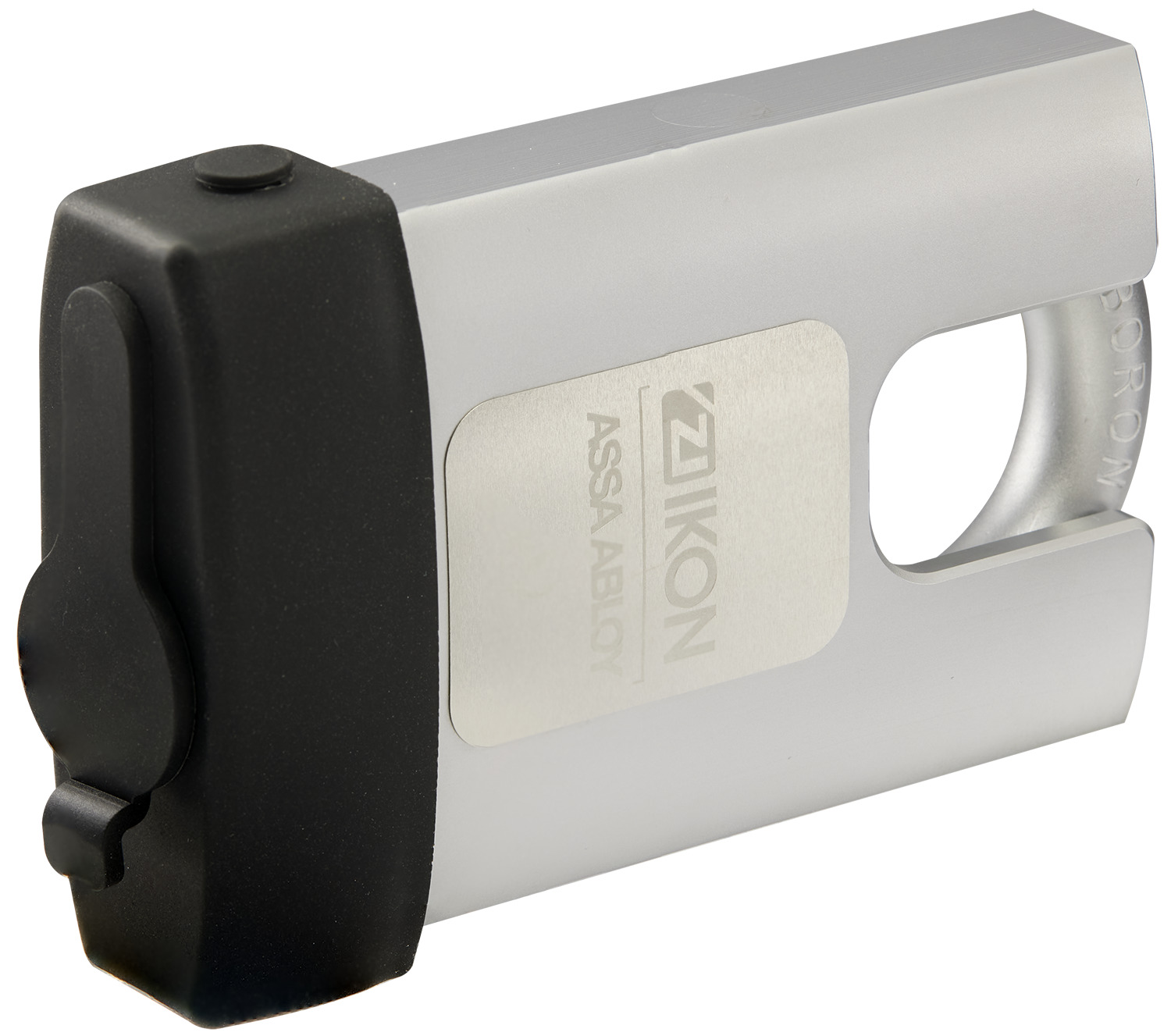

- Optional high shoulder clear height bracket version (AUS=LH27HS)
- Steel shackle available in 11.1 mm, hardened and chrome-plated
- Steel case hardened
- With a lateral M5 thread for attaching a protective cover
- Cylinder without dust and rain protection cap as standard (SUR=0)
- Cannot be combined with dust and rain protection cap (SUR=1) on cylinder
- Padlock equipped with silicone protective cap as standard
- Excellent protection against dampness and dirt, IP67
- Temperature range from -25°C to 85°C
- Maintenance-free for up to 200,000 cycles
- Optionally available for use in potentially-explosive atmospheres in Zone 1 (ATEX=II 2G Ex ib IIC T4 Gb)
Scope of delivery
- 1 cylinder padlock with silicon protection cap
| Article number | OF= | V= | AUS= |
|---|---|---|---|
| V319 | MC | E1 | LH27 |
| MC | E2 | LH27 | |
| MC | E1 | LH27HS | |
| MC | E2 | LH27HS | |
| MC | E1 | LH50 | |
| MC | E2 | LH50 | |
| MC | E1 | LH75 | |
| MC | E2 | LH75 |
Special identification marking
| Description | Info |
|---|---|
| Special designation of your choice for the front of profile cylinders, 6 characters maximum (SBZ=) | per cylinder |
Explosion protection
| ATEX= | Description | Info |
|---|---|---|
| II 2G Ex ib IIC T4 Gb | Locking cylinders for Zone 1 hazardous areas | per cylinder |
Version
| V2= | Description | Info |
|---|---|---|
| OHNE AUDIT | Cylinder without events list, frontal marking with symbol "§" | per cylinder |
