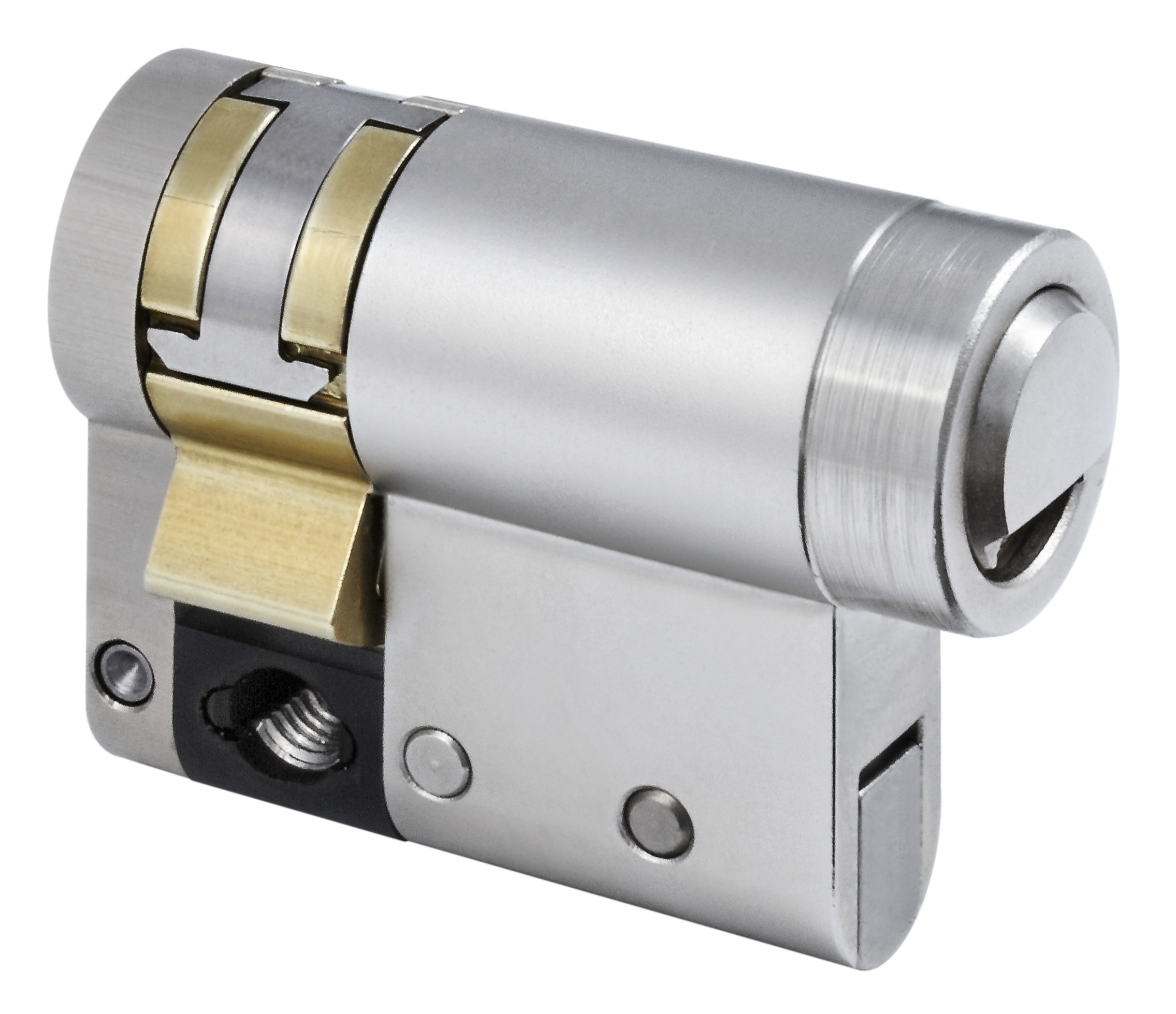

Profile-half cylinder VERSO®CLIQ V532,VAR=1901508
Without key
Overview of Advantages
- Particularly suitable for use in operating panels, e.g. in lifts

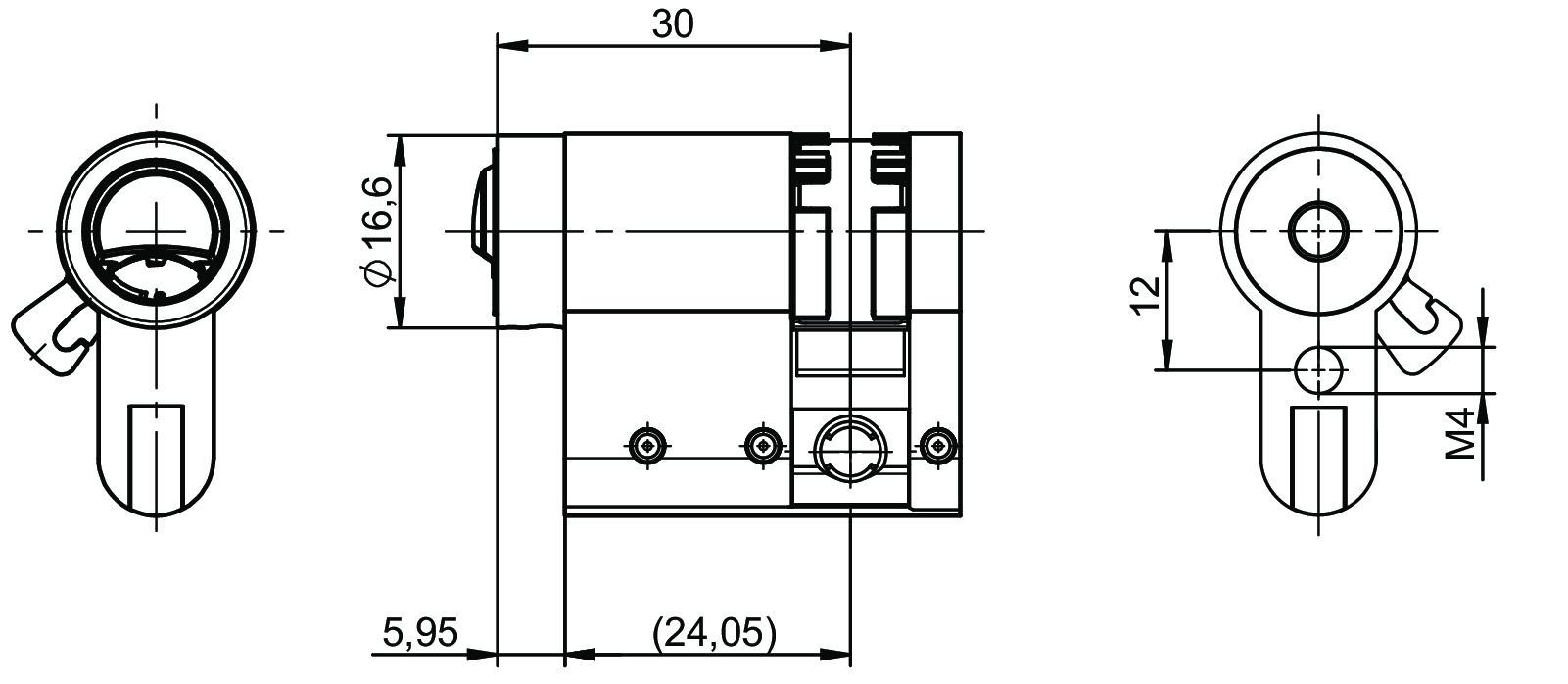

- Front surface shortened (5.95 mm)
Product description
- Available as mechanical or electromechanical version (V=)
- Particularly suitable for use in operating panels, e.g. in lifts
- Front surface shortened (5.95 mm)
- Brass cylinder housing components
- Standard finish, satin nickel-plated (OF=MV)
- Basic cylinder length 31mm (L=30/-)
- Standard cam position (SST=8x45°)
- Cam made of break and corrosion-resistant nickel silver profile
- Tumbler elements with special wear-resistant alloy
- Optionally available for use in potentially-explosive atmospheres in Zone 1 (Ex II 2G) ATEX=II 2G Ex ib IIC T4 Gb
Scope of delivery
- 1 profile half-cylinder
- 1 cylinder fixing screw M5 x 85 mm
Article number | V= | OF= | L= |
---|---|---|---|
V532,VAR=1901508 | M | MV | 30 |
E1 | MV | 30 | |
E2 | MV | 30 |
| Order number | Product |
---|---|---|
VZ03 | Maintenance spray | |
VZ05 | Maintenance spray |
Special identification marking
Description | Info |
---|---|
Special designation of your choice for the front of profile cylinders, 6 characters maximum (SBZ=) | per cylinder |
Explosion protection
ATEX= | Description | Info |
---|---|---|
II 2G Ex ib IIC T4 Gb | Locking cylinders for Zone 1 hazardous areas | per cylinder |
Special finish
OF= | Area of application | Info |
---|---|---|
MV | For profile and locking lever cylinders | per cylinder |
MC | For profile and locking lever cylinders | per cylinder |
MP | For profile and locking lever cylinders | per cylinder |
MG | For profile and locking lever cylinders | per cylinder |
Cam position and free wheeling function
SST= | Description |
---|---|
90-270 | 90-270 degrees |
270-90 | 270-90 degrees |
270-0 | 270-0 degrees |
270-160 | 270-160 degrees |
0-90 | 0-90 degrees |
180-90 | 180-90 degrees |
200-90 | 200-90 degrees |
270-180 | 270-180 degrees |
135-180 | 135-180 degrees |
135-225 | 135-225 degrees |
90-180 | 90-180 degrees |
180-270 | 180-270 degrees |
270-30 | 270-30 degrees |
330-90 | 330-90 degrees |
FZG | Freewheeling cylinder for gear locks, for cylinder lengths starting from L=35/30 or 30/35 |
Cogwheel version
SST= | Area of application | Description |
---|---|---|
K901179 | Mul-T-Lock type | Diameter 24 mm / Module 2 / 10 teeth |
K901180 | VIRO/IKON .138 type | Diameter 30 mm / Module 1,5 / 18 teeth |
K901293 | Laperche type | Diameter 24 mm / Module 1,5 / 14 teeth |
K901188 | Italian type | Diameter 27 mm / Module 1,5 / 16 teeth |
Installation lengths of half cylinders
L_A= |
---|
30 |
35 |
40 |
45 |
50 |
55 |
60 |
65 |
70 |
75 |
80 |
Version
V2= | Description | Info |
---|---|---|
OHNE AUDIT | Cylinder without events list, frontal marking with symbol "§" | per cylinder |
