+CLIQ

Product description

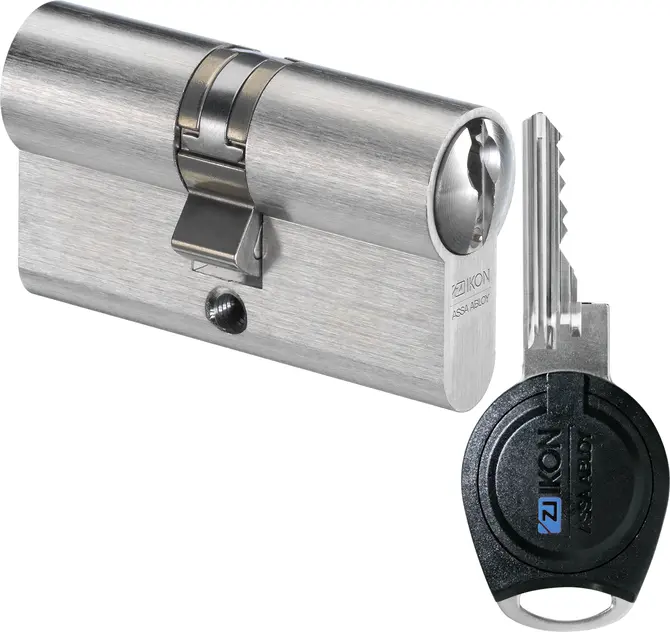

Profile-cylinder

• Unique and locking system encryption (mechatronic version)
• Optimum burglary protection due to mechanical tumblers and locking bars
• Can be combined with mechanical and mechatronic cylinder halves to some extent
• Optional enhanced drilling protection
• Optional comfort function for bilateral opening
• Several free rotation angles (optional)
• Integrated chip in mechatronic models to store access authorisations and locking procedures
• 2 different memory sizes available (mechatronic version)
• Standard cylinder memory (mechatronic version V=E1): Memory locations for 100 individual keys or groups (up to 65,000 keys per group), locking function for 100 keys, event memory for the last 50 locking actions
• Optional cylinder memory (mechatronic version V=E2): Memory locations for 1,000 individual keys or groups (up to 65,000 keys per group), locking function for 1,500 keys, event memory for the last 750 locking actions
• Operational temperature range: between -25°C and +85°C
• Optionally available for use in potentially-explosive atmospheres in Zone 1

User key

• Optical and acoustic signalling for access entitlements, time zone and battery status
• Optionally with RFID chip integrated in the battery cover
• Temperature range 0° C to +70° C
• Splash-proof (IP54)
• Optionally protected against temporary immersion in water (IP67)
• Power supply via commercially available lithium battery (CR2032)
• For around 30,000 locking events (approx. 3-year shelf life)
• Optionally available for use in potentially-explosive atmospheres in Zone 1
