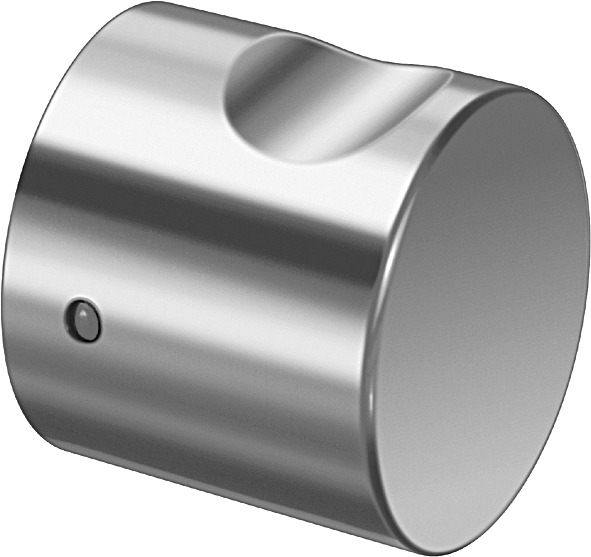

Knob with handle grip, anodised aluminium, 30 mm diameter -without key-
Product image 1
Product description
Available as rotary secured or electronical version (V=)
Brass cylinder housing components
Standard finish, satin nickel-plated (OF=MV)
Standard knob colour nickel silver (KNF=1F2)

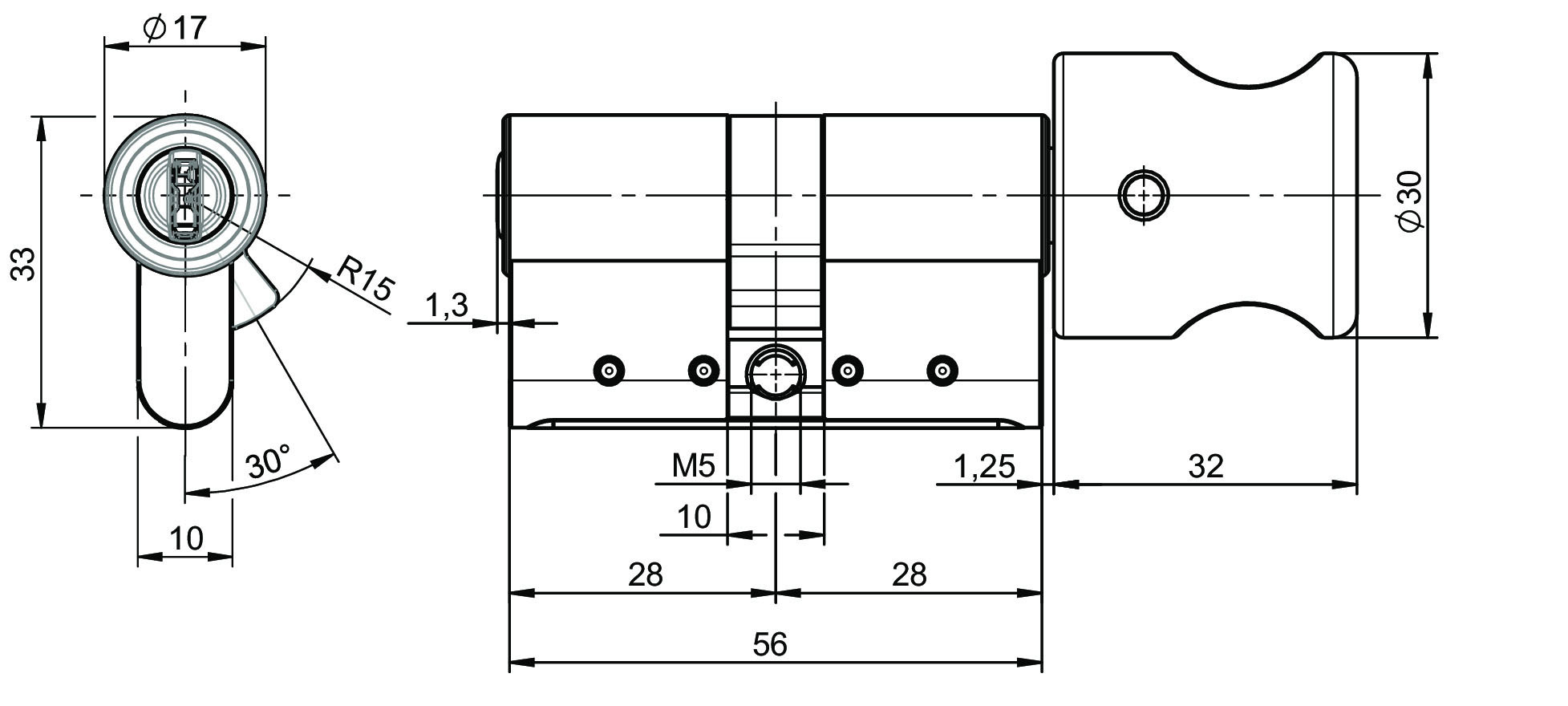

Basic cylinder length 61 mm (C) - A/B (L=30/30) - other installation lengths available - flexible modular system
Optional, differing basic cylinder length of 56 mm (C) - A/B (L=28/28)
Standard locking cam position (SST=30°); differing locking bit position available, optionally available with SST=FLEX
Optionally available with double locking cam (VAR=K901310-X-BIFFAR)
Optionally available with anti drilling protection class 2 (AB=2)
Cam made of break-proof, corrosion-resistant stainless steel
Maintenance-free cylinder
Splash-proof IP54
Optionally VdS★★★ (SZ=VDS-BZ+, AB=3)
Optionally DIN EN 15684 with anti drilling protection class 2 (SZ=DIN-D, AB=2)
Optionally available for use in potentially-explosive atmospheres in Zone 1 (ATEX=II 2G Ex ib IIC T4 Gb)
Optionally available with classroom function: With this anti-amok function the knob is disengaged as the key is entering the cylinder on the opposite side (VAR=1901509+3+ENTKUPPL.)
Scope of delivery
1 profile-knob cylinder
1 cylinder fixing screw M5 x 85 mm
Ordering Information
The knob is always on the inside of the cylinder (B)
