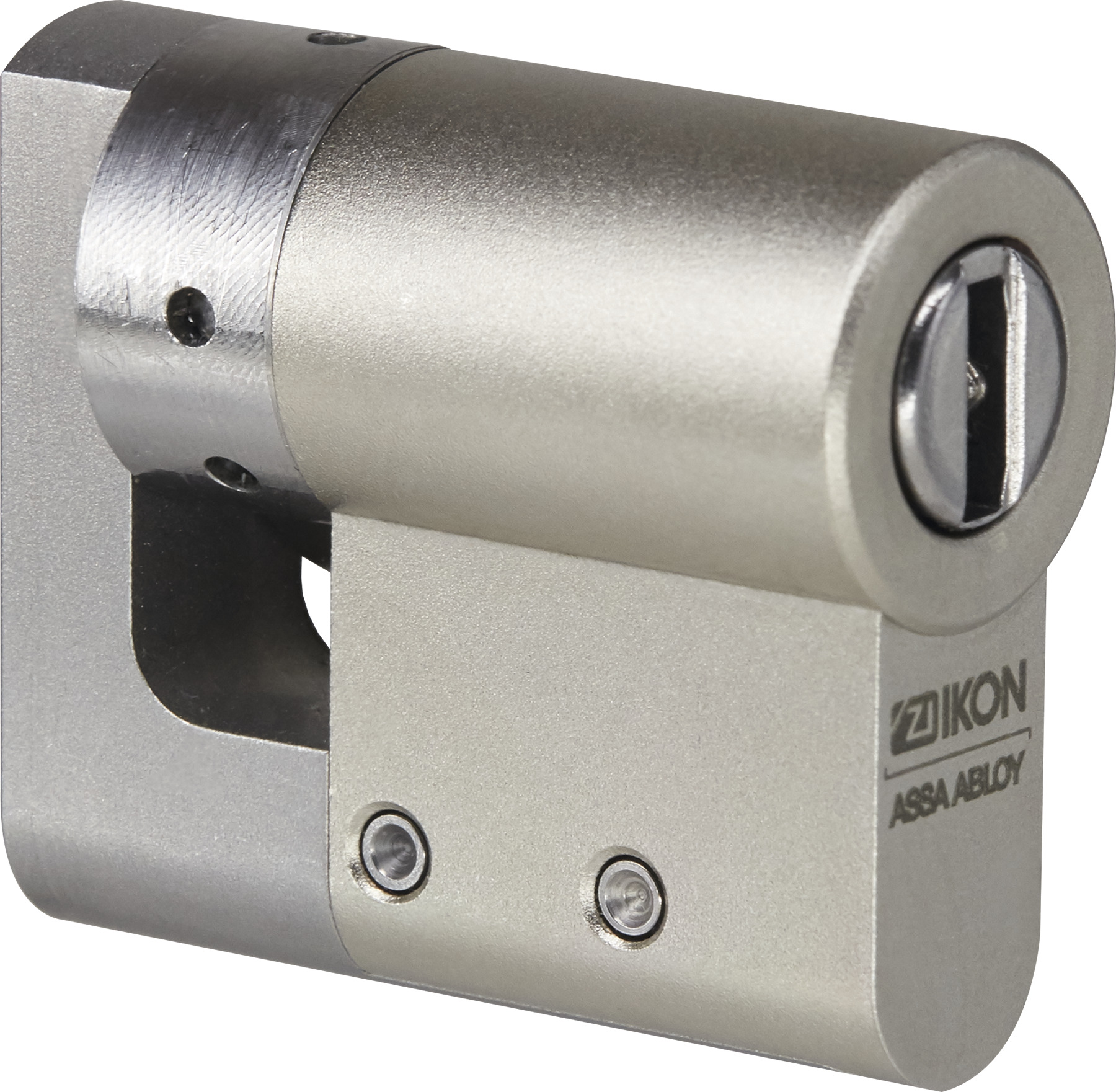

Profile-half cylinder CLIQ® Go N532,VAR=R90A008,SERVICE=CLIQGo
Without key
Product description
- Available as rotary secured or electronical version (V=)
- Brass / steel cylinder housing components
- Version with optimum extraction protection (15,000 N / 1.5 t)
- Particularly suitable for use in vending machines
- Standard finish, satin nickel-plated (OF=MV)
- Standard cam position 45° (SST=45)
- Cam off high strength and high-alloyed steel
- Maintenance-free for up to 200,000 cycles
- Splash-proof IP54
- Dust and rain cover available (SUR=3) IP55
- Optionally available with anti drilling protection class 2 (AB=2)
Scope of delivery
- 1 profile half-cylinder
| Article number | OF= | L= | V= |
|---|---|---|---|
| N532,VAR=R90A008,SERVICE=CLIQGo | MV | 30 | D |
| MV | 30 | E |
Drilling protection
| AB= | Area of application | Info |
|---|---|---|
| 0 | ||
| 2 | For profile knob, half and special cylinders | per cylinder |
Special finish
| OF= | Area of application | Info |
|---|---|---|
| MV | For profile and locking lever cylinders | per cylinder |
| MG | For profile and locking lever cylinders | per cylinder |
| MP | For profile and locking lever cylinders | per cylinder |
| MC | For profile and locking lever cylinders | per cylinder |
Dust and rain protection
| SUR= | Area of application | Description | Info |
|---|---|---|---|
| 0 | Deviating from the standard cap | per cylinder | |
| 3 | For profile knob and double cylinder, double cylinder one side blind and half cylinder | per cylinder |
Version
| V= | Description |
|---|---|
| E | Electronic version |
| D | Rotary secured version |
Variant
| VAR= |
|---|
| R90A008 |
Cam position and free wheeling function
| SST= | Description |
|---|---|
| 0 | 0 degree (only for N532 VAR=R90A008) |
| 45 | 45 degrees (only for N532 VAR=R90A008) |
| 180 | 180 degress (only for N532 VAR=R90A008) |
| 135 | 135 degrees (only for N532 VAR=R90A008) |
| 225 | 225 degrees (only for N532 VAR=R90A008) |
| 315 | 315 degrees (only for N532 VAR=R90A008) |
