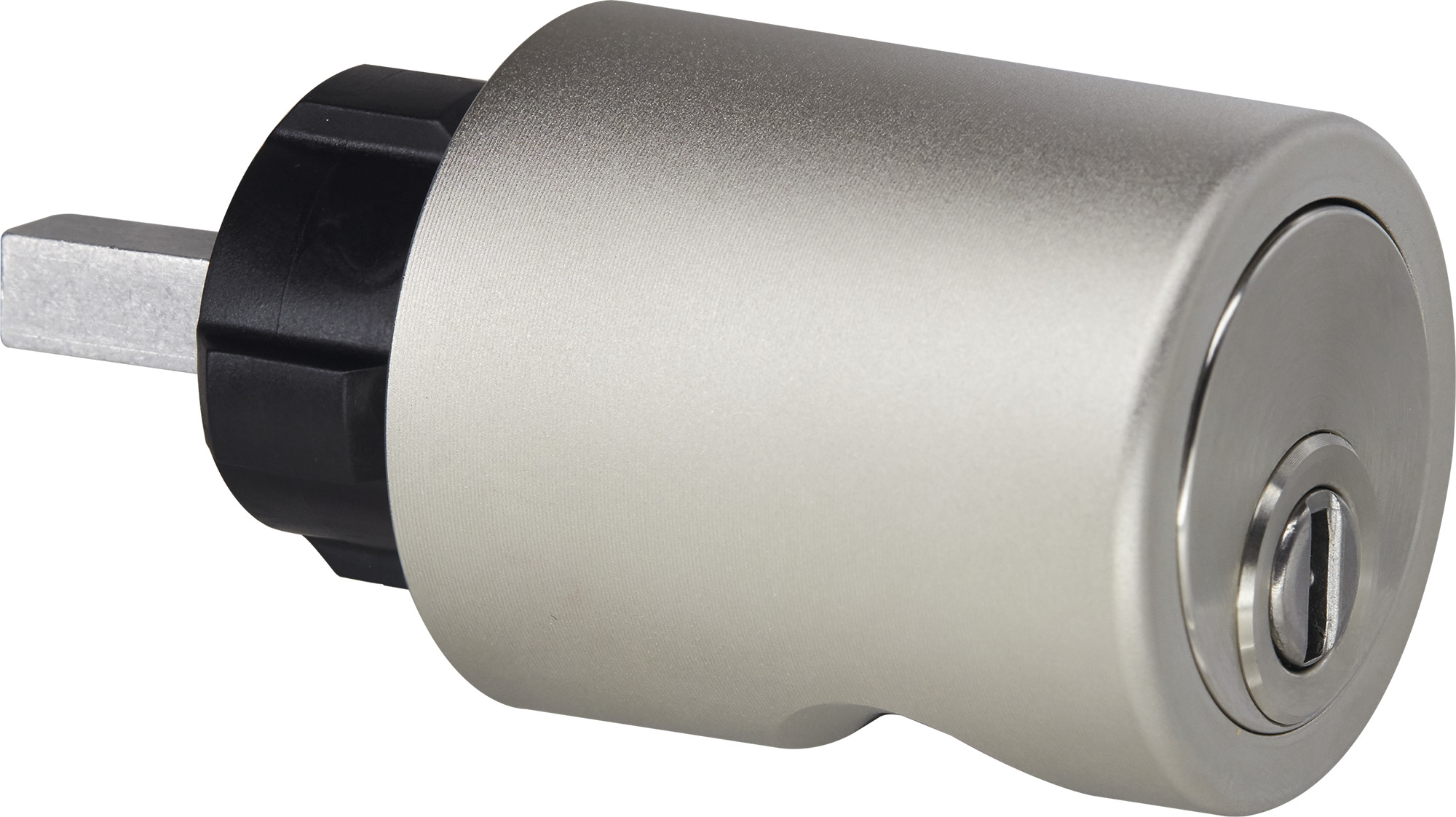

Furniture lock CLIQ® Go N184,SERVICE=CLIQGo

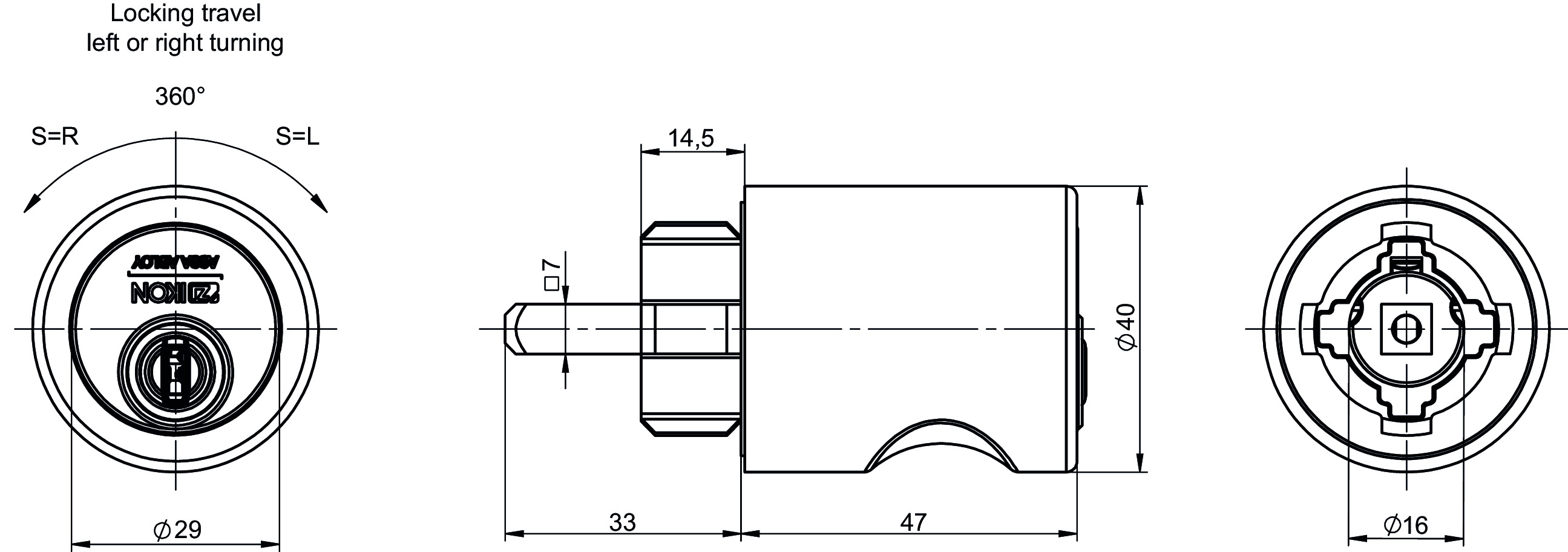

40 mm diameter -without key-
Product description
- Available as rotary secured or electronical version (V=)
- Brass cylinder housing components
- Standard finish, satin nickel-plated (OF=MV)
- Polyamide or metal housing
- Standard housing colour light grey (FB=LGR)
- Further housing finishes optionally available: white (FB=WS), satin nickel plated (FB=MV)
- With 7 mm square spindle
- Fixing with Parker screw
- With special escutcheon to facilitate fixing in connection with IKON furniture lock 8657 and sleeve 8068
- Maintenance-free for up to 200,000 cycles
- Dust and rain cover available (SUR=1) IP55
Scope of delivery
- 1 furniture lock cylinder
| Article number | FB= | S= | OF= | V= |
|---|---|---|---|---|
| N184,SERVICE=CLIQGo | LGR | L | MV | D |
| LGR | L | MV | E | |
| LGR | R | MV | D | |
| LGR | R | MV | E |
| | Order number | Product |
|---|---|---|
 | 8657 | Furniture espagnolette lock |
Special finish
| OF= | Area of application | Info |
|---|---|---|
| MV | For profile and locking lever cylinders | per cylinder |
Dust and rain protection
| SUR= | Area of application | Description | Info |
|---|---|---|---|
| 0 | Deviating from the standard cap | per cylinder | |
| 1 | For special cylinders | per cylinder |
Housing colours for furniture olives
| FB= | Description |
|---|---|
| LGR | similar to RAL 7035 |
| WS | similar to RAL 9010 |
| MV | Metal |
Version
| V= | Description |
|---|---|
| E | Electronic version |
| D | Rotary secured version |
