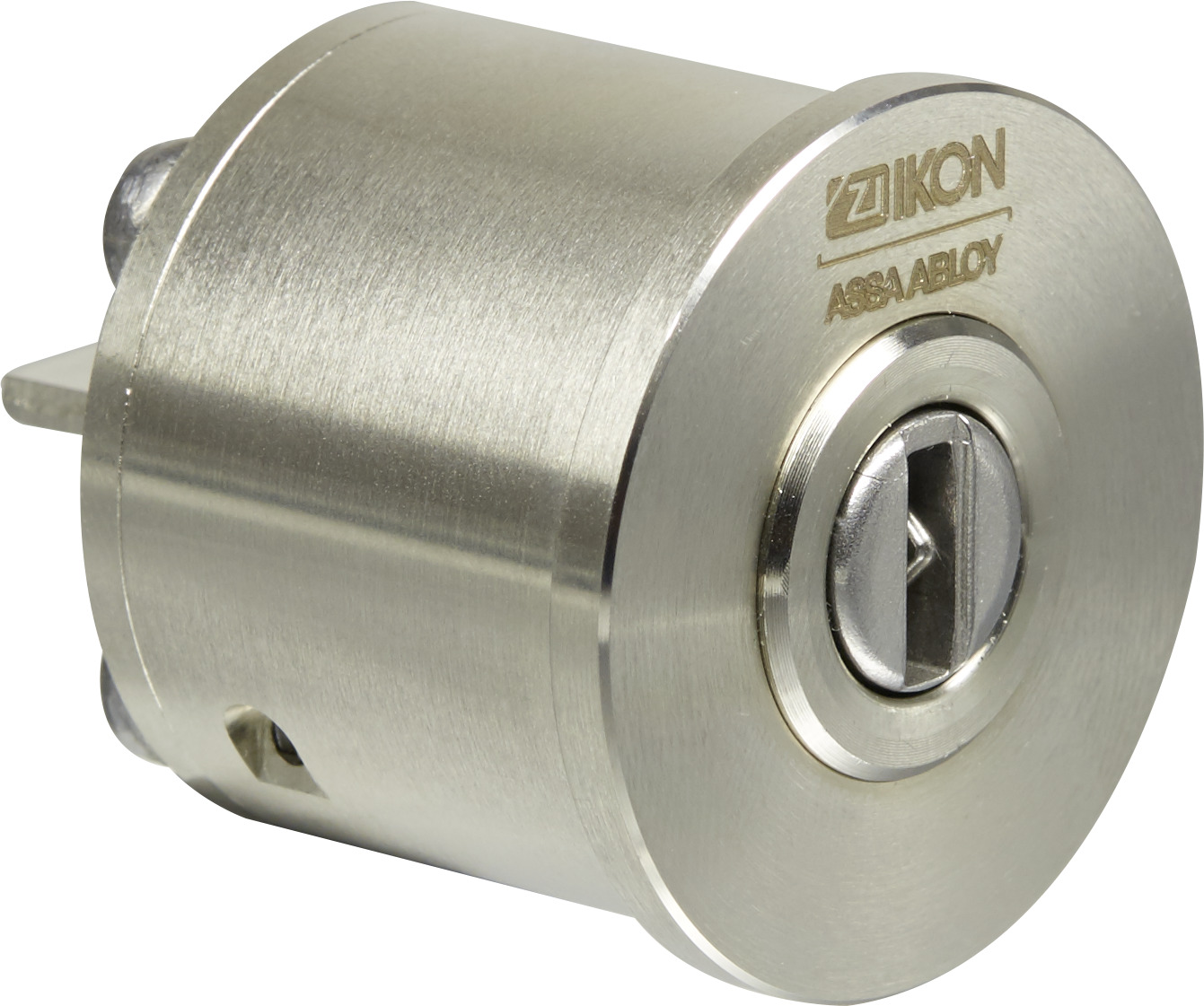

Switch cylinder CLIQ® Go NC19,SERVICE=CLIQGo

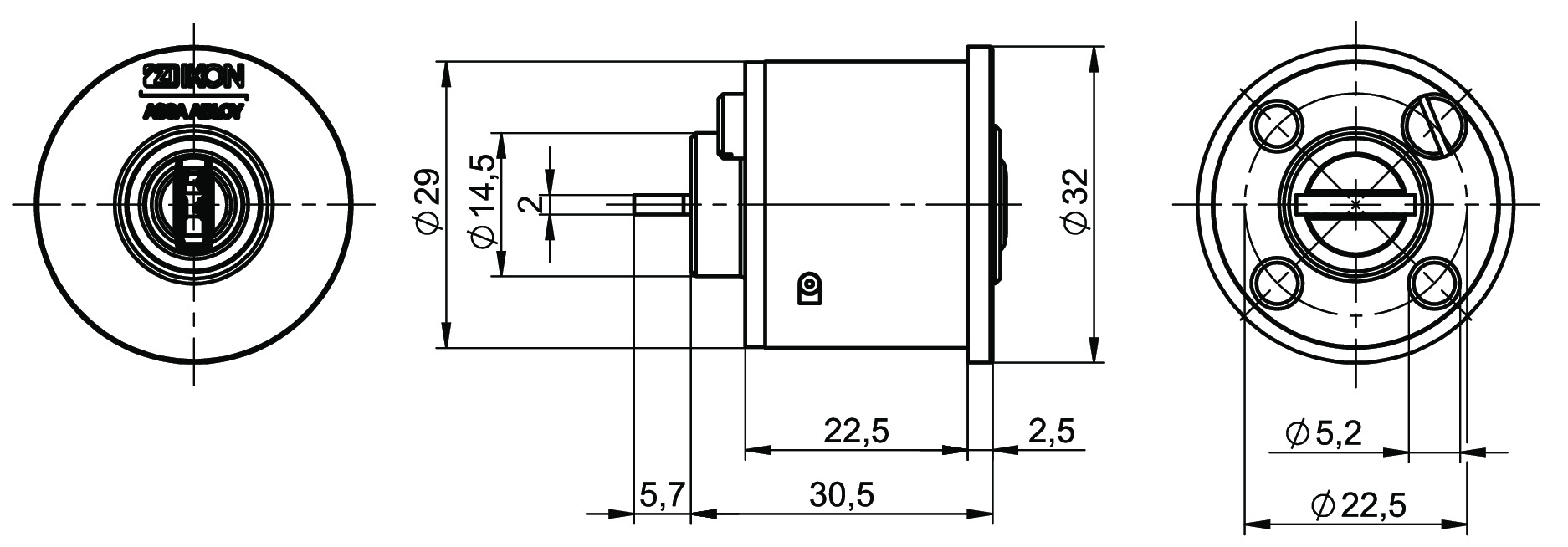

Diameter 29 mm for electric key switch -without key-

Product description

  • Available as electronical version (V=)
  • Standard finish, satin nickel-plated (OF=MV)
  • 29 mm diameter
  • 360° impulse for electric key switch
  • Rotation movement handled by electronic switch
  • Compatible with KESO switch cylinder part no. XX.019
  • Maintenance-free for up to 200,000 cycles
  • Splash-proof IP54
  • Dust and rain cover available (SUR=1) IP55

Scope of delivery

  • 1 switch cylinder
Variants that can be ordered
Article numberOF=AUS=V=
NC19,SERVICE=CLIQGo MV 1E
Special equipment

Special finish

OF=Area of applicationInfo
MV For profile and locking lever cylindersper cylinder

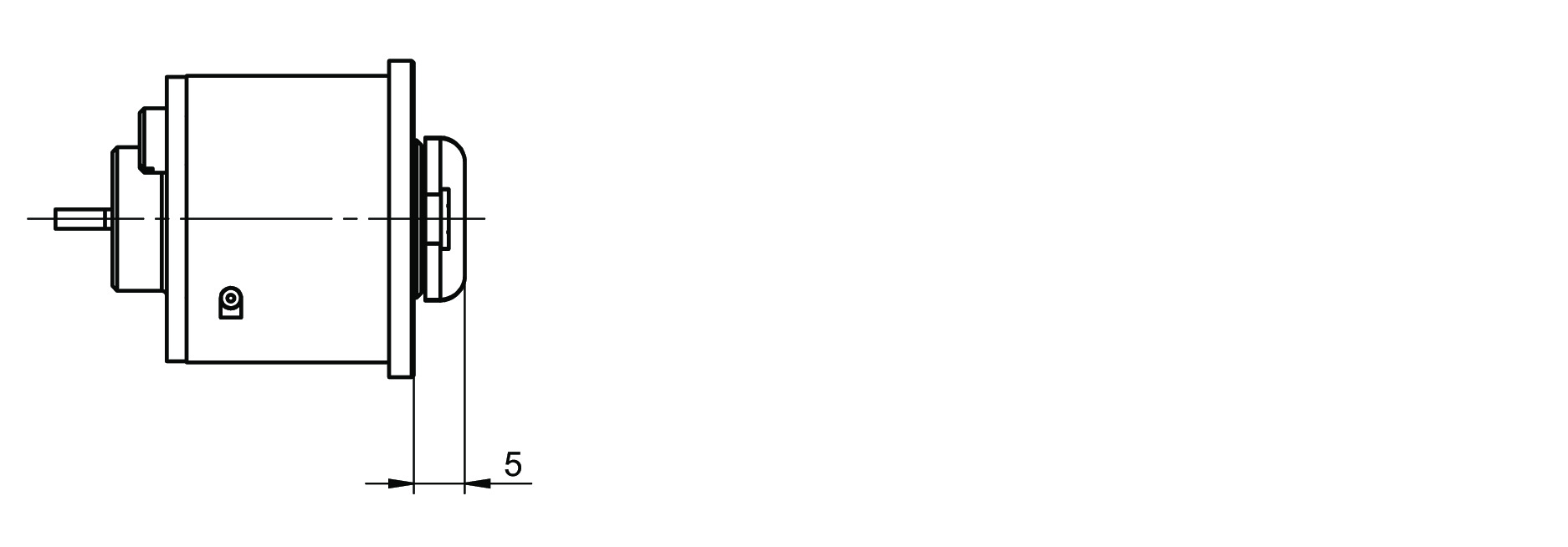

Dust and rain protection

SUR=Area of applicationDescriptionInfo
0Deviating from the standard capper cylinder
1For special cylindersper cylinder

Version

V=Description
E Electronic version
D Rotary secured version
