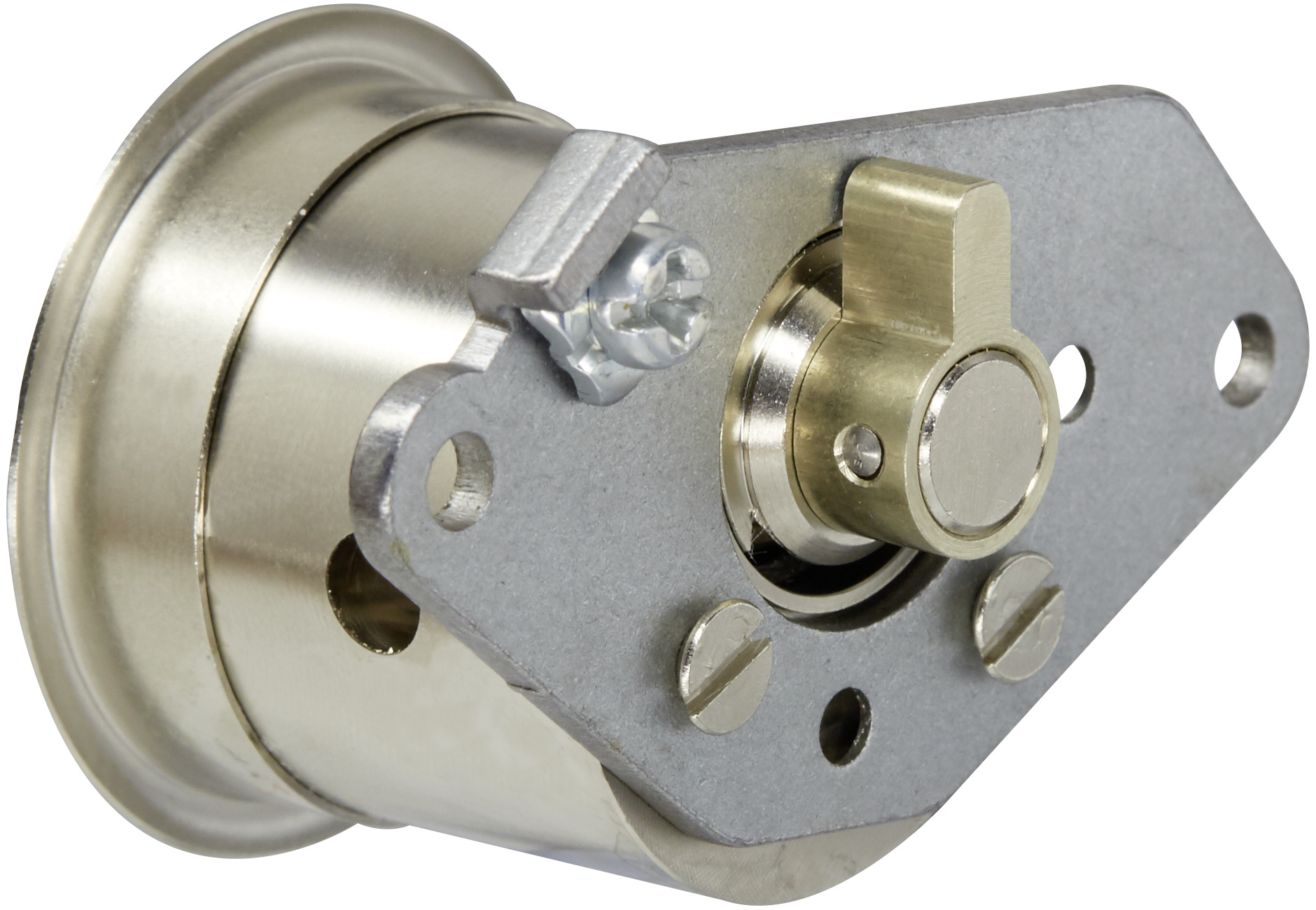

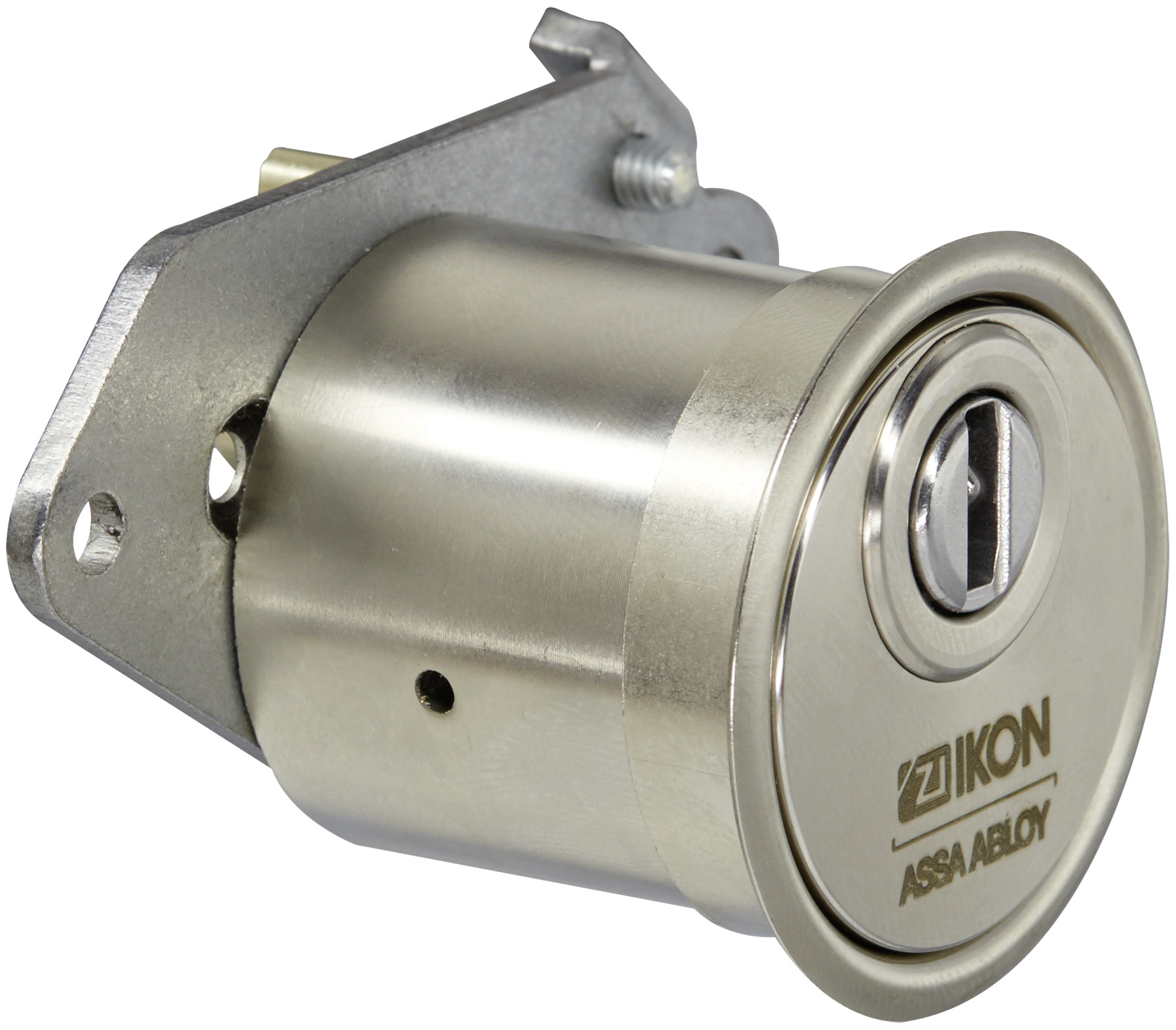

Furniture lock CLIQ® Go N577,AUS=3,SERVICE=CLIQGo
With mounting plate e.g. for switches -without key-
Product description
- Available as rotary secured or electronical version (V=)
- Brass cylinder housing components
- Standard finish, satin nickel-plated (OF=MV)
- Tumbler elements with special wear-resistant alloy
- Basic cylinder length L=A 29.8 mm
- Maintenance-free for up to 200,000 cycles
- Dust and rain cover available (SUR=1) IP55
Scope of delivery
- 1 furniture cylinder

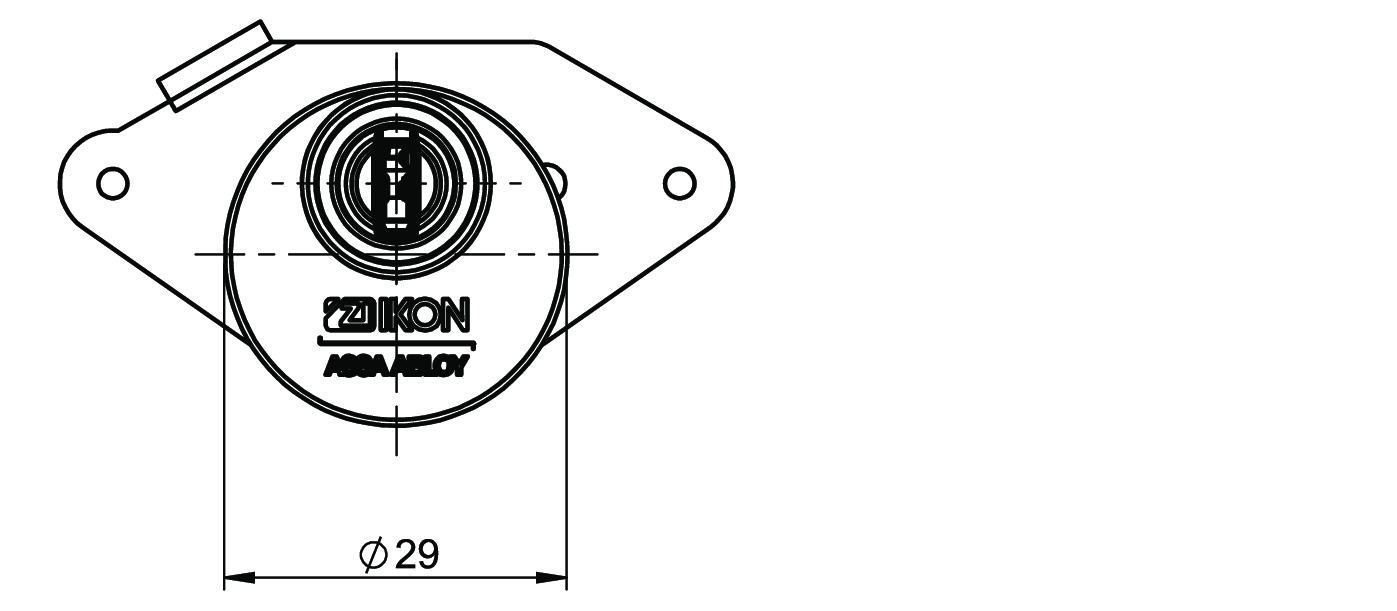

- 1 Escutcheon (inside Ø 29 mm, outside Ø 30 mm, collar Ø 35.5 mm)
- 1 screw-on plate
- 2 countersunk screws
Special finish
| OF= | Area of application | Info |
|---|---|---|
| MV | For profile and locking lever cylinders | per cylinder |
| MG | For profile and locking lever cylinders | per cylinder |
| MP | For profile and locking lever cylinders | per cylinder |
| MC | For profile and locking lever cylinders | per cylinder |
Dust and rain protection
| SUR= | Area of application | Description | Info |
|---|---|---|---|
| 0 | Deviating from the standard cap | per cylinder | |
| 1 | For special cylinders | per cylinder |
Version
| V= | Description |
|---|---|
| E | Electronic version |
| D | Rotary secured version |
Version
| AUS= |
|---|
| 3 |
