Profile-knob cylinder CLIQ® Go N534,KNF=2,VAR=FS,SERVICE=CLIQGo
With magnetic locking cam reset

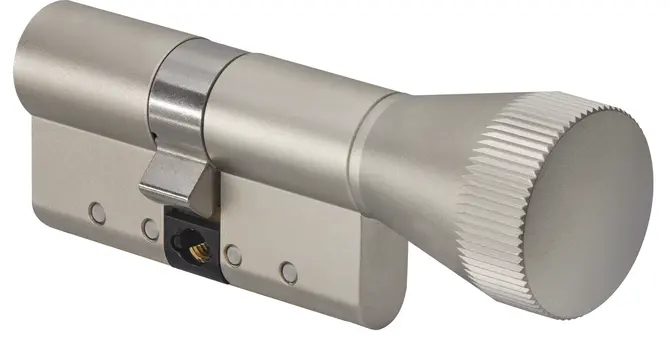

Product image
Product description
Available as rotary secured or electronical version (V=)
Brass cylinder housing components
Standard finish, satin nickel-plated (OF=MV)
Standard knob colour satin nickel-plated (KNF=2MV)
Basic cylinder length 61 mm (C) - A/B (L=30/30) - other installation lengths available - flexible modular system
Optional, differing basic cylinder length of 56 mm (C) - A/B (L=28/28)
Standard locking cam position (SST=30°); differing locking bit position available, optionally available with SST=FLEX
Optionally with magnetic locking cam reset function (VAR=FS)
Optionally available with double locking cam (VAR=K901310-X-BIFFAR)
Optionally available with anti drilling protection class 2 (AB=2)
Cam made of break-proof, corrosion-resistant stainless steel
Maintenance-free for up to 200,000 cycles
Splash-proof IP54
Dust and rain cover for one side available (SUR=3) IP55
Optionally available with classroom function: With this anti-amok function the knob is disengaged as the key is entering the cylinder on the opposite side (VAR=1901509+3+ENTKUPPL.)
Scope of delivery
1 profile-knob cylinder
1 cylinder fixing screw M5 x 85 mm
Ordering Information
The knob is always on the inside of the cylinder (B)
