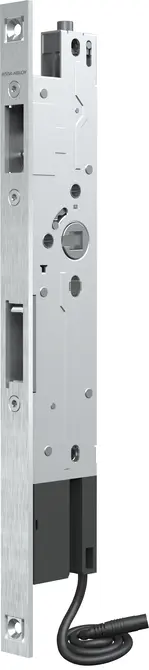

Standard passive leaf lock N1920

with monitoring

Product description

  • OneSystem standard passive leaf lock N1920 for automatic locking of the inactive leaf upwards or downwards for double-leaf doors. For use with OneSystem locks from the N1600 series on the active leaf / approved for use in fire barriers in accordance with DIN EN 1634 / product-specific environmental product declaration (EPD) according to DIN EN 15804 with article-specific key figures.

Note

  • For U-shaped versions, the end caps are included in the scope of supply. Please note:, for U-shaped versions, the backset is shortened by 1mm.
Technical data
Backset30, 35, 40, 45 mm
Distance92 mm (prepared for Euro profile cylinders)
ForendU-shaped face plate: U6 x 24 mm Flat face plate: F3 x 20 mm, F3 x 24 mm
Forend length270 mm
Material face plateStainless steel
LatchDIN L/R
Bolt throw20 mm
Follower9 mm
StandardsEN 1634, EN 15804
Top lockYes
Panic functionNo
Fire protectionYes
Leaf typePassive leaf
Variants that can be ordered
Order number
Forend shape
Forend length
Monitoring
N19200129X*0009F3 x 24 mm320 mm
N19200129X*000AU6 x 24 mm320 mm
