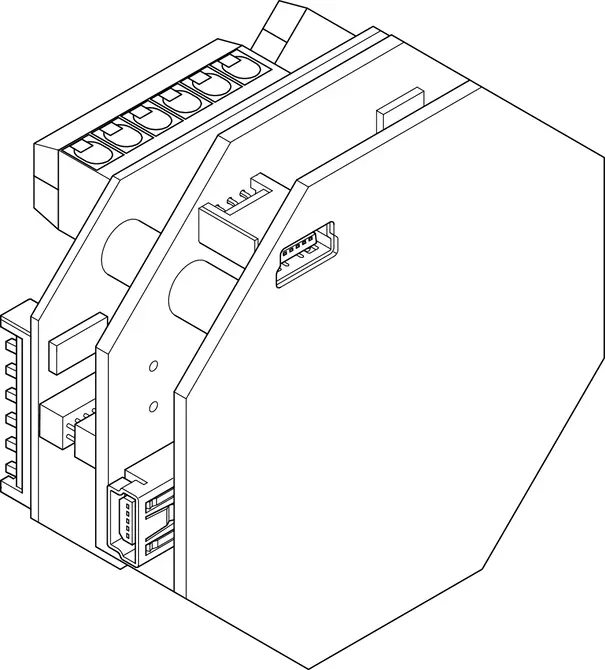

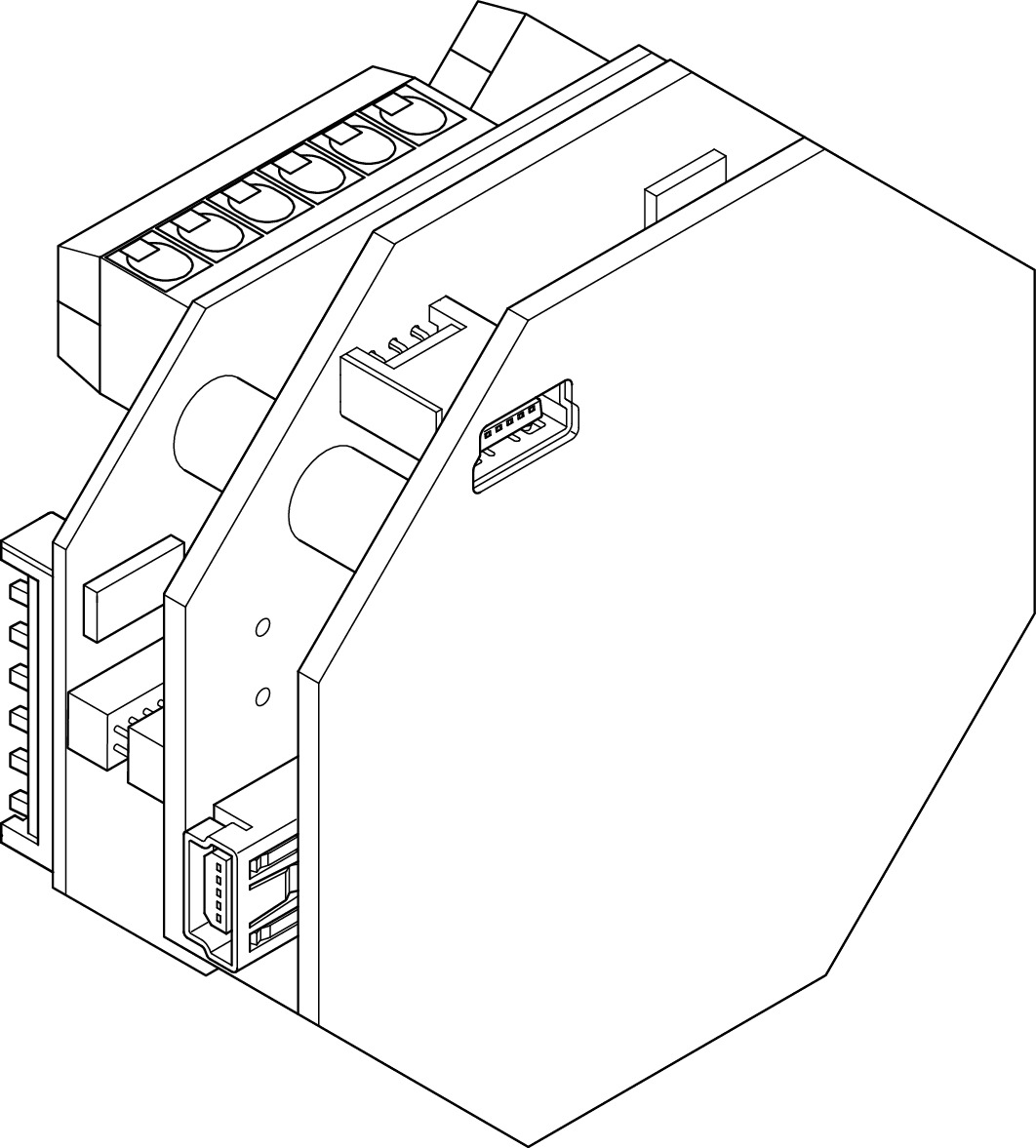

IO module N5951
for installation in a flush-mounted box
Product description
- The IO module is suitable for digital connection of locks with Hi-O technology. The IO module provides the connection to conventional devices, e.g. access control, on-site interlock controls or monitoring controls. To this end, it provides non-isolated inputs for external control and potential-free relay outputs for querying the function states of the locks for higher-level systems.
- Non-isolated digital inputs for external release, external door contact and central locking.
- Voltage-actuated input for fire alarm system
- Two potential-free relay outputs (can be configured via a turn-switch)
Overview of Advantages
- Installation in a flush-mounted box
| Supply voltage | 12 V (-10 %) to 24 V (+10 %) DC SELV; 24 V DC |
| Outputs | 24 VDC / 100 mA |
| Max. contact load capacity | Outputs (resistive load): 30 V / 1 A |
| Max. current consumption | (12 V DC; 125 mA) (24 V DC; 75 mA) |
| Version | IO module flush-mounted N5951 |
| Version | Unterputzmontage |
| Class of protection | IP 30 (when completely mounted) |
| Variant | Flush-mounted |
| Installation | To install flush mounted switch box, 62 mm deep |
