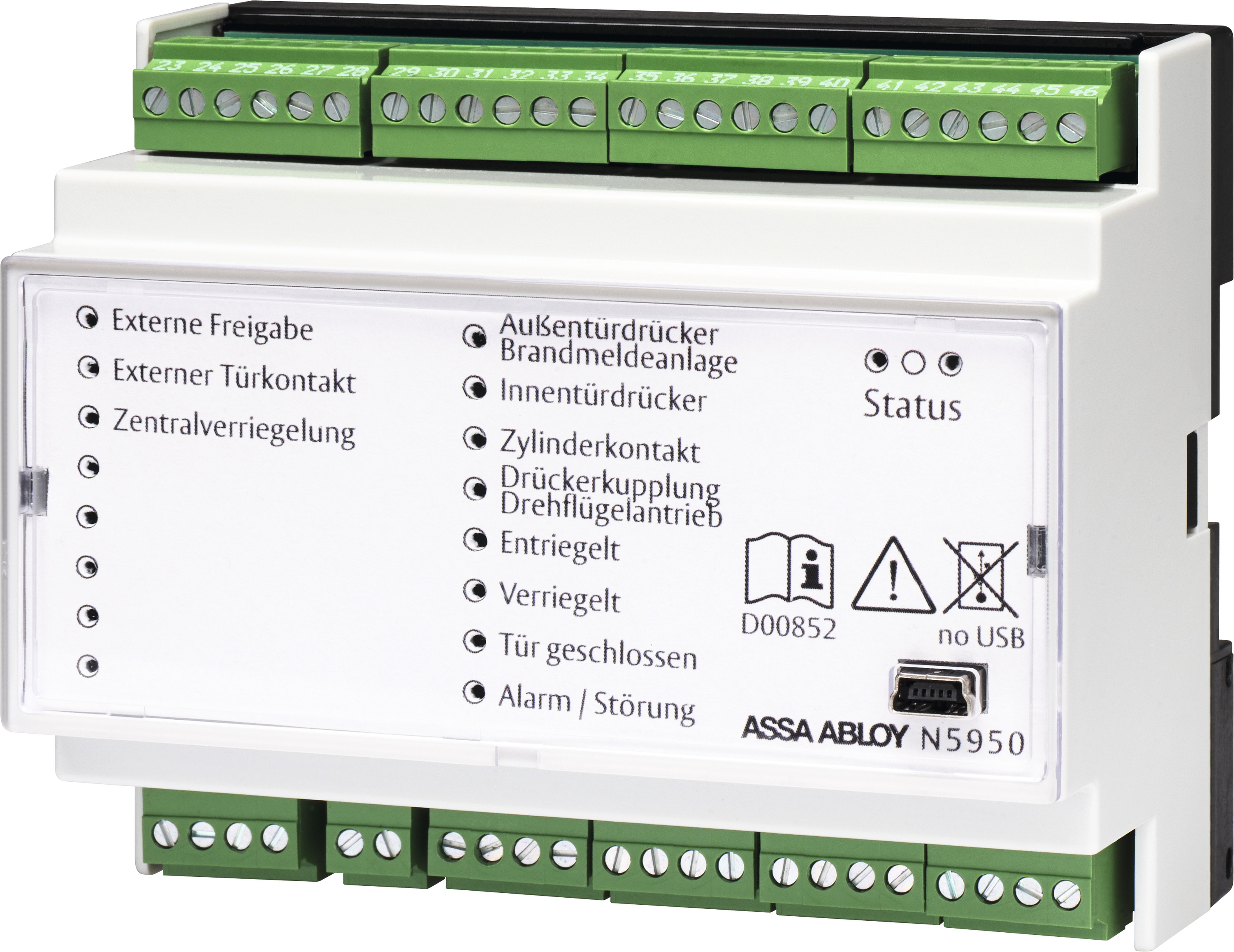

IO module N5950

Product description

• The IO module is suitable for digital connection of locks with Hi-O technology. The IO module provides the connection to conventional devices, e.g. access control, on-site interlock controls or monitoring controls. To this end, it provides non-isolated inputs for external control and potential-free relay outputs for querying the function states of the locks for higher-level systems.
• The following settings and messages are possible (depending on the model)
• Relay outputs: Outer handle, Inner handle, Cylinder operated, (Handle coupling active), Unlocked, Locked, Door open/closed, Alarm / fault
• Inputs: (External release), External door contact, (Central locking)
• Settings: Time mode: Unlocking time 2-28 sec., Toggle function, Direct mode
