OneSystem

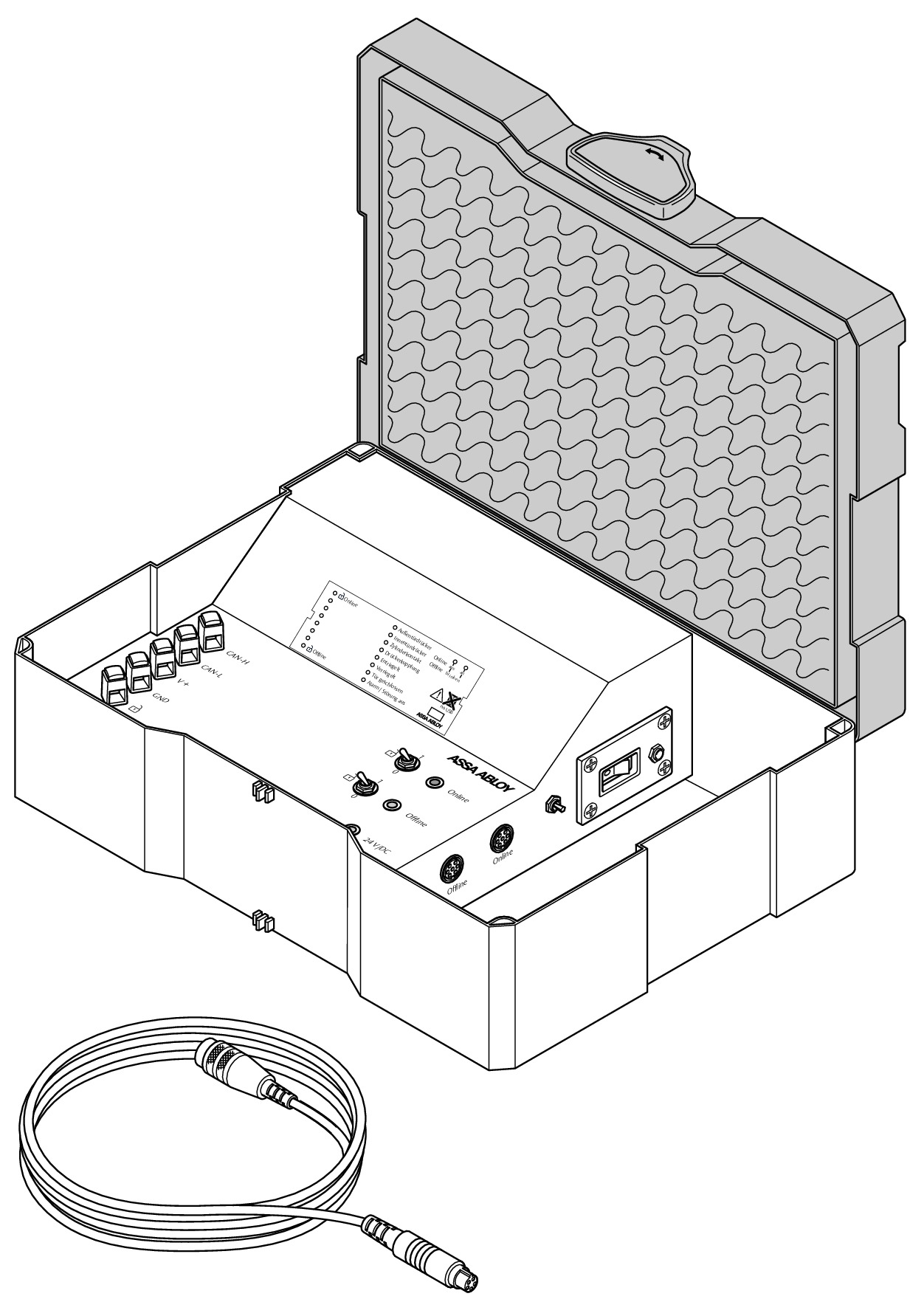

Service Module
Product description
- The OneSystem Service Module enables testing for the monitoring and IO interfaces of an OneSystem security lock.
- Depending on the type of lock, the motorised function or the printer control can also be tested.
Overview of Advantages
- Ensuring the functionalities in the factory
- Checking the functionalities in case of service on site
Scope of delivery
- OneSystem Service Module
Note
- Compatible with N11xx, N16xx, 509N, 519N, 809N as well as 819N locks series
- Mains adapter 1002NG24–––––00 must be ordered separately.
| Supply voltage | 230 V AC 50-60 Hz |
| Primary fuse 230 V | 1,6 A |
| Secondary fuse for 24 V electrical circuit | 2,5 A |
| Output voltage | 24 V DC |
| Dimension | 400 x 300 x 150 mm (L x W x D) |
