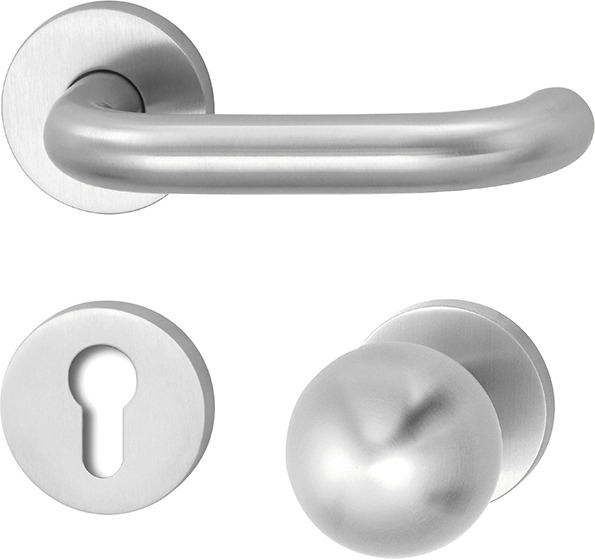

Fire protection fitting with panic handle for wide style doors

U-shaped handle with round knob

The fire protection fitting with panic handle for wide style doors meets requirements for fire and smoke protection hardware in accordance with DIN 18273 and with escape door function in accordance with EN 190. The high-quality U-shaped handle on short plate blends elegantly into any building. Durable brushed stainless steel as a modern and corrosion-resistant material is perfect for any environment where quality matters. This model is supplied with a flat knob.

Freely configurable to your door thickness
Classic curved handle
Meets requirements for fire and smoke protection hardware in accordance with DIN 18273
Suitable for use on escape doors in accordance with EN 179

Exterior escutcheon	Round knob
Protection rating	0
Handle	U-shaped
Type of cylinder	Profile cylinder
spindle	9 mm
Material	Standard, brushed stainless steel
Mounting	Rose
DIN-direction	DIN left

	Order number	Product
	HA42S0000170000	Mounting set round rose 9 mm half spindle for door leaf thickness 37-50 mm with 9 mm half spindle for door leaf thickness 37-50 mm
	HA42S0000171000	Mounting set round rose 9 mm half spindle for door leaf thickness 51-60 mm with 9 mm half spindle for door leaf thickness 51-60 mm
	HA42S0000172000	Mounting set round rose 9 mm half spindle for door leaf thickness 61-70 mm with 9 mm half spindle for door leaf thickness 61-70 mm
	HA42S0000173000	Mounting set round rose 9 mm half spindle for door leaf thickness 71-80 mm with 9 mm half spindle for door leaf thickness 71-80 mm
	HA42S0000174000	Mounting set round rose 9 mm half spindle for door leaf thickness 81-90 mm with 9 mm half spindle for door leaf thickness 81-90 mm
	HA42S0000175000	Mounting set round rose 9 mm half spindle for door leaf thickness 91-100 mm with 9 mm half spindle for door leaf thickness 91-100 mm
