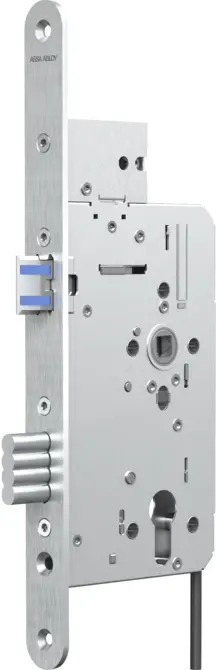

Standard panic lock N1105

with monitoring, with top lock

Product description

  • The OneSystem panic lock offers the same basic functions as the standard project locks. It offers an innovative design and a range of extended functions: The panic function ensures that the door can always be opened via the handle from the inside. The wide stile version is suitable for both single-leaf and double-leaf doors. For single-leaf panic doors with dead leaf, the OneSystem flush bolt can be used. The standard panic lock is suitable for universal use and can be fitted with a range of optional monitoring functions. It offers a variety of usage options, as it is available with the panic functions B, C, D, E and P. In combination with the OneSystem panic bars type A and type B, they fulfill the requirements in accordance with EN 1125. The requirements in accordance with EN 179 are fulfilled in combination with various handle Versions.

Overview of Advantages

  • Environmental product declaration (EPD) in accordance with EN 15804
  • Tested for 200,000 cycles and 300 kg door weight
  • Compliance with EN 179/EN 1125, EN 12209 and suitable for installation in fire doors.
  • Panic function inwards/outwards switchable
  • Optional: Bus system with integrated monitoring sensors and simplified connection via 5-wire cable
  • Latch, reversible between DIN left and right in new design for greater strength and with integrated noise reduction
  • Closed lock case
  • Optional: Bus System with integrated monitoring function
  • Deadbolt with anti-tampering design
  • Developed for Euro profile cylinder and Swiss round Profile cylinder
Technical data
Backset55, 60, 65, 80, 100 mm
Distance72 mm
ForendFlat face plate: F3 x 20 mm, F3 x 24 mm, R3 x 20 mm, R3 x 24 mm
Material face plateStainless steel
LatchDIN L/R (symmetrical face plate), DIN left or DIN right (asymmetrical face plate according to DIN 18251-1)
Bolt throw20 mm
Follower9 mm
StandardsEN 179, EN 1125, EN12209
Type of cylinderProfile cylinder
Suitable for fire doorsYes
MountingStandard panic lock
door systemSingle-leaf door
Forend length285 mm
MonitoringYes
Top lockYes
Self-locking systemNo
Door typeWood/steel wide style
Panic functionC
Functionsmechanical
Screw typeMortise lock
Fire protectionYes
Leaf typeActive door leaf
Variants that can be ordered
Order number
door system
Forend
Forend length
Top lock
Monitoring
Latch
N110521291*000XSingle-leaf doorR3 x 20 mm285 mmYesYesDIN L
N110531291*000XSingle-leaf doorR3 x 20 mm285 mmYesYesDIN R
N110541291*000GSingle-leaf doorR3 x 24 mm285 mmYesYesDIN L/R
N110541291*000WSingle-leaf doorR3 x 20 mm285 mmYesYesDIN L/R
