Flat strike plate 819ZBS

Chrome-plated steel / stainless steel, compatible with lock models 319N / 519N / 819N

Product description

  • 3-piece flat strike plate suitable for security locks multi-point lock
  • Material 2 mm striking plate: Stainless steel
  • Material 3 mm striking plate: Steel, chrome-plated
  • Material 6 mm striking plate: Steel, chrome-plated
  • Material 8 mm striking plate: Steel, chrome-plated

Note

  • All strike plates with a thickness of 2 mm as listed above are made of stainless steel. Strike plates with a thickness 3-8 are made of chrome-plated steel
Technical data
MountingFlat / square
DIN-directionL/R
Strike plate length210/330 mm
Variants that can be ordered
Order number
Article / Feature
819ZBS0212SBL00Strike plate 3-piece, 330/210mm - 2 mm, stainless steel
819ZBS0213SBL00Strike plate 3-piece, 330/210mm - 3 mm, chrome plated
819ZBS0216SBL00Strike plate 3-piece, 330/210mm - 6 mm, chrome plated
819ZBS0218SBL00Strike plate 3-piece, 330/210mm - 8 mm, chrome plated
Downloads for Product

General

Product sheet Flat strike plate 819ZBS (PDF)

Medias

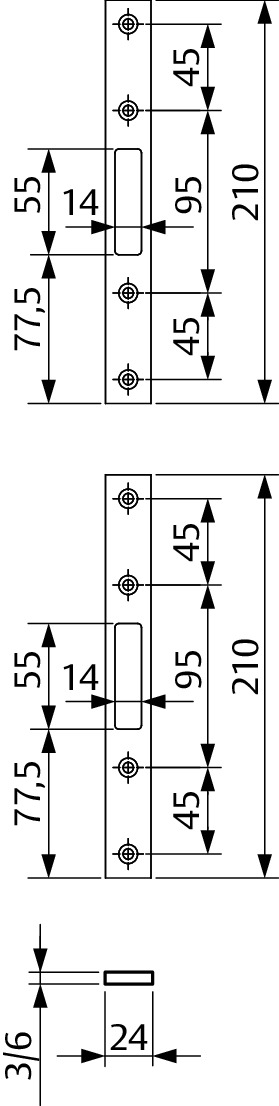

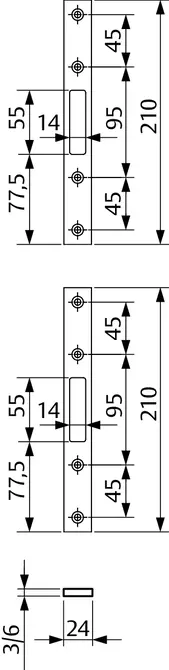

Technical drawing (JPG, 44 KB)
Technical drawing (EPS, 416 KB)
