Angled strike plate N6Z3W

suitable for multi-point locks N82xx / N84x1 / N84x2 (standard bolts)

  • ArtNo: N6Z3W-RT10E05-4
Technical data
Strike plate length185 mm
DIN directionLeft
Strike plate shapeR3 x 25/10 mm
Downloads for Product

General

Product sheet Angled strike plate N6Z3W (PDF)

Medias

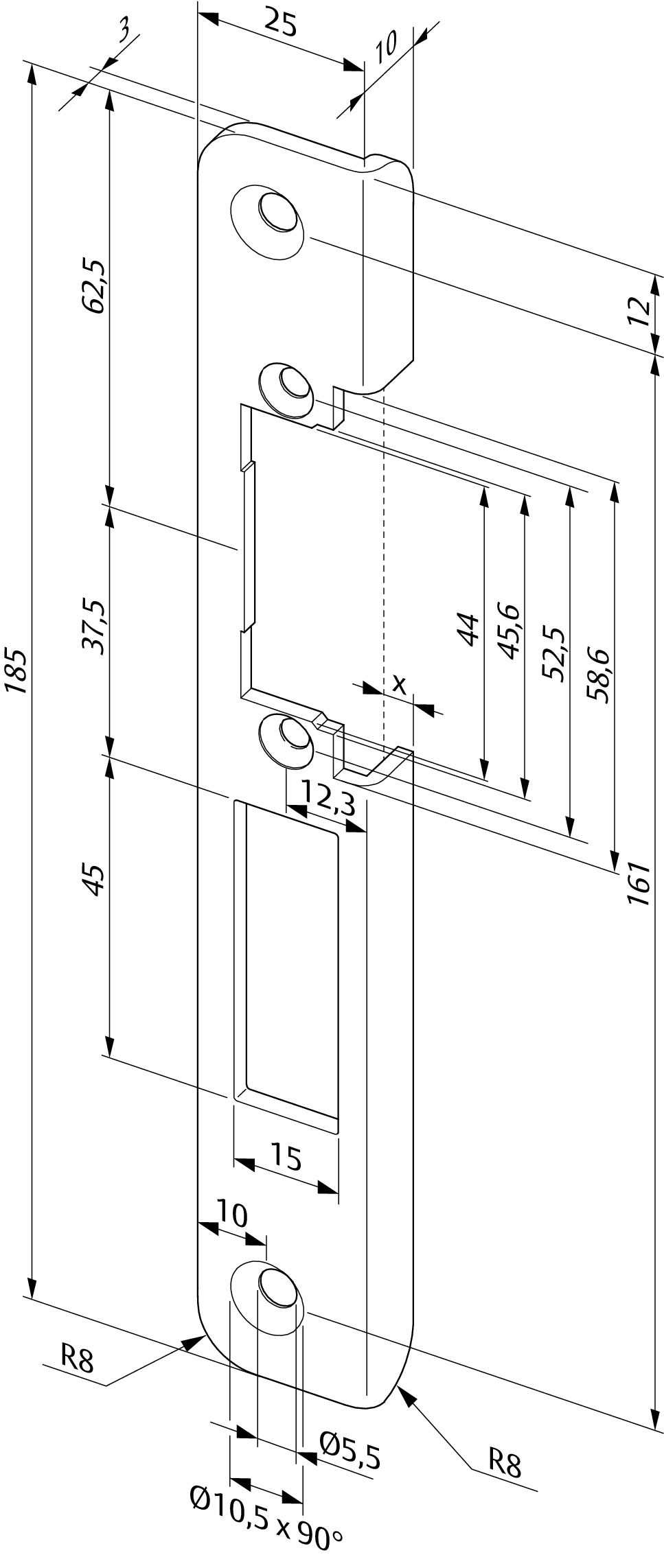

Technical drawing (JPG, 180 KB)
Technical drawing (EPS, 2.37 MB)
Downloads for Product Range

technical catalogue Solution Locks (PDF, 15.68 MB)
Sales brochure Solution Locks (PDF, 956 KB)
