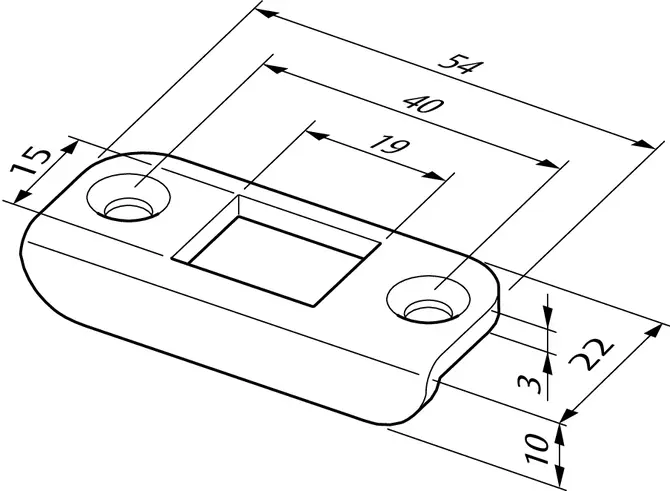

Angled strike plate N6T8Wsuitable for use with the snap lock N561FArtNo: N6T8W-R-10C07-1 Technical drawingTechnical dataDIN directionL/RStrike plate length54 mmStrike plate shapeR3 x 22/10 mmCloseDownloads for ProductGeneral Product sheet Angled strike plate N6T8W (PDF) Medias Technical drawing (JPG, 96 KB) Technical drawing (EPS, 2.15 MB) CloseDownloads for Product Range technical catalogue Solution Locks (PDF, 15.68 MB) Sales brochure Solution Locks (PDF, 956 KB) OneSystem door solutions (PDF, 2.29 MB) Architectural hardware (PDF, 5.54 MB) Close
