Angled strike plate N6T8W

suitable for use with the snap lock N561F

  • ArtNo: N6T8W-R-10E07-1
Technical data
DIN directionL/R
Strike plate length54 mm
Strike plate shapeR3 x 25/10 mm
Downloads for Product

General

Product sheet Angled strike plate N6T8W (PDF)

Medias

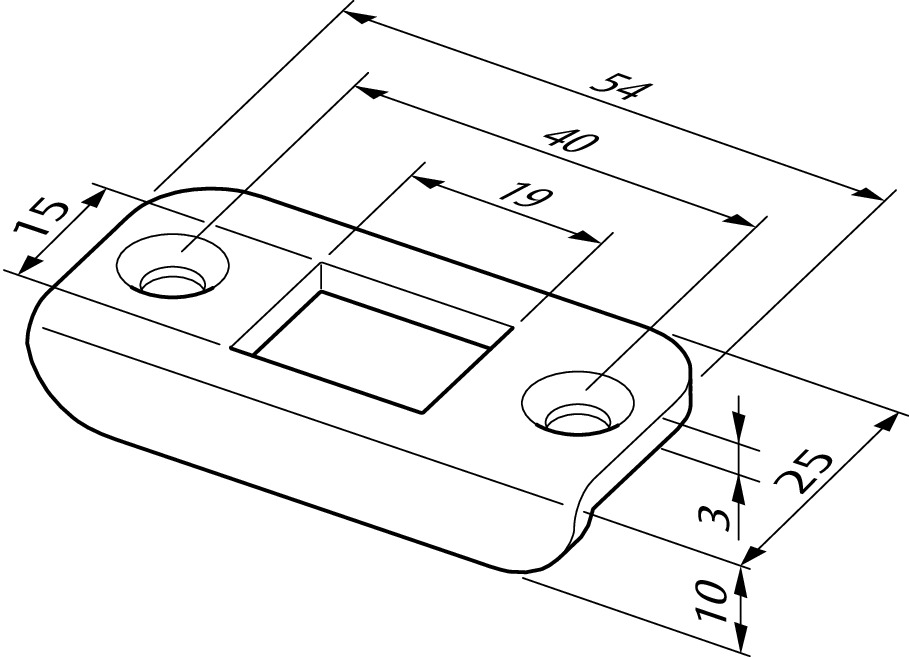

Technical drawing (JPG, 97 KB)
Technical drawing (EPS, 2.15 MB)
Downloads for Product Range

technical catalogue Solution Locks (PDF, 15.68 MB)
Sales brochure Solution Locks (PDF, 956 KB)
OneSystem door solutions (PDF, 2.29 MB)
Architectural hardware (PDF, 5.54 MB)
