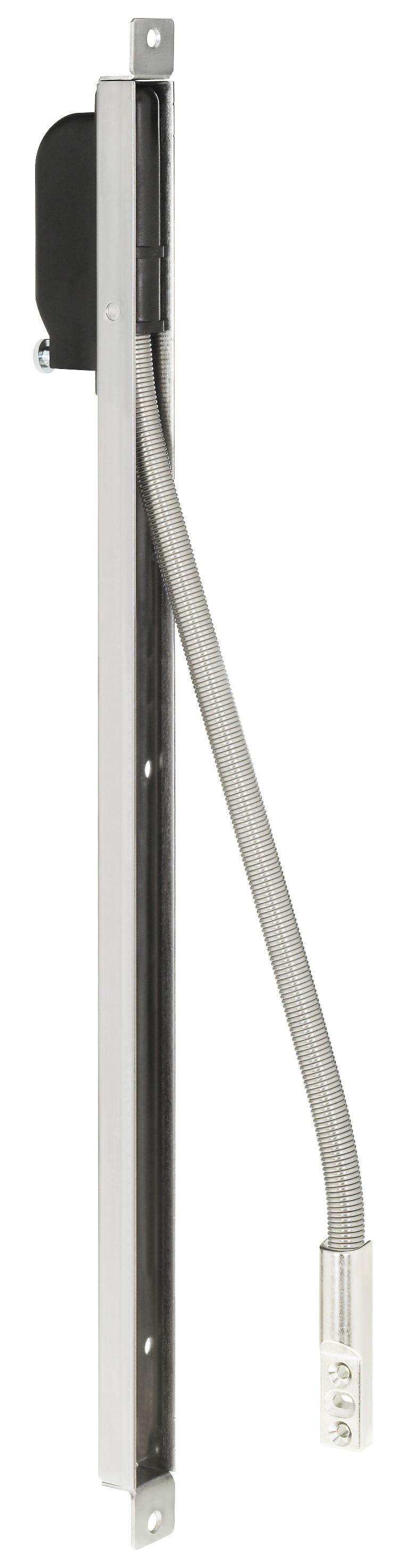

Concealed cable Transition 10312-20
Long version
Product description
- The concealed cable transition enables supply feed cables to be fed from the door frame to the door leaf safely and securely. Due to its concealed fitting in the door rebate, the supply cable is not accessible when the door is closed and is thus secure agains
Scope of delivery
- Lead cover
Note
- Long version
| Version | Cable guide |
| Material installation casing | Stainless steel |
| Material spiral hose | Stainless steel |
| Max. cable diameter | 7 mm |
| Max. permissible horizontal rotation | 200 mm |

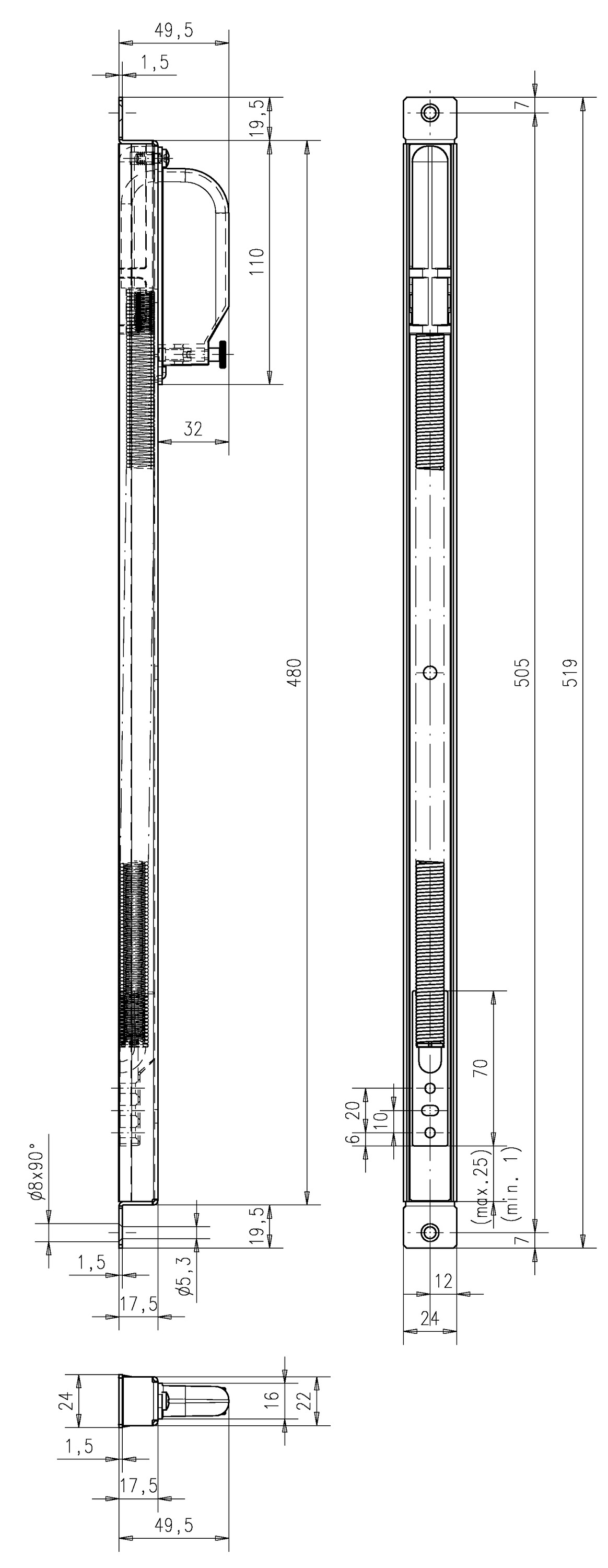

| Length installation casing / cable housing | 519 mm / 110 mm |
| Width installation casing / cable housing | 24 mm / 16 mm |
| Depth installation casing / cable housing | 17,5 mm / 32 mm |
