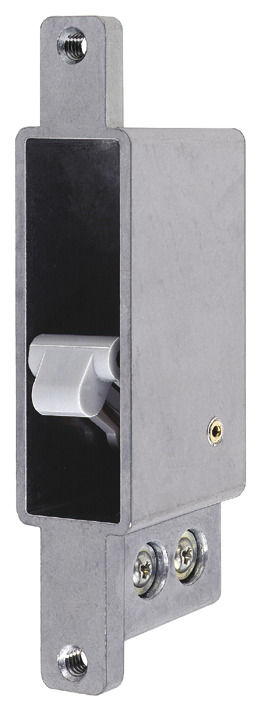

Bolt switch contact

Without strike plate; with 4 meter connecting cable

  • ArtNo: 875-10-------00
  • EAN: 4042203148444

Product description

Due to the closed design of the housing, the dead bolt cutout is closed at the back as a special feature for steel frames and profiles. The profile interior is not visible. The dead bolt switch contact is first installed on the striking plate, then the strike plate will be fixed on the frame.

Overview of Advantages

  • The profile interior is not visible

Scope of delivery

  • Bolt switch contact

Note

  • Without strike plate
Technical data
Max. switching voltage25 V AC/DC
Switching contactChange-over contact
Dead bolt penetration18 mm
Class of protectionIP 54
Response path4 mm
Connecting cable4 m
Max. switching current2 A
