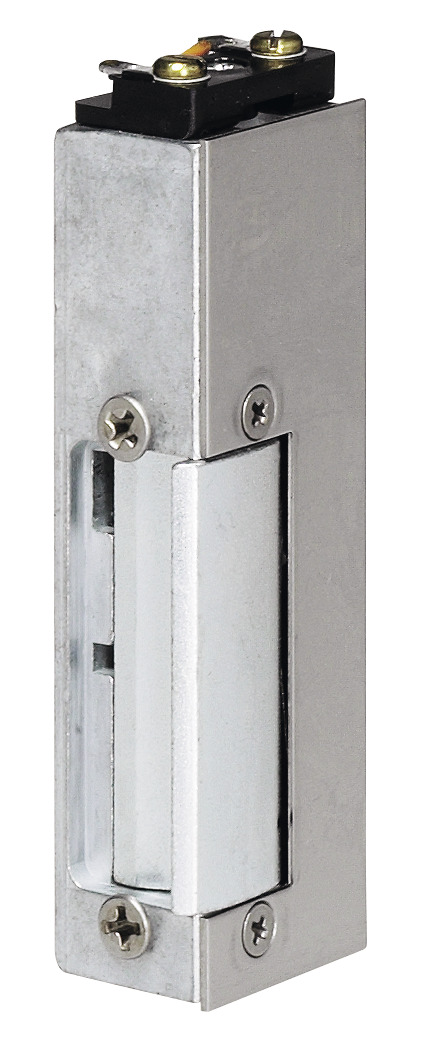

Electric strike 14S
Product description
Model with reversible design. The advantage lies in the fact that the connection also points upwards in the DIN-right version. This means the cable conduit is not near the deadbolt.
Overview of Advantages
- The minimum gap between the keeper and casing lower surface enables DL and DR designs to be combined with locks which contain a minimum latch deadbolt clearance.
- For striking plates with minimum latch deadbolt clearance
- Suitable for all common striking plates
- Can be combined with striking plates with latch bolt guide (standard) without FaFix®
Fail-locked | Yes |
Break-in resistance | 6500 N |
Height | 90 mm |
Width | 20.5 mm |
Depth | 28 mm |
Operating temperature range | -15 °C to +40 °C |
Installation position | Vertical |
Material housing | Zinc die-cast |
Latch material | Steel |
Order number | Description |
---|---|
14S---------D14 | Without strike plate, 6-12 V AC/DC |
14S---------D15 | Without strike plate, 6-12 V AC/DC |
14S---------R14 | Without face plate, 8-16 V AC/DC |
14S---------R15 | Without face plate, 8-16 V AC/DC |
14S---------F14 | Without face plate, 24 V AC/DC |
14S---------F15 | Without face plate, 24 V AC/DC |
14S---------E34 | Without striking plate, 12 V DC electric unlocking |
14S---------E35 | Without striking plate, 12 V DC electric unlocking |
14S---------F34 | Without striking plate, 24 V DC electric unlocking |
14S---------F35 | Without striking plate, 24 V DC electric unlocking |
