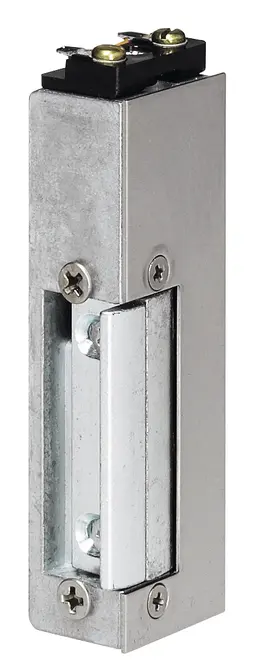

Electric strike 14SFF
Product description
Model with reversible design. The advantage of this design is that the connection also points upwards in the DIN right version. This means the cable conduit is not placed near the deadbolt. Adjustable FaFix® latch which features keeper alignment.
Overview of Advantages
- The minimum gap between the keeper and casing lower surface enables DL and DR designs to be combined with locks which contain a minimum latch deadbolt clearance.
- For striking plates with minimum latch deadbolt clearance
- Can be combined with striking plates with latch bolt guide (standard) without FaFix®
Adjustable keeper (FF, FaFix®) | Yes |
Fail-locked | Yes |
Break-in resistance | 4000 N |
Height | 104 mm |
Width | 20.5 mm |
Depth | 28 mm |
Operating temperature range | -15 °C to +40 °C |
Installation position | Vertical |
Material housing | Zinc die-cast |
Latch material | Zinc die-cast |
Material screw-on attachment | Zinc die-cast |
Order number | Description |
---|---|
14SFF-------D14 | Without strike plate, 6-12 V AC/DC |
14SFF-------D15 | Without strike plate, 6-12 V AC/DC |
14SFF-------R14 | Without face plate, 8-16 V AC/DC |
14SFF-------R15 | Without face plate, 8-16 V AC/DC |
14SFF-------F14 | Without face plate, 24 V AC/DC |
14SFF-------F15 | Without face plate, 24 V AC/DC |
14SFF-------E34 | Without striking plate, 12 V DC electric unlocking |
14SFF-------E35 | Without striking plate, 12 V DC electric unlocking |
14SFF-------F34 | Without striking plate, 24 V DC electric unlocking |
14SFF-------F35 | Without striking plate, 24 V DC electric unlocking |
14SFF-------C34 | Without striking plate, 8V DC electric unlocking |
14SFF-------C35 | Without striking plate, 8V DC electric unlocking |
