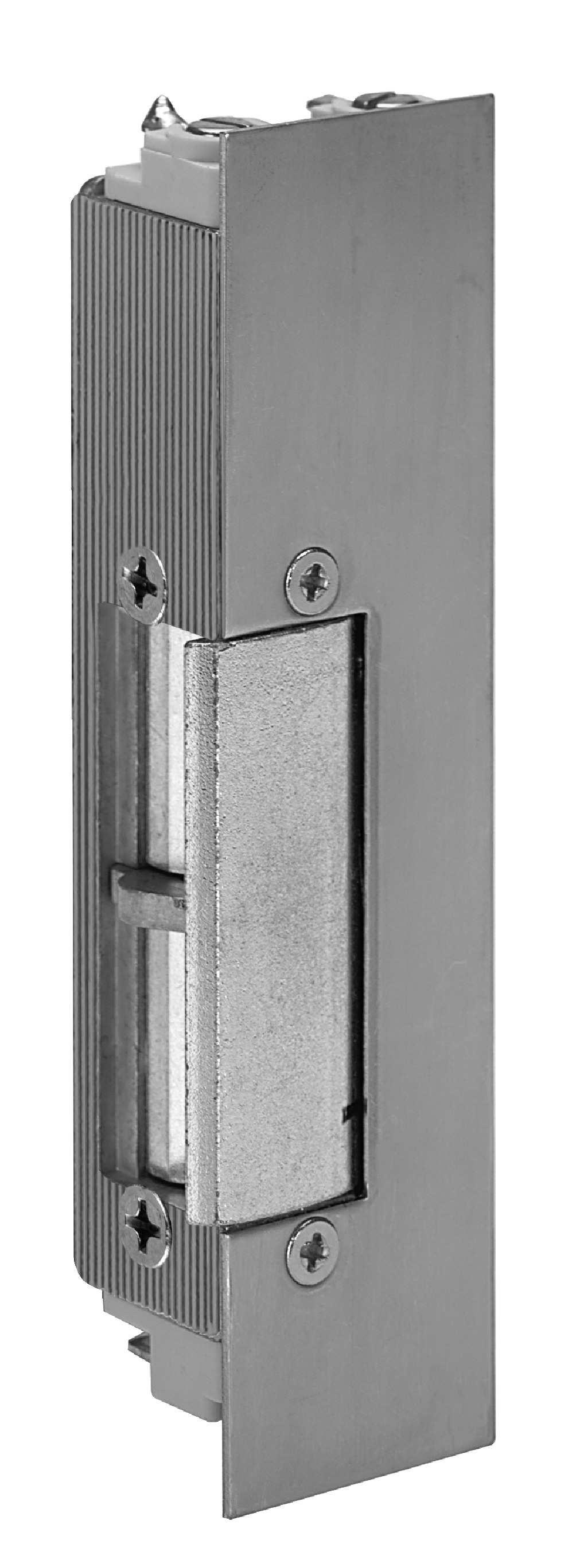

Electric strike 1405RRF
Product description
Model with recovery diode for access control systems. Monitoring contact as potential-free changeover contact. This is actuated via a latch bolt lever. Door strike can be adjusted in the striking plate, thus making installation work a great deal easier.
Overview of Advantages
- The universal strike in a solid design
- Suitable for all common striking plates
- Can be combined with striking plates with latch guide (model St.)
- Reversible design = DIN right (DR=5)
| Adjustable electric strike (F, Fix®) | Yes |
| Monitoring contact (RR) | Yes |
| Diode (05) | Yes |
| Fail-locked | Yes |
| Break-in resistance | 5000 N |
| Height | 112 mm |
| Width | 20.5 mm |
| Depth | 28 mm |
| Operating temperature range | -15 °C to +40 °C |
| Installation position | Vertical and horizontal |
| Material housing | Zinc die-cast |
| Latch material | Steel |
| Order number | Description |
|---|---|
| 1405RRF-----E31 | Without striking plate, 12 V DC electric unlocking |
| 1405RRF-----F31 | Without striking plate, 24 V DC electric unlocking |
