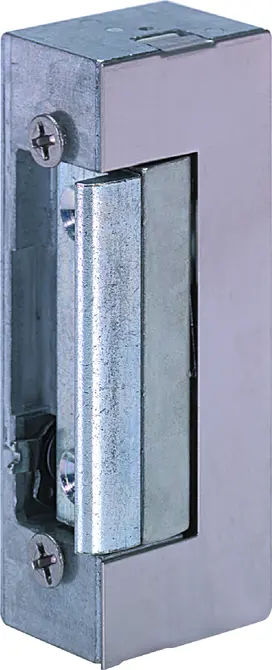

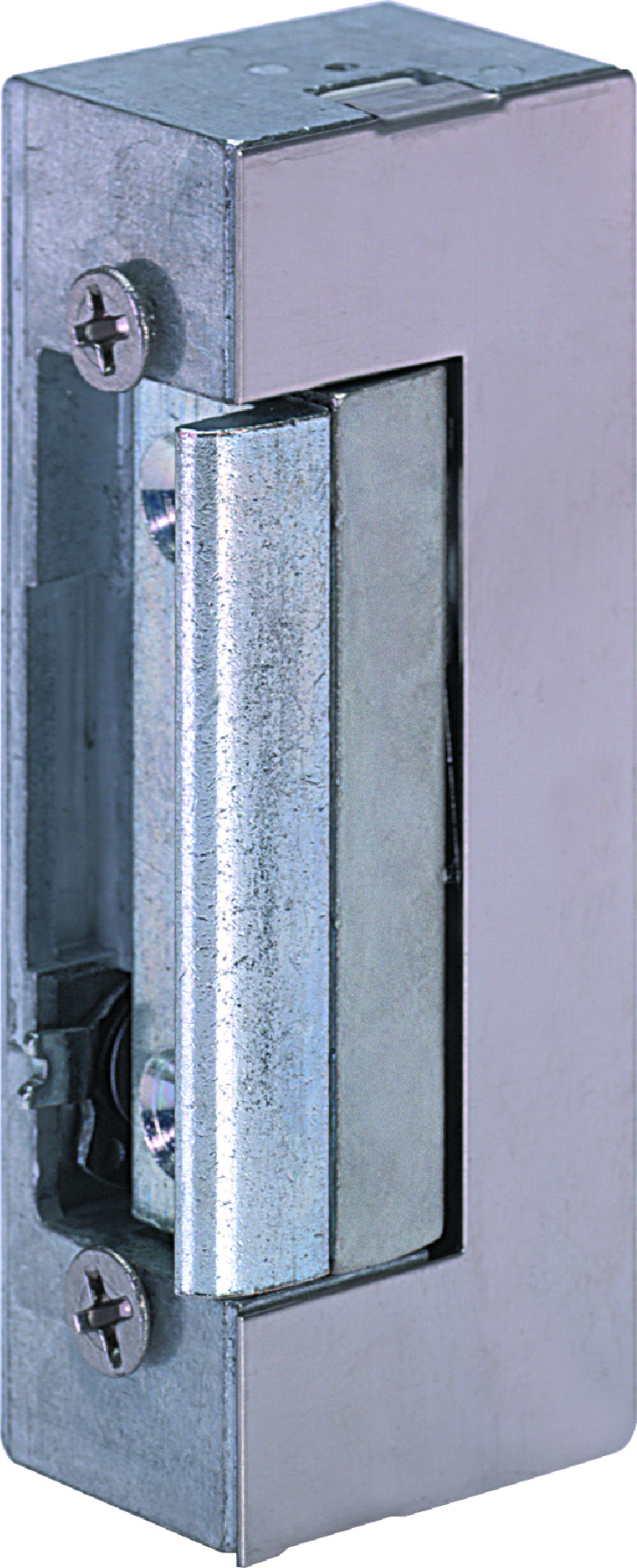

Electric strike 17E

Product description

Model with mechanical unlocking.

Overview of Advantages

  • Suitable for all common striking plates
  • Due to 180° fitting, can be used DIN right and left
  • Symmetrical design
Technical data
Adjustable keeper (FF, FaFix®)Yes
Mechanical unlocking (E)Yes
Fail-lockedYes
Break-in resistance3500 N
Height75 mm
Width20.5 mm
Depth28 mm
Operating temperature range-15 °C to +40 °C
Variants that can be ordered
Order number
Description
17E---------D11Without strike plate, 6-12 V AC/DC
17E---------R11Without face plate, 8-16 V AC/DC
17E---------F11Without face plate, 24 V AC/DC
17E---------E41Without striking plate, 12V DC 100%ED
17E---------F41Without striking plate, 24V DC 100%ED
17E---------C4117E WITHOUT FACEPLATE
17E WITHOUT FACEPLATE
