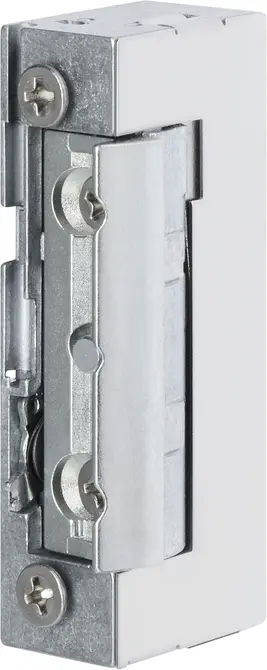

Electric strike 128E505-----A71

Without striking plate, 12-24V AC/DC

  • ArtNo: 128E505-----A71
  • EAN: 4042203808997

Product description

Model with mechanical unlocking (daytime unlocking), bipolar protective diode and screw holes offset by 1 mm.

Overview of Advantages

  • Radius keeper, FaFix®, adjustable by 3 mm
  • Mechanical unlocking (daytime unlocking)
  • Voltage range
  • Compatible with current mortise locks
  • Optimal latch ramps for gentle interaction with the latch bolt
  • Symmetrical design. DIN left/right as well as horizontal applicable

Scope of delivery

  • 1 piece electric strike
Technical data
DIN-directionuniversal
10-24 V AC/DC
Mechanical unlocking (E)Yes
Fail-lockedYes
Hold-open functionYes
Bi-directional diodeYes
Drill hole offset by 1 mmYes
Continuous duty11-13 V DC
Rated resistance43 Ohm
Current consumption 12 V DC280 mA
Current consumption 24 V AC500 mA
Current consumption 24 V DC560 mA
Current consumption 12 V AC250 mA
Load cycles for in-plant test250000
Installation positionVertical and horizontal
Operating temperature range-15 °C to +40 °C
Break-in resistance3750 N
Height66 mm
Suitable for fire doorsNo
Depth26 mm
Latch bolt engaging depth5.5 mm
Width16 mm
FaFix® adjustment range3 mm
Max. preload 12 V DC (stabilised)50 N
Max. preload 24 V DC (stabilised)200 N
Max. preload 12 V AC200 N
Max. preload 24 V AC> 350 N
