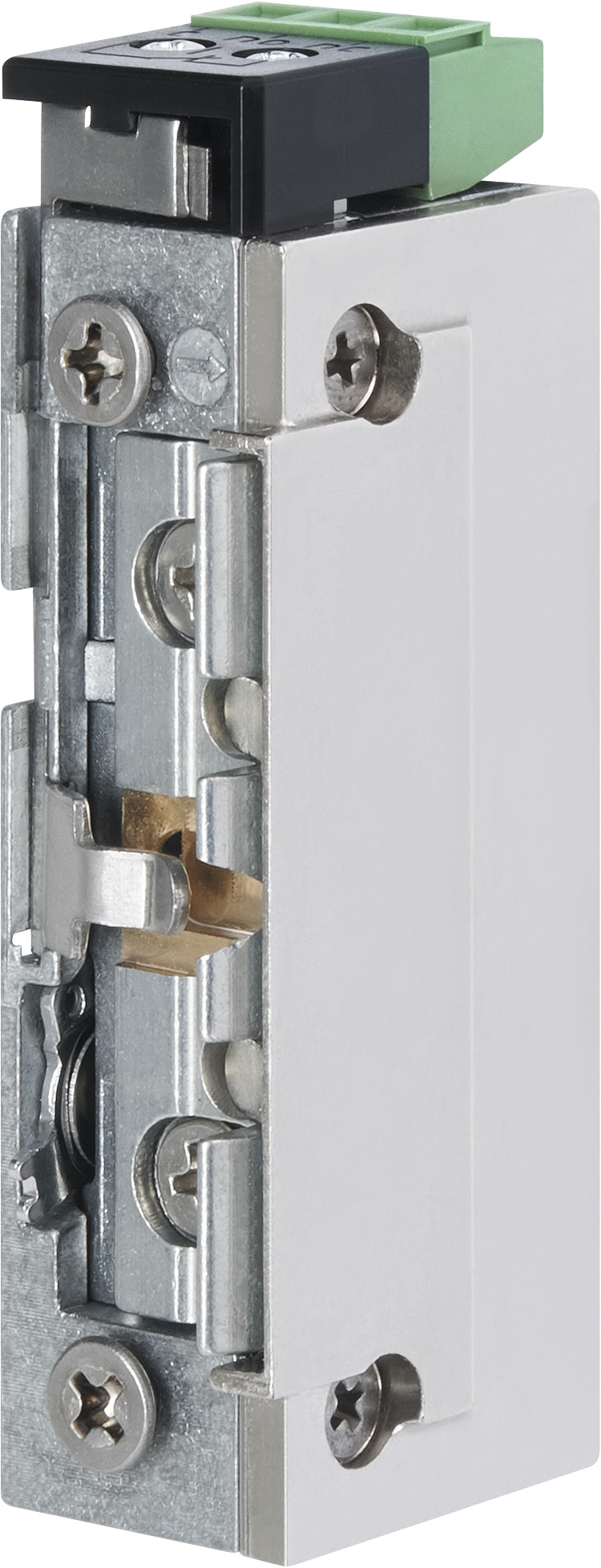

Electric strike 118E.63

Without strike plate

Product description

Model with bipolar protective diode. Monitoring contact as potential-free changeover contact, actuated by the latch bolt. This model can also be permanently unlocked mechanically (daytime unlocking).

Overview of Advantages

  • Radius keeper, FaFix®, adjustable by 3 mm
  • Voltage range
  • Compatible with current mortise locks
  • Compatible with ProFix® 2 strike plates
  • Optimal latch ramps for gentle interaction with the latch bolt
  • Symmetrical design. DIN left/right as well as horizontal applicable

Scope of delivery

  • 1 piece electric strike

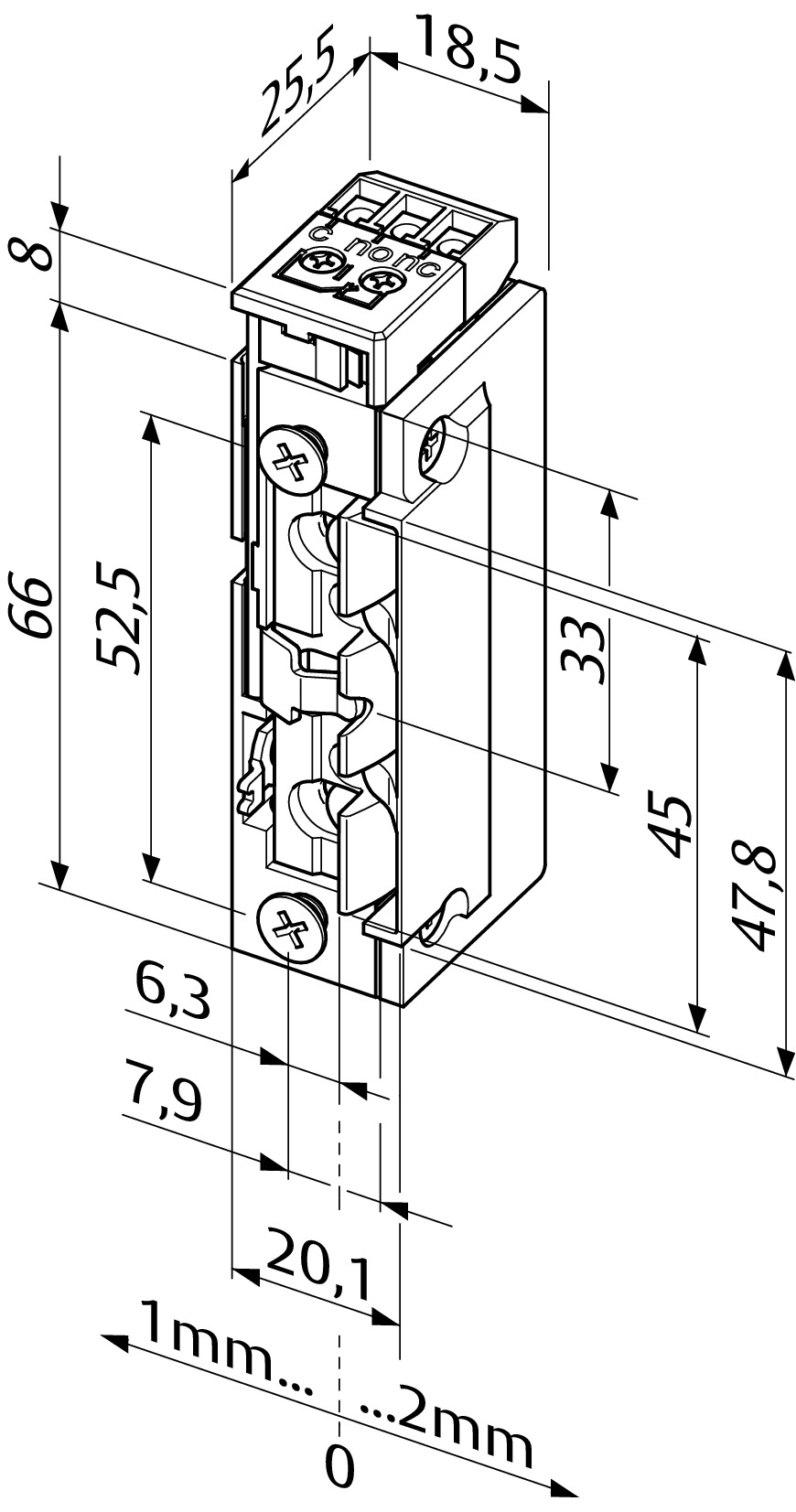

Technical data
Mechanical unlocking (E)Yes
Fail-lockedYes
Bi-directional diodeYes
Switching capacity - monitoring contact24 V / 1 A
Load cycles for in-plant test250000
Installation positionVertical and horizontal
Operating temperature range-15 °C to +40 °C
Break-in resistance3750 N
Height74 mm
Suitable for fire doorsNo
Depth26 mm
Latch bolt engaging depth5.5 mm
Width20.1 mm
FaFix® adjustment range3 mm
Variants that can be ordered
Order number
Description
118E.63-----A71Without striking plate, 12-24V AC/DC
118E.63-----B71Without striking plate, 22-42 V AC/DC
