Electric strike 118.15------A71
Without striking plate, 12-24V AC/DC
Product description
Model with basic equipment.
Overview of Advantages
- Radius keeper, FaFix®, adjustable by 3 mm
- Voltage range
- Compatible with current mortise locks
- Optimal latch ramps for gentle interaction with the latch bolt
- Symmetrical design. DIN left/right as well as horizontal applicable
Scope of delivery
- 1 piece electric strike
| DIN direction | universal |
| Electric strike voltage | 10-24 V AC/DC |
| Fail-locked | Yes |
| Continuous duty | 11-13 V DC |
| Rated resistance | 43 Ohm |
| Current consumption 12 V DC | 280 mA |
| Current consumption 24 V AC | 500 mA |
| Current consumption 24 V DC | 560 mA |
| Current consumption 12 V AC | 250 mA |
| Load cycles for in-plant test | 250000 |
| Installation position | Vertical and horizontal |
| Operating temperature range | -15 °C to +40 °C |
| Break-in resistance | 3750 N |

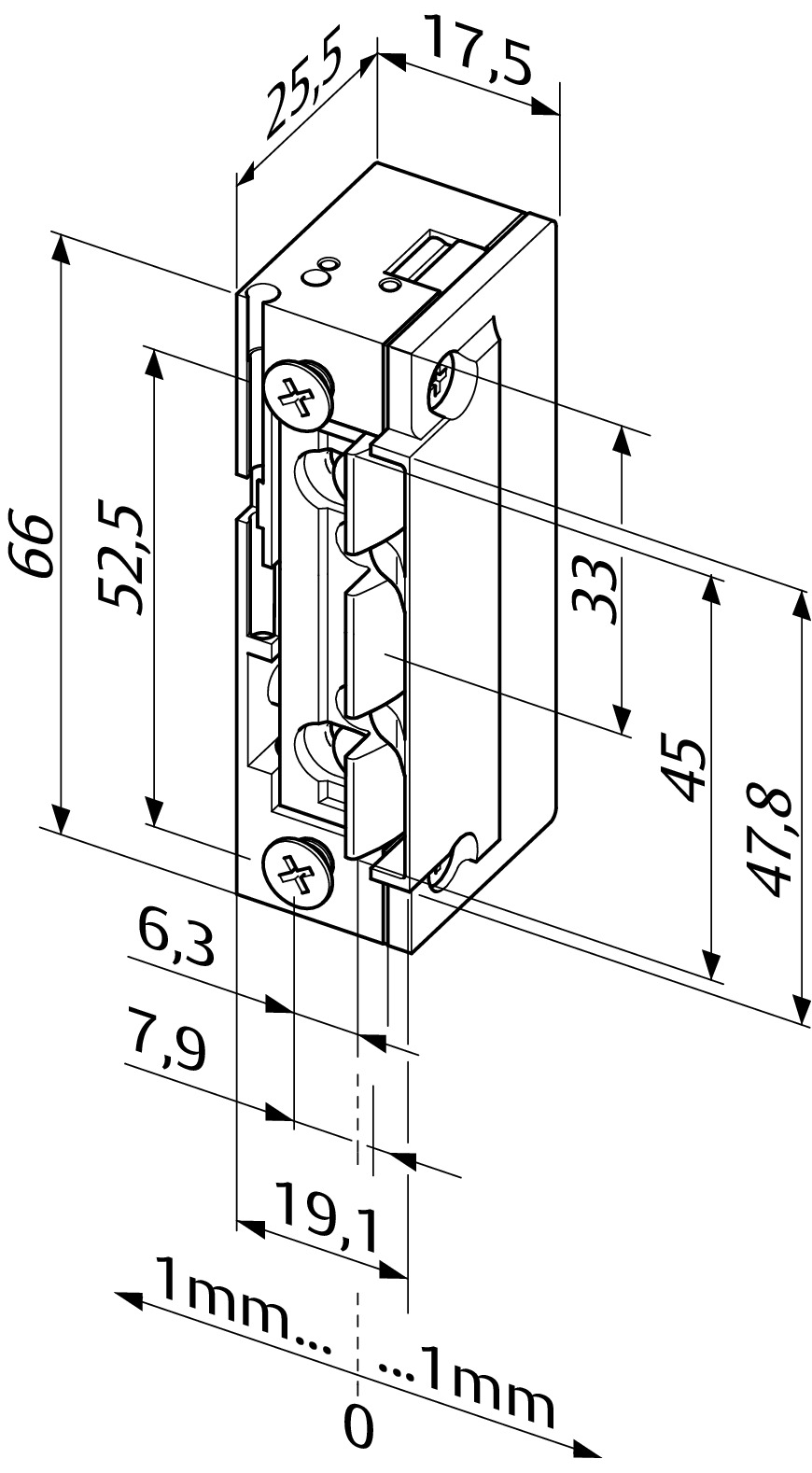

| Height | 66 mm |
| Suitable for fire doors | No |
| Depth | 25.5 mm |
| Latch bolt engaging depth | 5.5 mm |
| Width | 19.1 mm |
| FaFix® adjustment range | 2 mm |
| Max. preload 12 V DC (stabilised) | 50 N |
| Max. preload 24 V DC (stabilised) | 200 N |
| Max. preload 12 V AC | 200 N |
| Max. preload 24 V AC | > 350 N |
