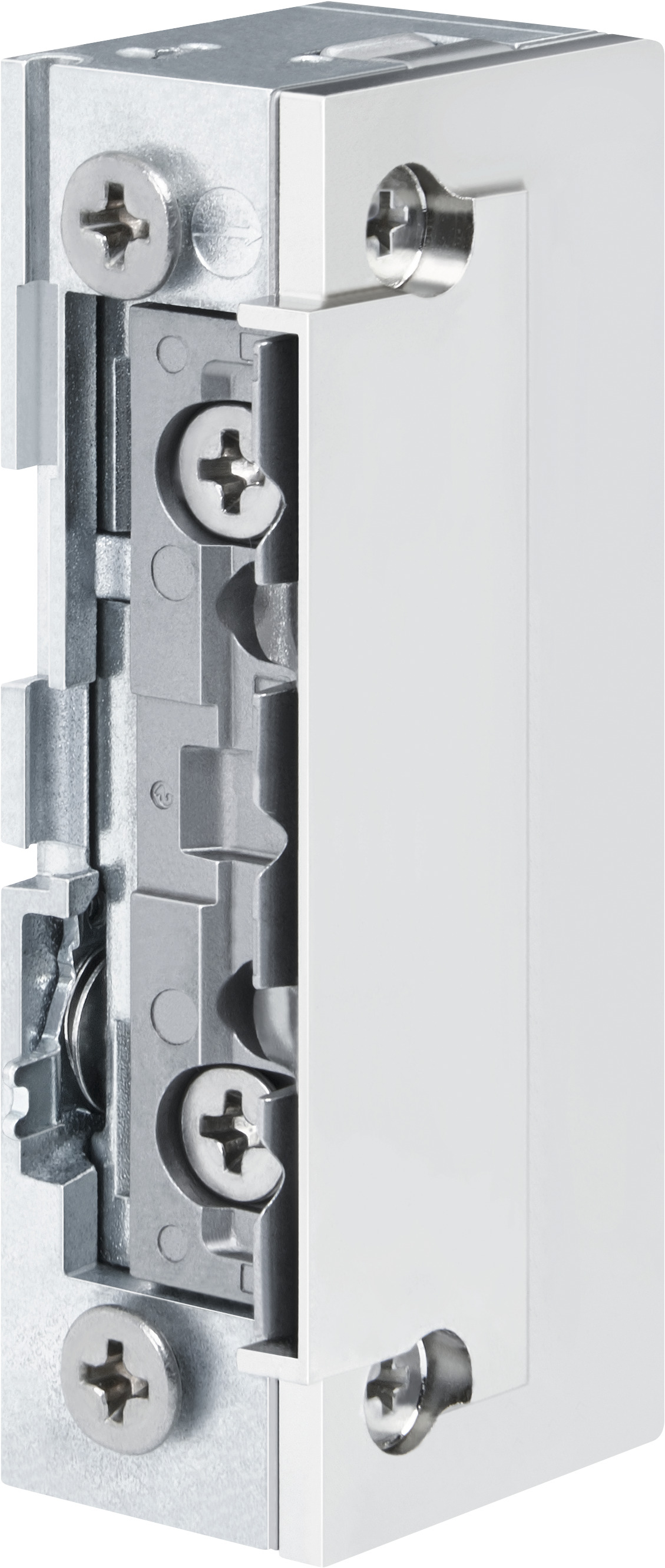

Electric strike 118E400
Product description
Model with mechanical unlocking.
FaFix screw-on attachment made of steel. For 1 mm lower door seal pressure compared to model 118E.13.
Overview of Advantages
- Radius keeper, FaFix®, adjustable by 3 mm, screw-on attachment made of steel
- Voltage range
- Compatible with current mortise locks
- Compatible with existing ProFix® 2 striking plates
- Optimal latch ramps for gentle interaction with the latch bolt
- Symmetrical design. DIN left/right as well as horizontal applicable
| Adjustable keeper (FF, FaFix®) | Yes |
| Mechanical unlocking (E) | Yes |
| Fail-locked | Yes |
| Break-in resistance | 3750 N |

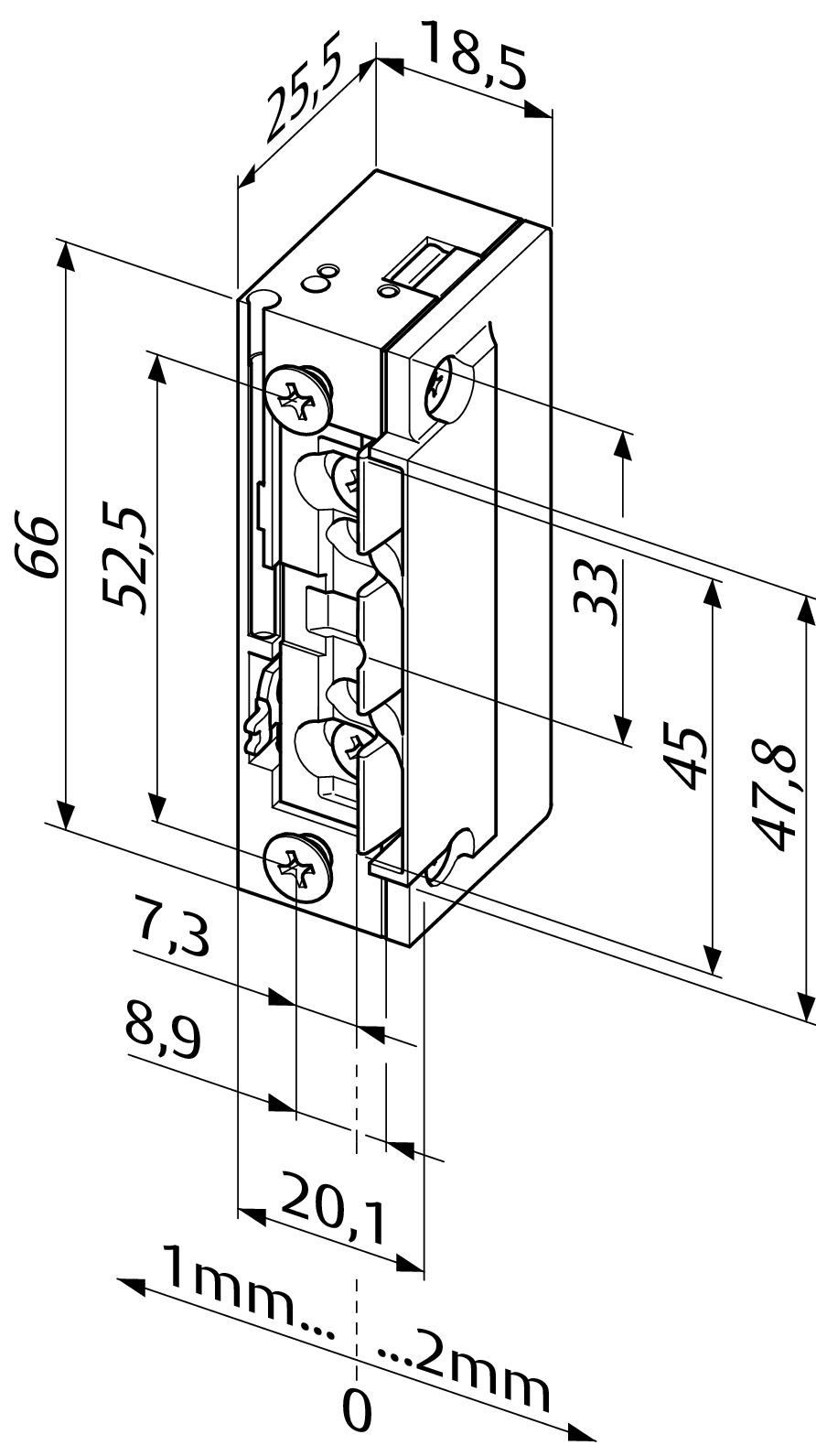

| Height | 66 mm |
| Width | 20.1 mm |
| Depth | 25.5 mm |
| FaFix® adjustment range | 3 mm |
| Latch bolt engaging depth | 5 mm |
| Operating temperature range | -15 °C to +40 °C |
| Installation position | Vertical and horizontal |
| Load cycles for in-plant test | 250000 |
| Suitable for fire doors | No |
| Order number | Description |
|---|---|
| 118E400-----A71 | Without striking plate, 12-24V AC/DC |
| 118E400-----B71 | Without striking plate, 22-42 V AC/DC |
| 118E400-----D11 | Without strike plate, 6-12 V AC/DC |
