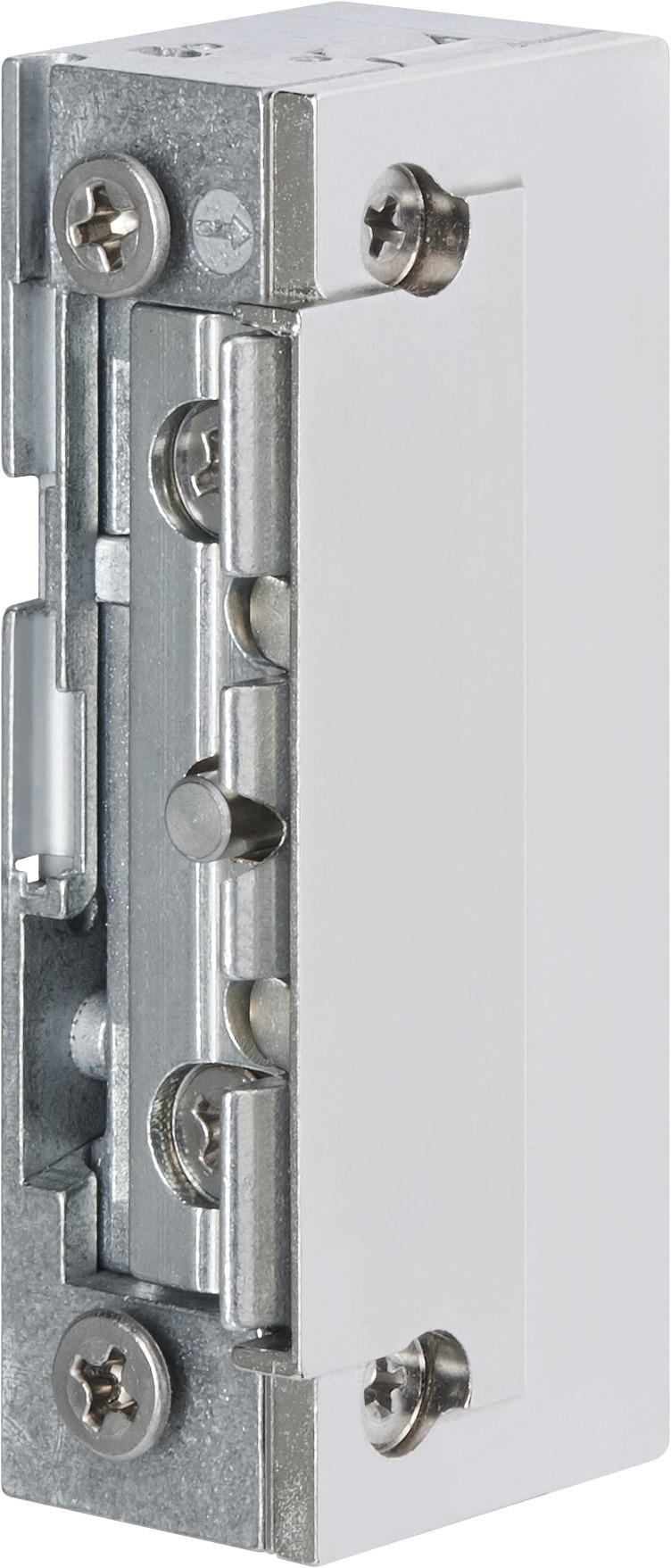

Electric strike 128.53
Without strike plate
Product description
Model with bipolar protective diode.
Overview of Advantages
- Radius keeper, FaFix®, adjustable by 3 mm
- Voltage range
- Compatible with current mortise locks
- Compatible with ProFix® 2 strike plates
- Optimal latch ramps for gentle interaction with the latch bolt
- Symmetrical design. DIN left/right as well as horizontal applicable
Scope of delivery
- 1 piece electric strike
| Fail-locked | Yes |
| Hold-open function | Yes |
| Bi-directional diode | Yes |
| Load cycles for in-plant test | 250000 |
| Installation position | Vertical and horizontal |
| Operating temperature range | -15 °C to +40 °C |
| Break-in resistance | 3750 N |

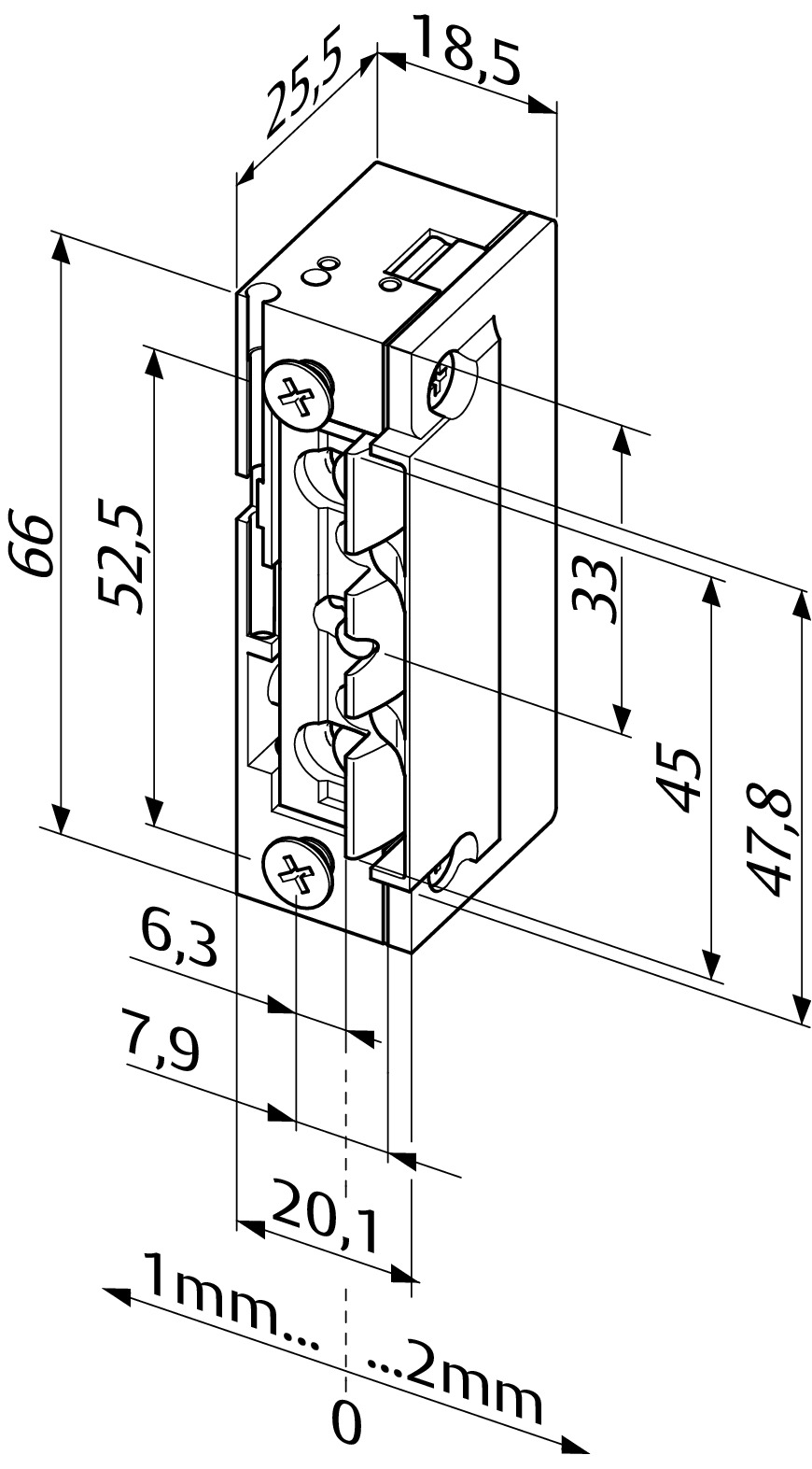

| Height | 66 mm |
| Suitable for fire doors | No |
| Depth | 26 mm |
| Latch bolt engaging depth | 5.5 mm |
| Width | 20.1 mm |
| FaFix® adjustment range | 3 mm |
| Order number | Description |
|---|---|
| 128.53------A71 | Without striking plate, 12-24V AC/DC |
| 128.53------B71 | Without striking plate, 22-42 V AC/DC |
