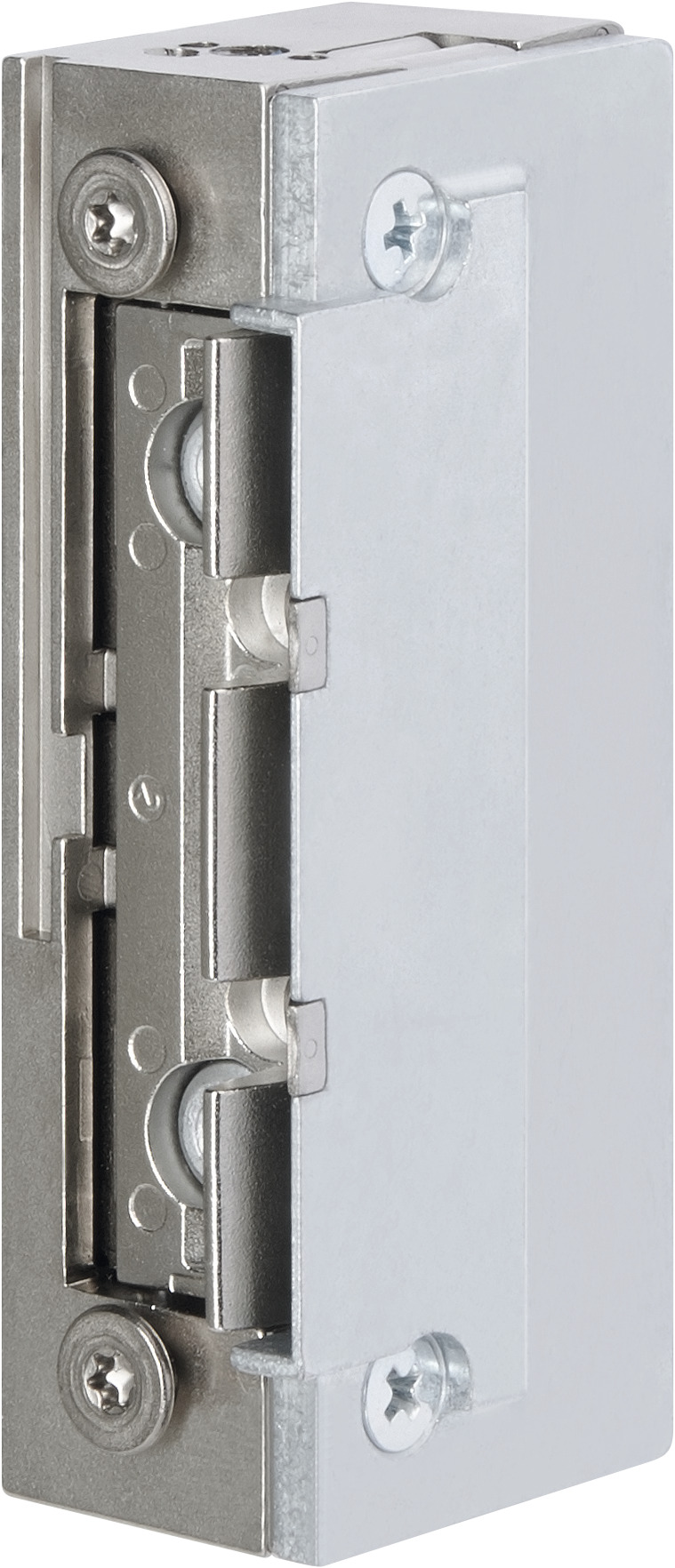

Electric strike 118F.13

Product description

Model with basic equipment. Suitable for fire rated doors.

Also useable as a heavy-duty electric strike.

Overview of Advantages

  • Radius keeper, FaFix®, adjustable by 3 mm
  • Voltage range
  • Compatible with DIN 18250 mortise locks
  • Compatible with ProFix® 2 strike plates
  • Optimal latch ramps for gentle interaction with the latch bolt
  • Symmetrical design. DIN left/right as well as horizontal applicable
  • Bipolar diode
Technical data
Adjustable keeper (FF, FaFix®)Yes
Fail-lockedYes
Bi-directional diodeYes
Break-in resistance9000 N

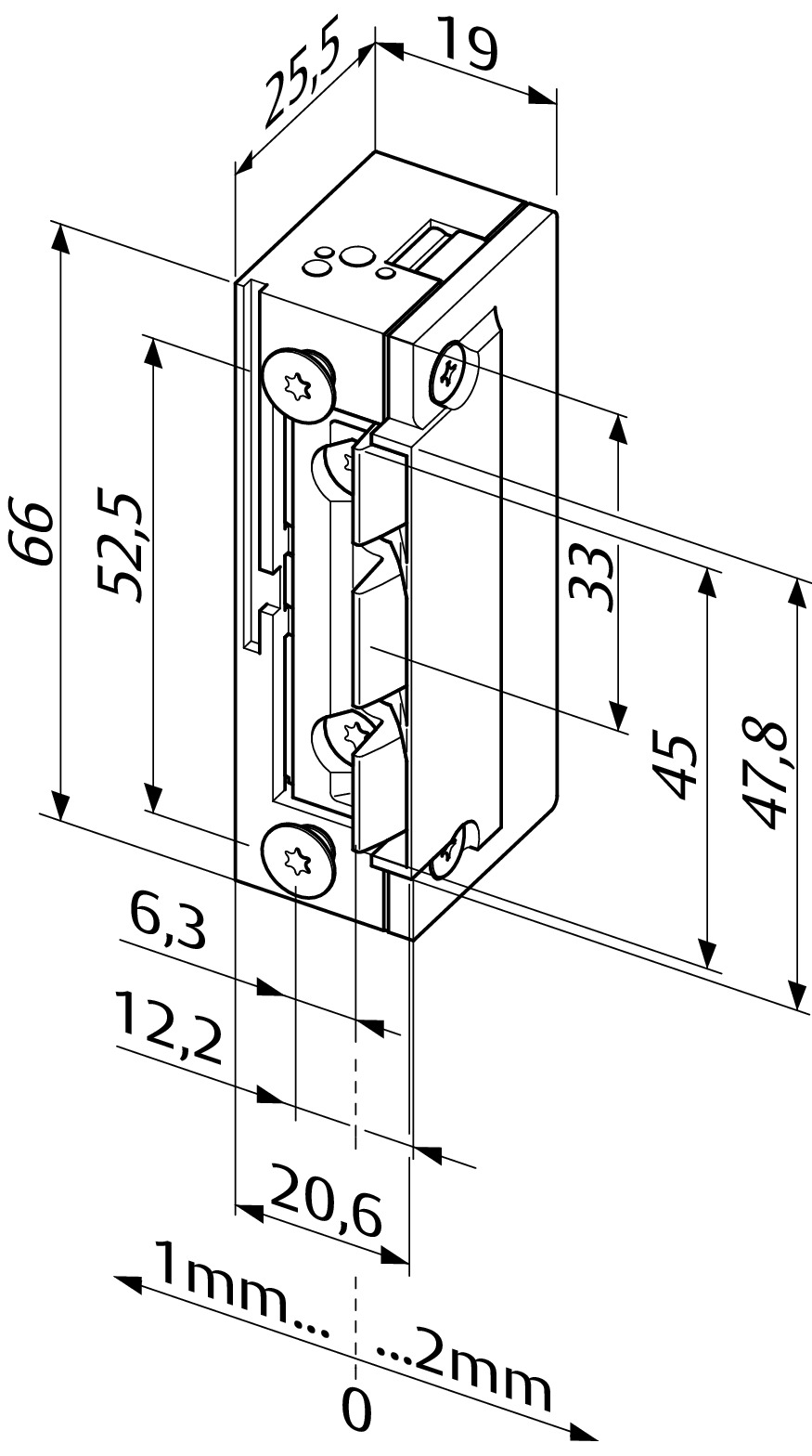

Height66 mm
Width20.1 mm
Depth25.5 mm
FaFix® adjustment range3 mm
Latch bolt engaging depth6 mm
Operating temperature range-15 °C to +40 °C
Load cycles for in-plant test250000
Installation positionVertical and horizontal
Suitable for fire doorsYes
Certified in compliance withEN 14846:2008
Variants that can be ordered
Order number
Description
118F.13-----A71Without striking plate, 12-24V AC/DC
118F.13-----B71Without striking plate, 22-42 V AC/DC
