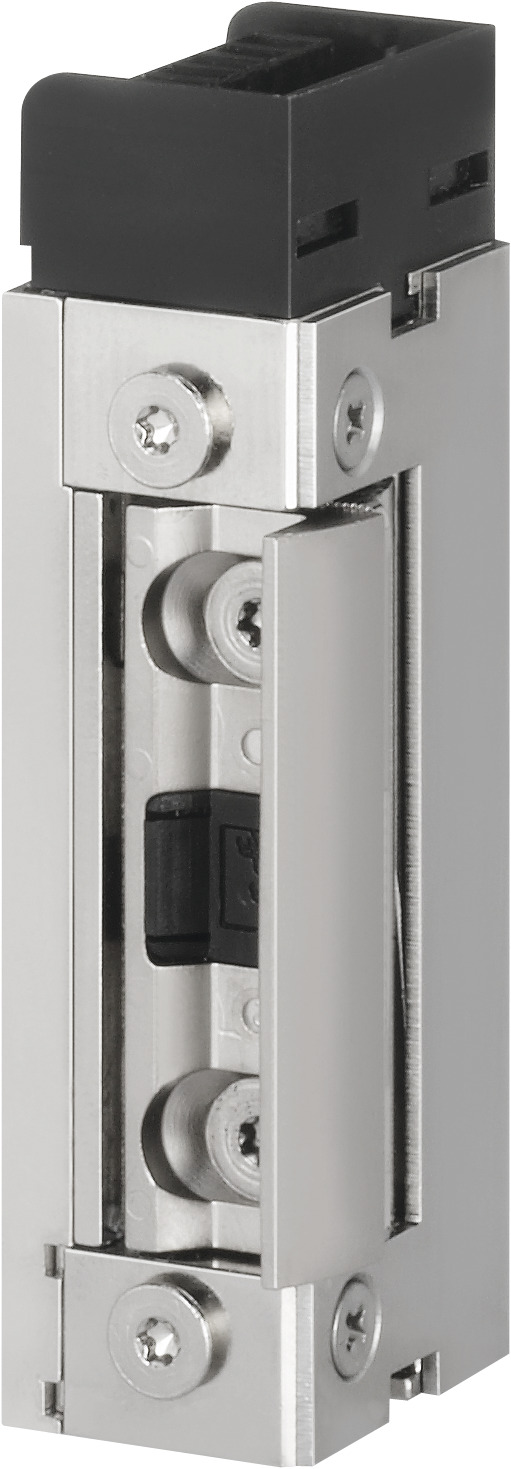

Electric strike 143

Product description

Model with basic equipment. Also useable as a heavy-duty electric strike.

Overview of Advantages

  • Radius keeper, FaFix®, adjustable by 4 mm
  • 12-24 Volt voltage range for AC and DC operation
  • New connection technology, can be replugged
  • Resistant to continuous current across the entire voltage range
  • All models can be fitted as required (right/left/horizontally)
  • Integrated surpressor diode
  • Compatible with Model Range 142U
  • Preload modes 400N or 800N can be set
Technical data
Adjustable keeper (FF, FaFix®)Yes
Fail-lockedYes
TVS diodeYes
Changeable connectionYes
Max. pre-load400 N / 800 N
Break-in resistance8000 N

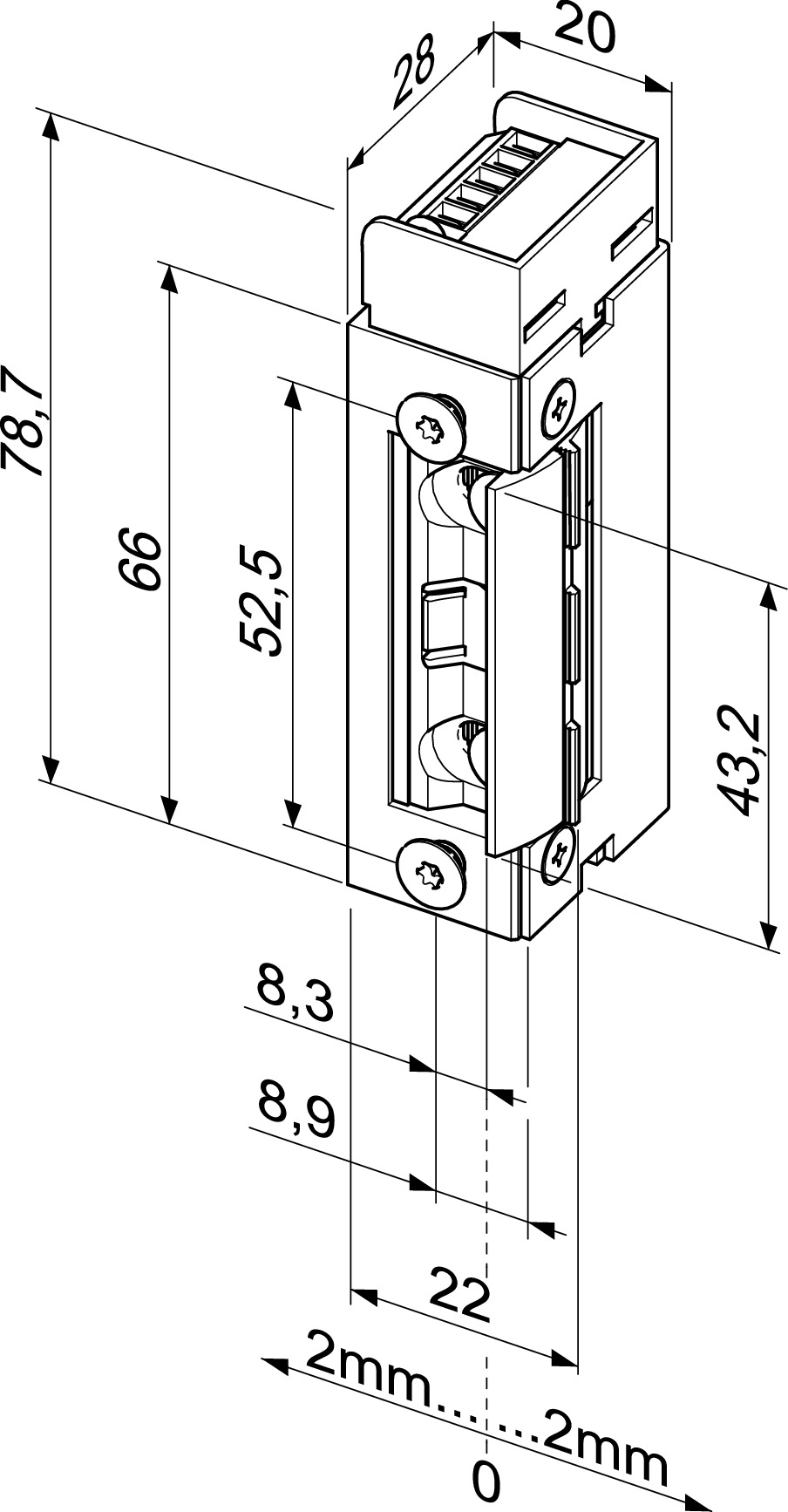

Height79 mm
Width20 mm
Depth28 mm
FaFix® adjustment range4 mm
Latch bolt engaging depth6 mm
Operating temperature range-15 °C to +40 °C
Continuous function load cycles200000
Load cycles for in-plant test500000
Installation positionVertical and horizontal
Suitable for fire doorsYes
Certified in compliance withEN 14846:2008
Variants that can be ordered
Order number
Description
143---------Q34Without striking plate, 12/24V AC/DC DIN L
143---------Q35Without striking plate, 12/24 V AC/DC DIN R
