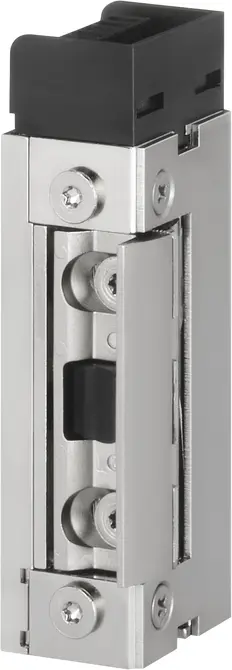

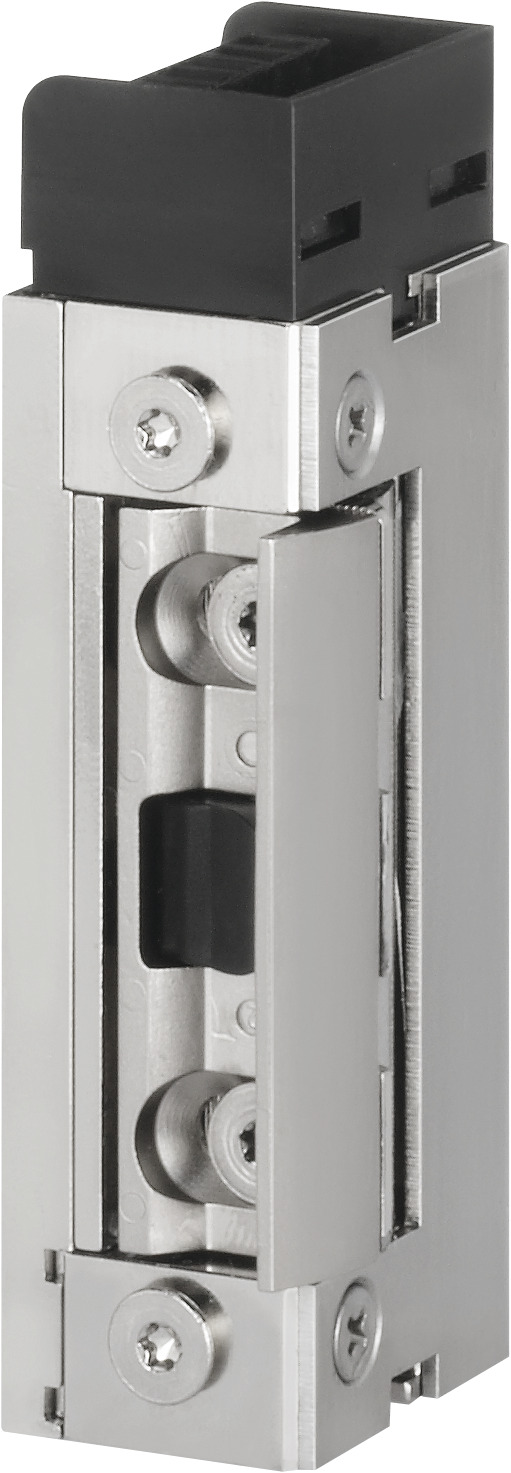

Electric strike 143R
Product description
Model with monitoring contact as potential-free changeover contact. This is actuated by the latch bolt via a lever.
Can also be used as a high-security strike
Overview of Advantages
- Radius keeper, FaFix®, adjustable by 4 mm
- 12-24 Volt voltage range for AC and DC operation
- New connection technology, can be replugged
- Resistant to continuous current across the entire voltage range
- All models can be fitted as required (right/left/horizontally)
- Integrated surpressor diode
- Compatible with Model Range 142U
- Preload modes 400N or 800N can be set
Note
- Each version can be installed on the left, right, or horizontally. If space is limited, the terminal block can be fitted elsewhere on site.
Adjustable keeper (FF, FaFix®) | Yes |
Monitoring contact (RR) | Yes |
Fail-locked | Yes |
TVS diode | Yes |
Changeable connection | Yes |
Max. pre-load | 400 N / 800 N |
Break-in resistance | 8000 N |

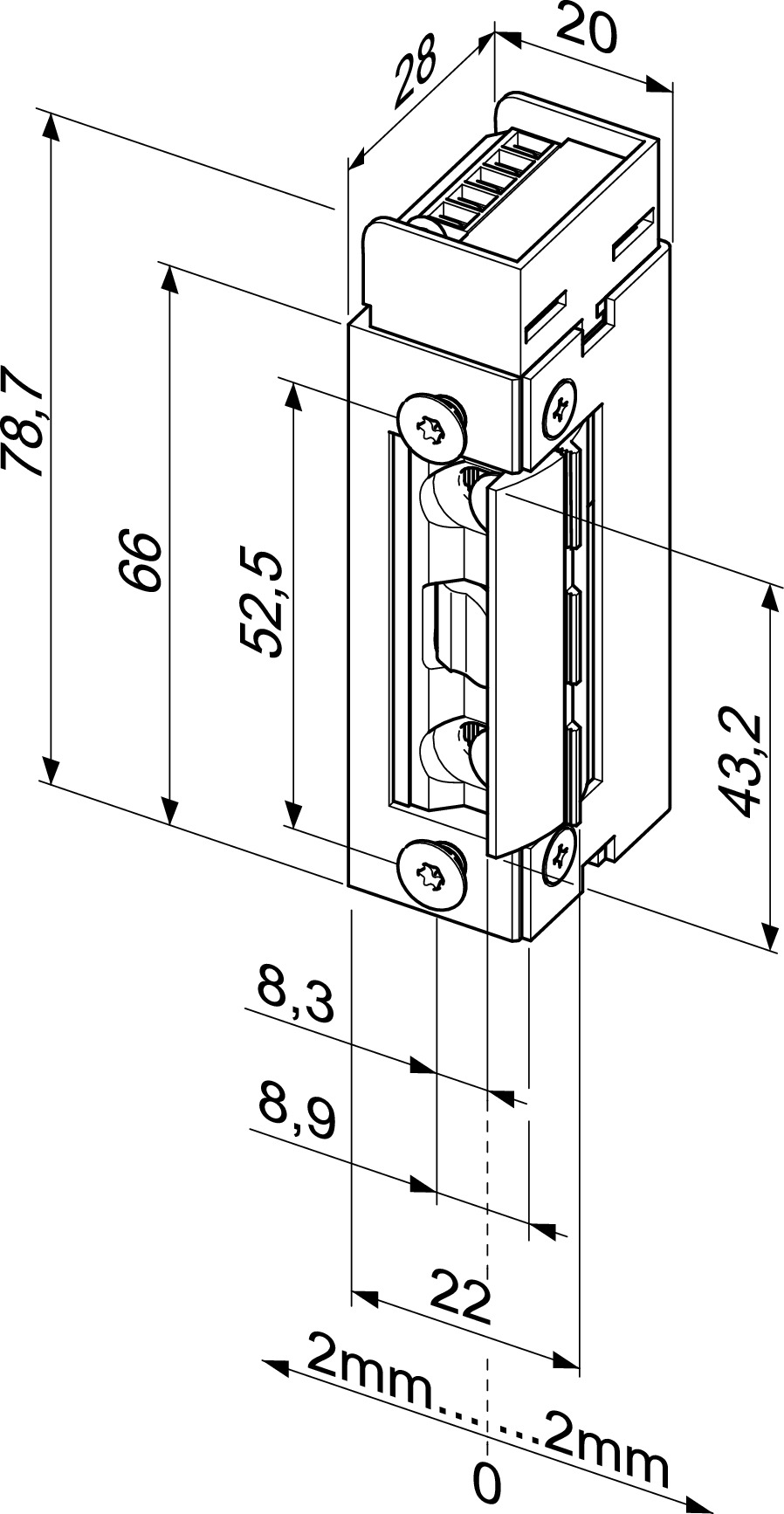

Height | 79 mm |
Width | 20 mm |
Depth | 28 mm |
FaFix® adjustment range | 4 mm |
Latch bolt engaging depth | 6 mm |
Operating temperature range | -15 °C to +40 °C |
Continuous function load cycles | 200000 |
Load cycles for in-plant test | 500000 |
Installation position | Vertical and horizontal |
Suitable for fire doors | Yes |
Certified in compliance with | EN 14846:2008 |
VdS class | Class B |
Order number | Description |
---|---|
143R--------Q34 | Without striking plate, 12/24V AC/DC DIN L |
143R--------Q35 | Without striking plate, 12/24 V AC/DC DIN R |
