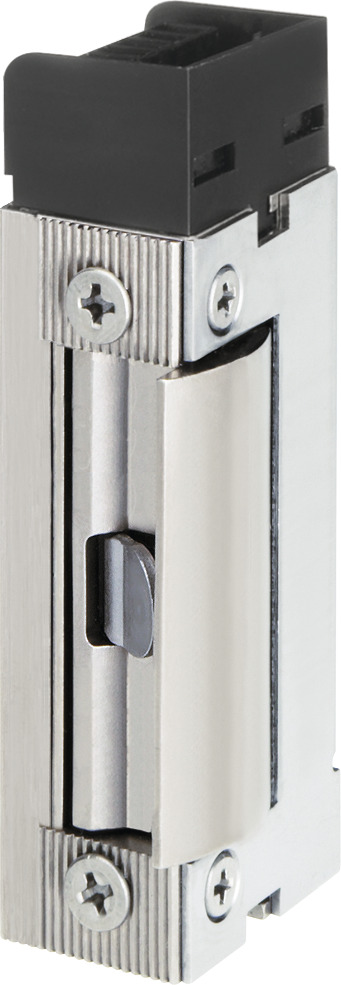

Electric strike 143RF

Product description

Model with monitoring contact as potential-free changeover contact. This is actuated via a latch bolt lever. Door strike can be adjusted in the striking plate, thus making installation work a great deal easier.

Overview of Advantages

  • New connection technology, can be replugged
  • 12-24 Volt voltage range for AC and DC operation
  • Resistant to continuous current across the entire voltage range
  • All models can be fitted as required (right/left/horizontally)
  • Integrated surpressor diode
  • Compatible with Model Range 142U
  • Monitoring contact
  • Preload modes 400N or 800N can be set

Note

  • Each version can be installed on the left, right, or horizontally. If space is limited, the terminal block can be fitted elsewhere on site.
Technical data
Adjustable electric strike (F, Fix®)Yes
Monitoring contact (RR)Yes
Fail-lockedYes
TVS diodeYes
Changeable connectionYes
Certified in compliance withEN 14846:2008
Max. pre-load400 N / 800 N
Break-in resistance10,000 N

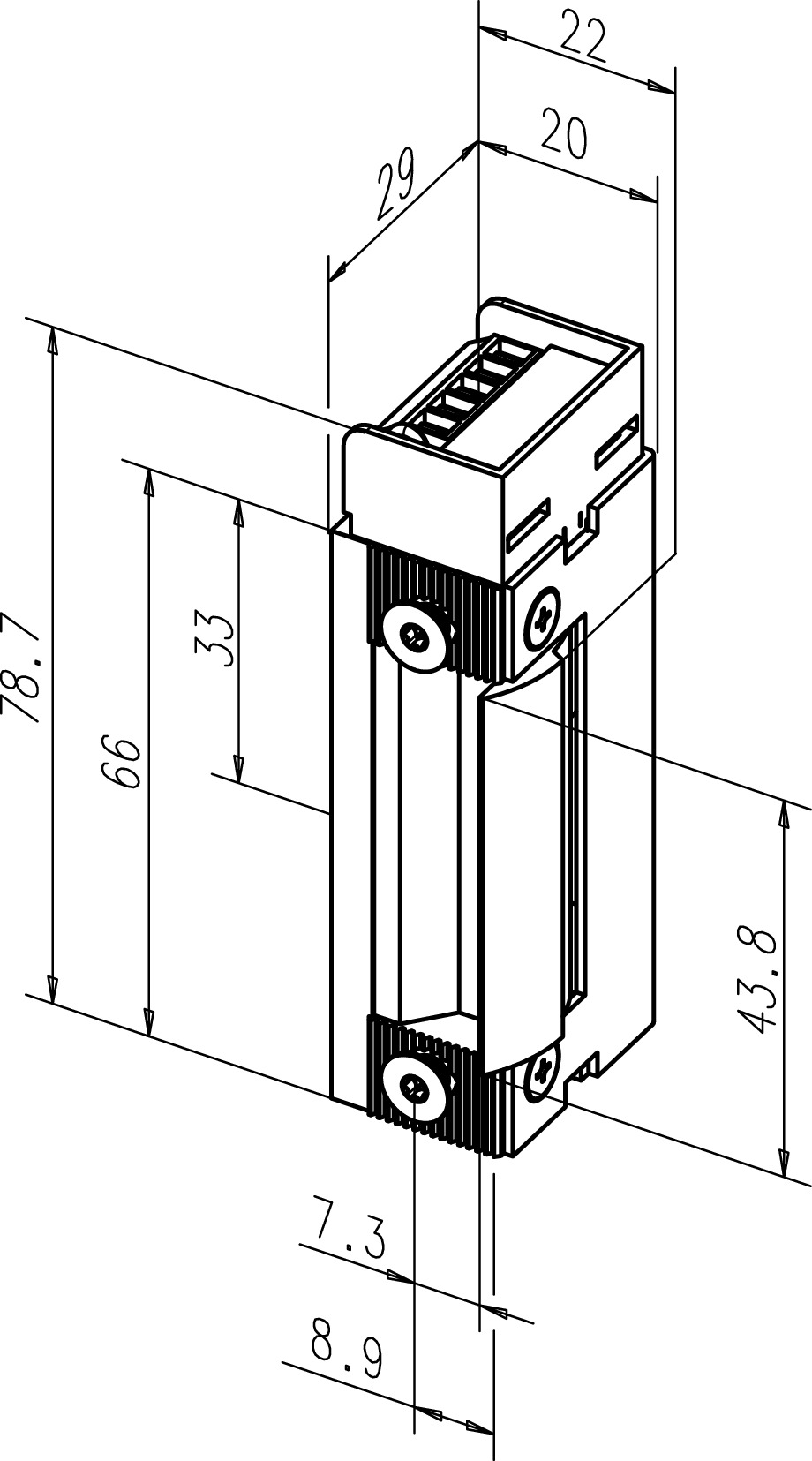

Height79 mm
Width22 mm
Depth28 mm
Latch bolt engaging depth8 mm
Operating temperature range-15 °C to +40 °C
Continuous function load cycles200000
Load cycles for in-plant test500000
Installation positionVertical and horizontal
Suitable for fire doorsYes
VdS classClass B
Variants that can be ordered
Order number
Description
143RF-------Q34Without striking plate, 12/24V AC/DC DIN L
143RF-------Q35Without striking plate, 12/24 V AC/DC DIN R
