Electric strike 142USRF

Product description

Model with connection on the long side of the housing. Advantage: The cable conduit is not near the dead bolt.

Overview of Advantages

  • High break-in resistance
  • Monitoring contact
  • Can switch between 12 and 24 V for AC and DC operation
  • Improved connection technology
  • All models can be fitted as required (right/left)
  • Vertical and horizontal fitting possible
  • Integrated surpressor diode

Note

  • DIN right models and S models can be fitted for use in locks with minimum latch bolt spacing and also offer the possibility of directing the connecting cable away to a suitable position.
Technical data
Adjustable electric strike (F, Fix®)Yes
Monitoring contact (RR)Yes
Fail-lockedYes
TVS diodeYes
Break-in resistance10000 N

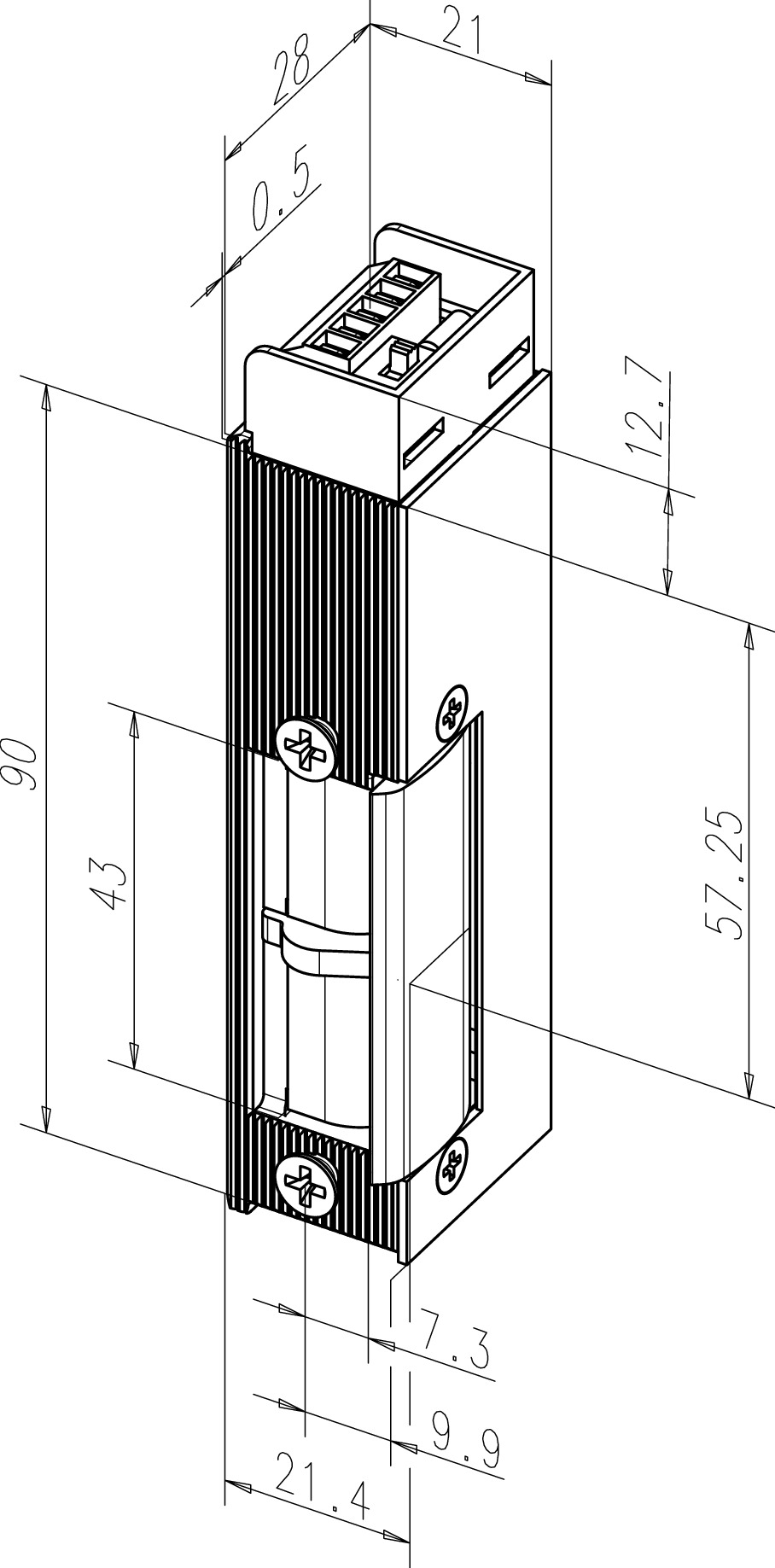

Height103 mm
Width21 mm
Depth25 mm
Operating temperature range-15 °C to +40 °C
Installation positionVertical and horizontal
Certified in compliance withEN 14846:2008
Variants that can be ordered
Order number
Description
142USRF-----Q34Without striking plate, 12/24 V AC/DC eE
142USRF-----Q35Without striking plate, 12/24 V AC/DC eE
