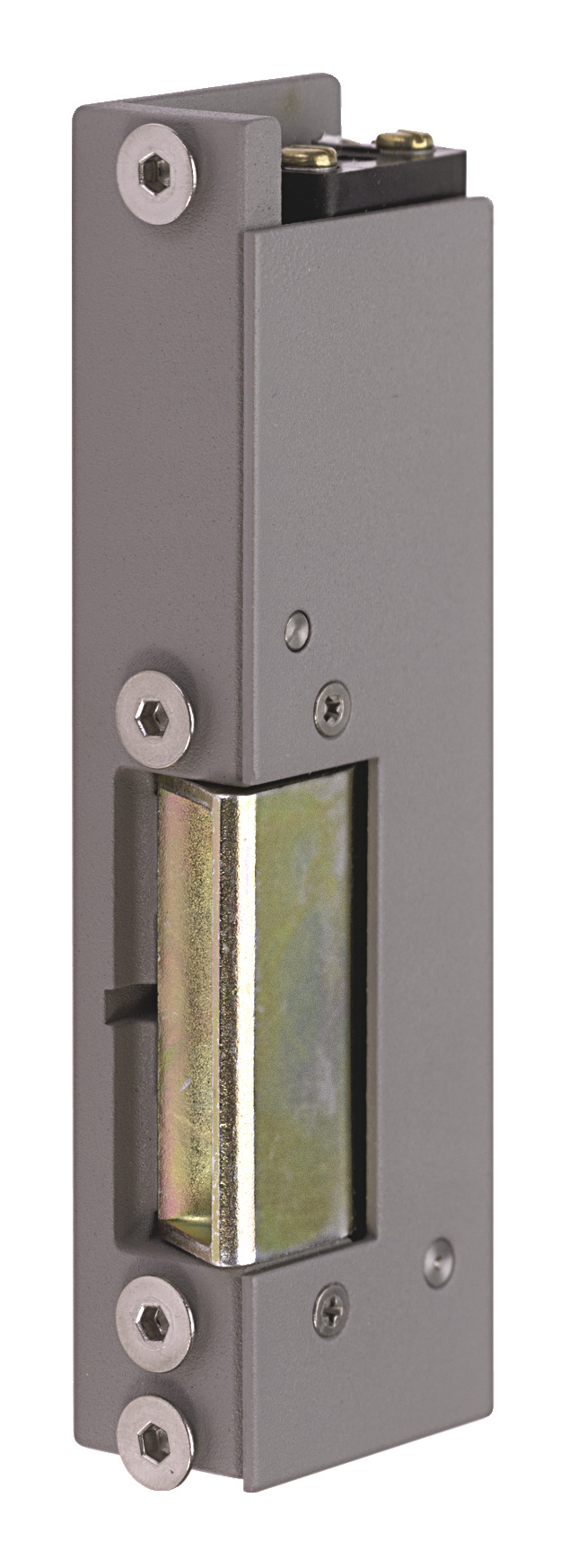

Electric strike 131

Product description

Electric strikes for fire doors with an exceptionally sturdy design.

Model with basic equipment.

Can also be used as a security electric strike.

Overview of Advantages

  • Reliable unlocking under preload
  • Horizontal fitting permitted
  • Sturdy design

Note

  • Please refer to the information provided from the Deutsches Institut für Bautechnik (German Institute for Structural Engineering).
Technical data
Fail-lockedYes
Break-in resistance15000 N
Height134 mm
Width23 mm
Depth39 mm
Operating temperature range-15 °C to +40 °C
Installation positionVertical and horizontal
Material housingSteel precision-casting
Latch materialSteel
Certified in compliance withEN 14846:2008
Variants that can be ordered
Order number
Description
131---------E14Without strike plate, 12 V AC/DC, DIN left
131---------E15Without strike plate, 12 V AC/DC, DIN right
131---------F14Without strike plate, 24 V AC/DC, DIN left
131---------F15Without strike plate, 24 V AC/DC, DIN right
131---------E34Without strike plate, 12 V DC eE, DIN left
131---------E35Without strike plate, 12 V DC eE, DIN right
131---------F34Without strike plate, 24 V DC eE, DIN left
131---------F35Without strike plate, 24 V DC eE, DIN right
