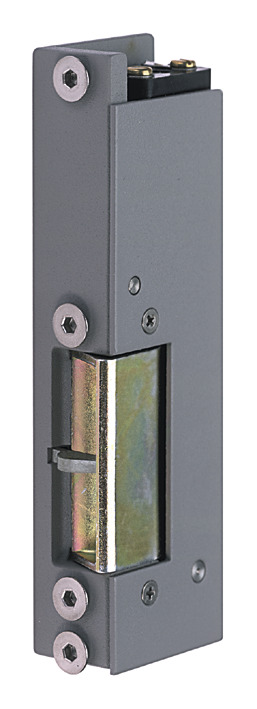

Electric strike 131RR
Product description
Electric strikes for fire doors with an exceptionally sturdy design.
Model with monitoring contact
Can also be used as a security electric strike.
Overview of Advantages
- Reliable unlocking under preload
- Horizontal fitting permitted
- Sturdy design
Note
- Please refer to the information provided from the Deutsches Institut für Bautechnik (German Institute for Structural Engineering).
| Monitoring contact (RR) | Yes |
| Fail-locked | Yes |
| Break-in resistance | 15000 N |
| Height | 134 mm |
| Width | 23 mm |
| Depth | 39 mm |
| Operating temperature range | -15 °C to +40 °C |
| Installation position | Vertical and horizontal |
| Material housing | Steel precision-casting |
| Latch material | Steel precision-casting |
| Certified in compliance with | EN 14846:2008 |
| Order number | Description |
|---|---|
| 131RR-------E14 | Without strike plate, 12 V AC/DC, DIN left |
| 131RR-------E15 | Without strike plate, 12 V AC/DC, DIN right |
| 131RR-------F14 | Without strike plate, 24 V AC/DC, DIN left |
| 131RR-------F15 | Without strike plate, 24 V AC/DC, DIN right |
| 131RR-------E34 | Without strike plate, 12 V DC eE, DIN left |
| 131RR-------E35 | Without strike plate, 12 V DC eE, DIN right |
| 131RR-------F34 | Without strike plate, 24 V DC eE, DIN left |
| 131RR-------F35 | Without strike plate, 24 V DC eE, DIN right |
