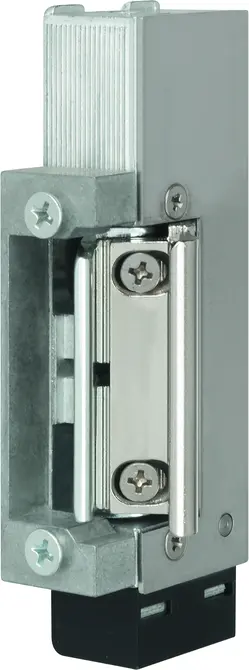

Electric strike 9034U09

Product description

Keeper designed especially for dead bolts: As opposed to standard electric strikes, when the door is open the electric strike latch is hinged open and therefore in the position to accept the bolt.

When the door is open, the keeper is open in contrast to standard door strikes and is thus in position for the bolt to engage

When the door is closed, the keeper is moved into the closed position by the bolt. This is a reliable method for preventing the door from being locked unintentionally when it is open. Also available as a security electric strike.

When no electrical current is applied, in fail locked types the strike is immediately locked.

The function is also controlled by a securing pin in the case of fail-locked models. The door can only be locked if the securing pin is activated by the dead bolt. This is a reliable way of preventing the door from being locked unintentionally when it is

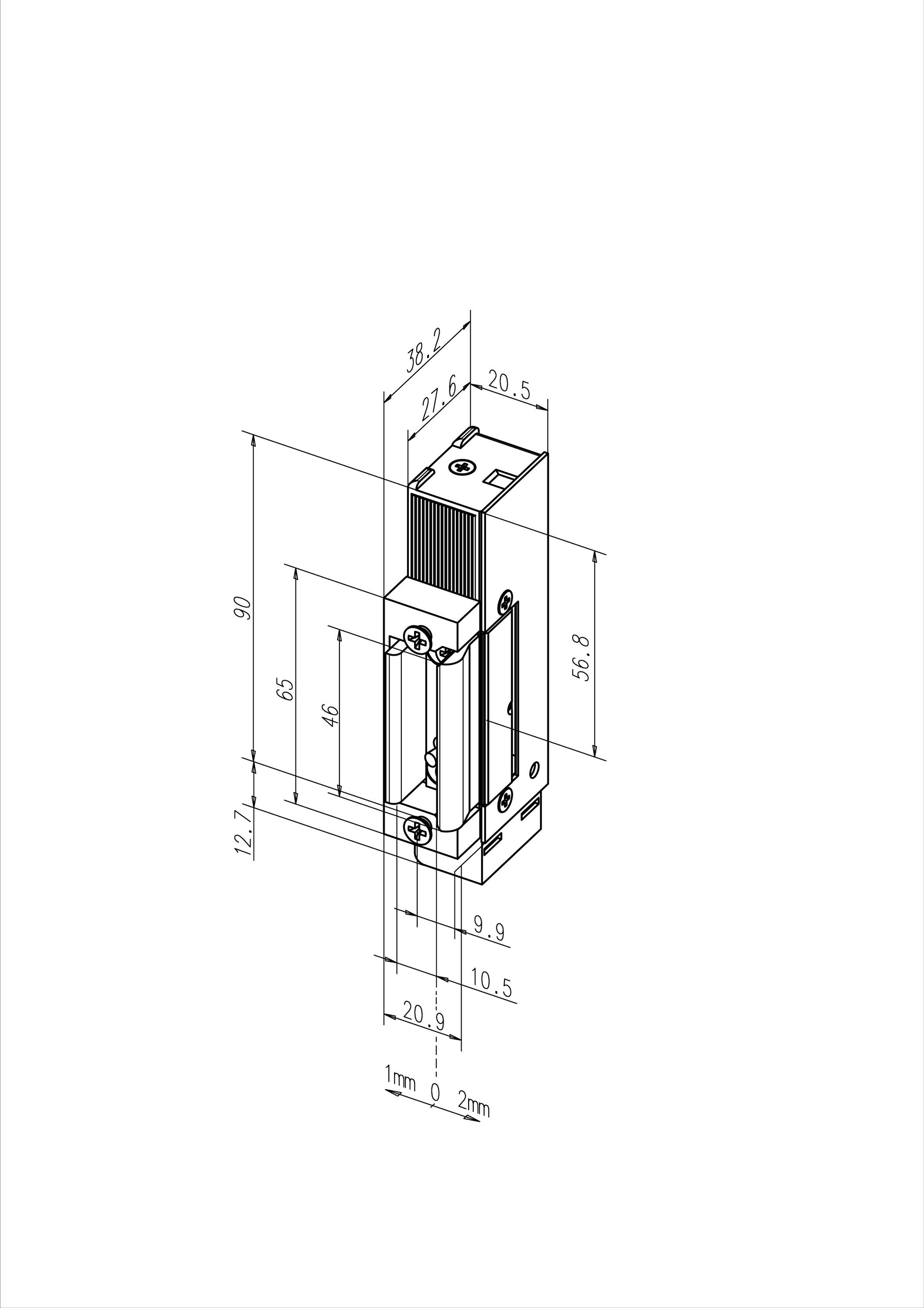

Technical data
Adjustable keeper (FF, FaFix®)Yes
Diode (05)Yes
Fail-unlockedYes
Dead bolt thickness9-12 mm
Break-in resistance3700 N
Width38.2 mm
Depth20 mm
Dead bolt penetration10 mm
Height40 mm
Operating temperature range-15 °C to +40 °C
Installation positionVertical and horizontal
Variants that can be ordered
Order number
Description
9034U09-----Q91
9034U-------Q91Without striking plate, 12/24 V DC
