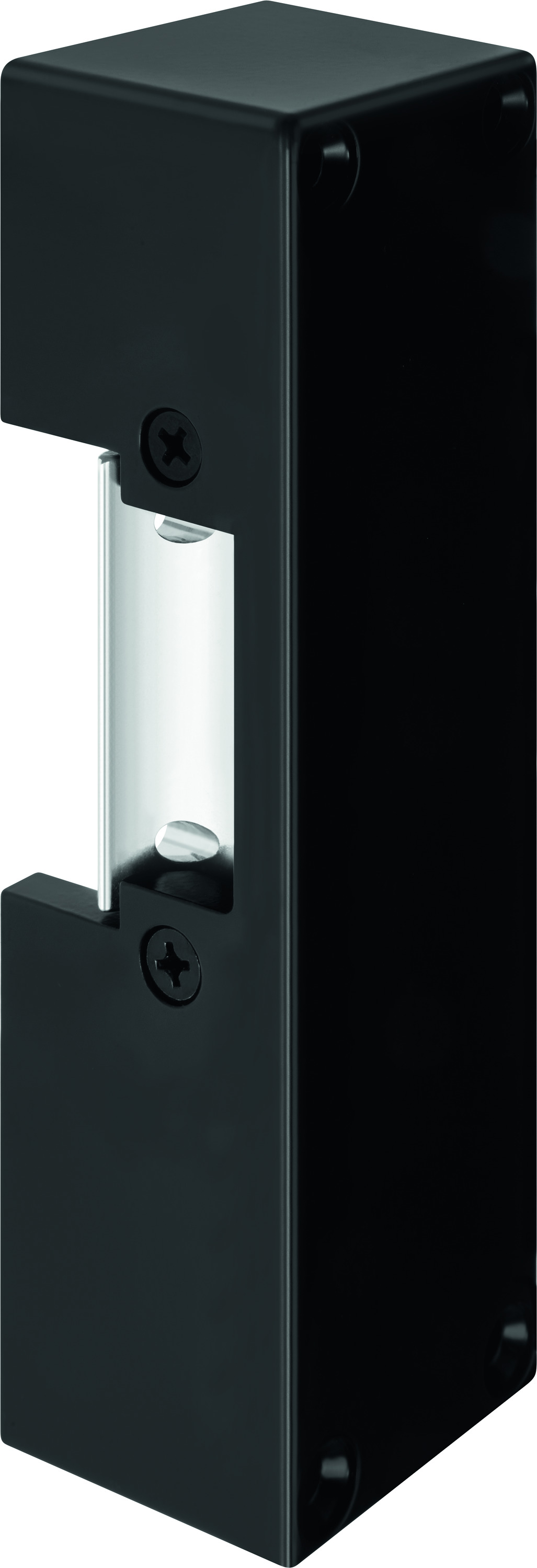

Electric strike 14.400-20105
Product description
Electric strike for horizontal panic door locks. Including surface-mounted housing ATP-------20105-01
Overview of Advantages
- Vertical and horizontal mounting possible
- Due to 180° fitting, can be used DIN right and left
Scope of delivery
- 1 piece electric strike
| Fail-locked | Yes |
| ATP (anti-panic) | Yes |
| Break-in resistance | 3000 N |
| Height | 146 mm |
| Width | 45 mm |
| Depth | 38 mm |
| Installation position | Vertical and horizontal |
| Operating temperature range | -15 °C to +40 °C |
| Material housing | Zinc die-cast |
| Latch material | Coated brass |
| Colour | 05 |
| Colour | Black |
| Order number | Description |
|---|---|
| 14.400-20105D11 | With rim type housing, 6-12 V AC/DC |
| 14.400-20105R11 | With rim type housing, 8-16 V AC/DC |
| 14.400-20105F11 | With rim type housing, 24 V AC/DC |
| 14.400-20105E31 | With rim type housing, 12 V DC eE |
| 14.400-20105F31 | With rim type housing, 24 V DC eE |
