Electric strike 14.400520105

Product description

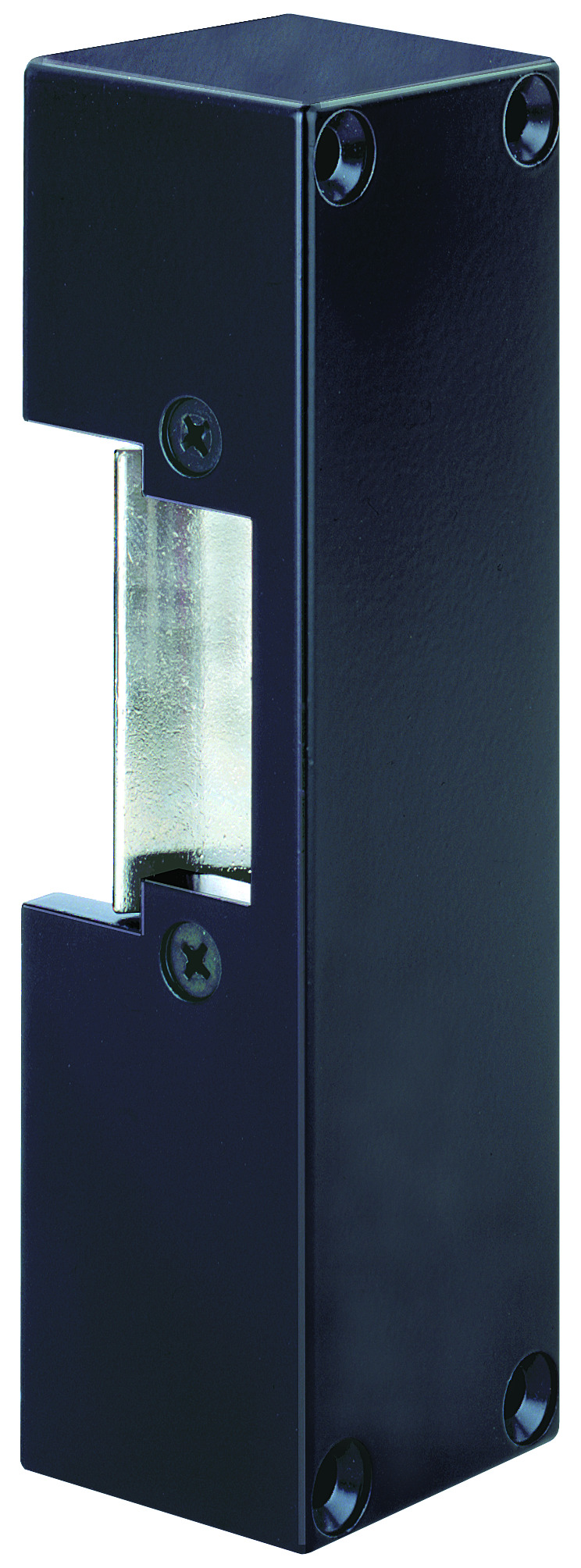

Electric strike for horizontal panic door locks. Including surface-mounted housing ATP-------20105-01

model has a recovery diode

Overview of Advantages

  • Vertical and horizontal mounting possible
  • Due to 180° fitting, can be used DIN right and left
Technical data
Diode (05)Yes
Fail-lockedYes
ATP (anti-panic)Yes
Break-in resistance3000 N
Height146 mm
Width45 mm
Depth38 mm
Operating temperature range-15 °C to +40 °C
Installation positionVertical and horizontal
Material housingPowder-coated die-cast zinc
Colour05
ColourBlack
Variants that can be ordered
Order number
Description
14.400520105E31With rim type housing, 12 V DC eE
14.400520105F31With rim type housing, 24 V DC eE
