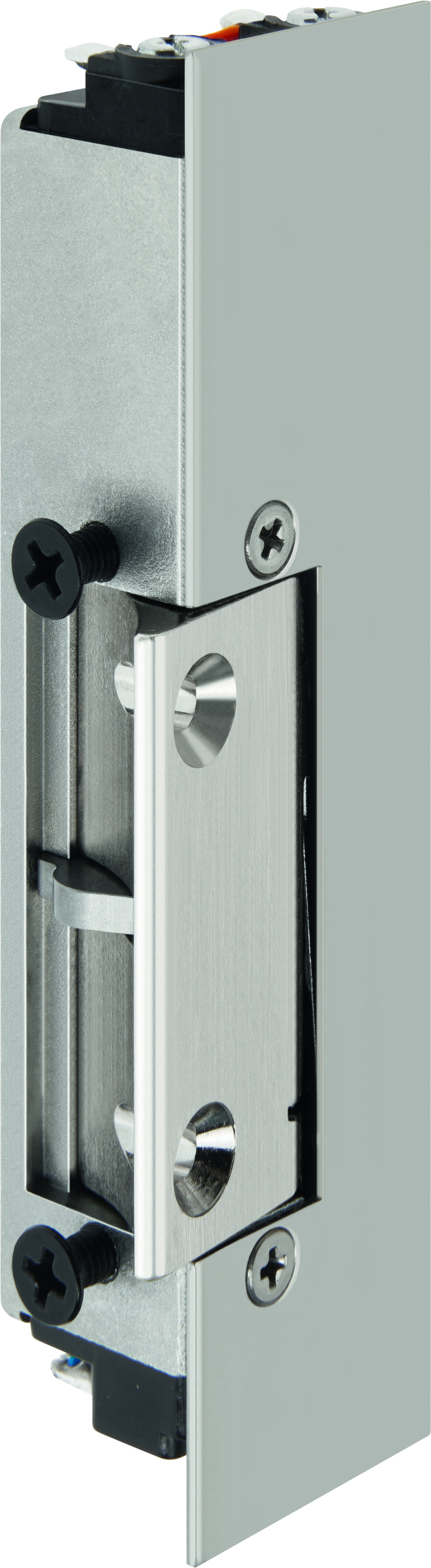

Electric strike 14.460

Technical data
Monitoring contact (RR)Yes
Fail-lockedYes
ATP (anti-panic)Yes
Break-in resistance3000 N

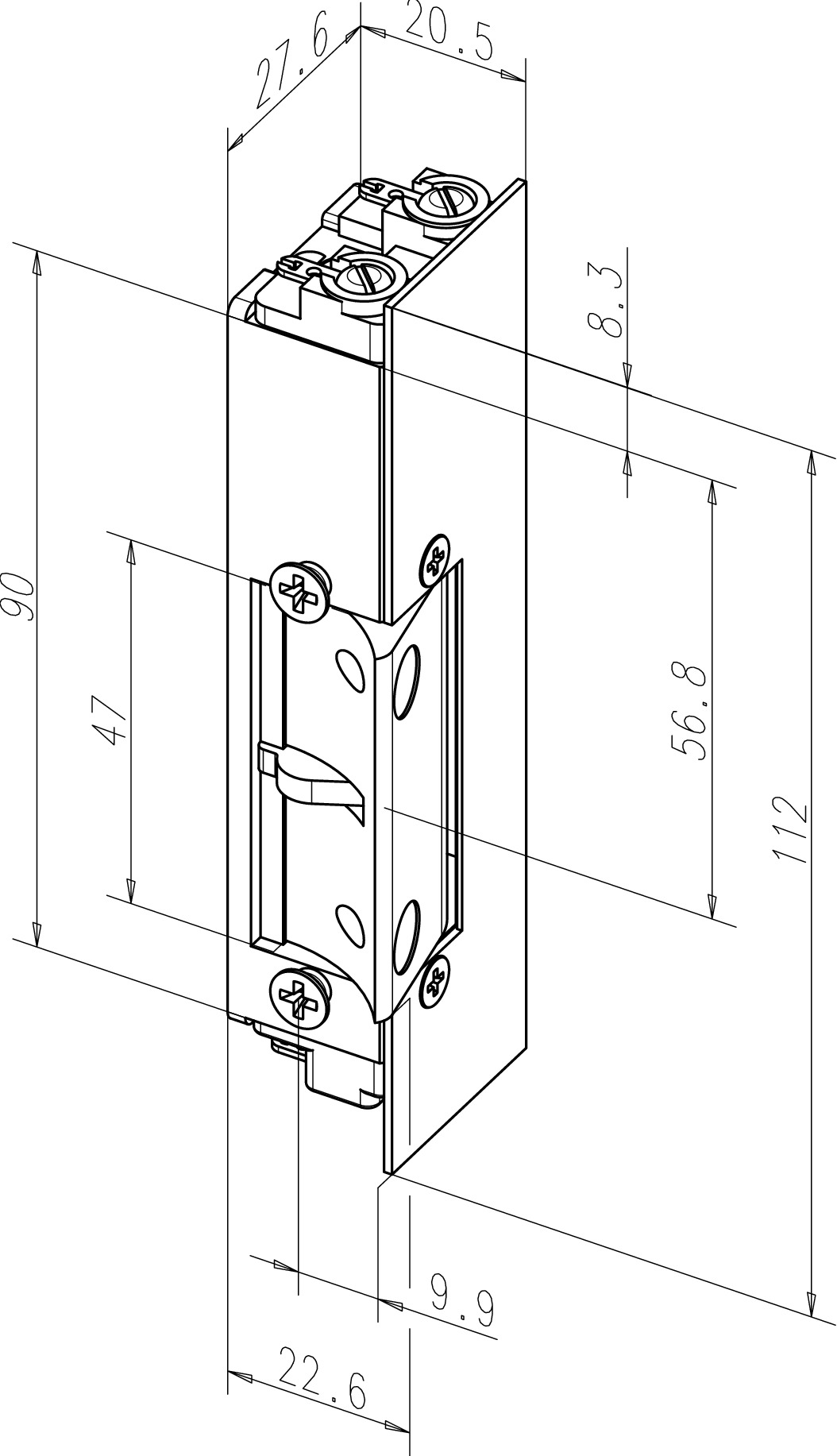

Height90 mm
Width20.5 mm
Depth28 mm
Operating temperature range-15 °C to +40 °C
Installation positionVertical and horizontal
Material housingPowder-coated die-cast zinc
Variants that can be ordered
Order number
Description
14.460------D11Including rim type housing, 6-12 V AC/DC
14.460------E31Including rim type housing, 12 V DC eE
14.460------F11Including rim type housing, 24 V AC/DC
14.460------F31Including rim type housing, 24 V DC eE
14.460------R11Including rim type housing, 8-16 V AC/DC
