Angled strike plate

Thickness 3 mm

Product description

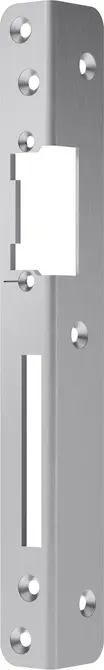

Angled striking plate with latch bolt aperture and dead bolt cutout.

Overview of Advantages

  • Meter scribed marking
  • 3 mm material thickness
  • For conventional effeff standard electric strike models, except for ProFix® variants

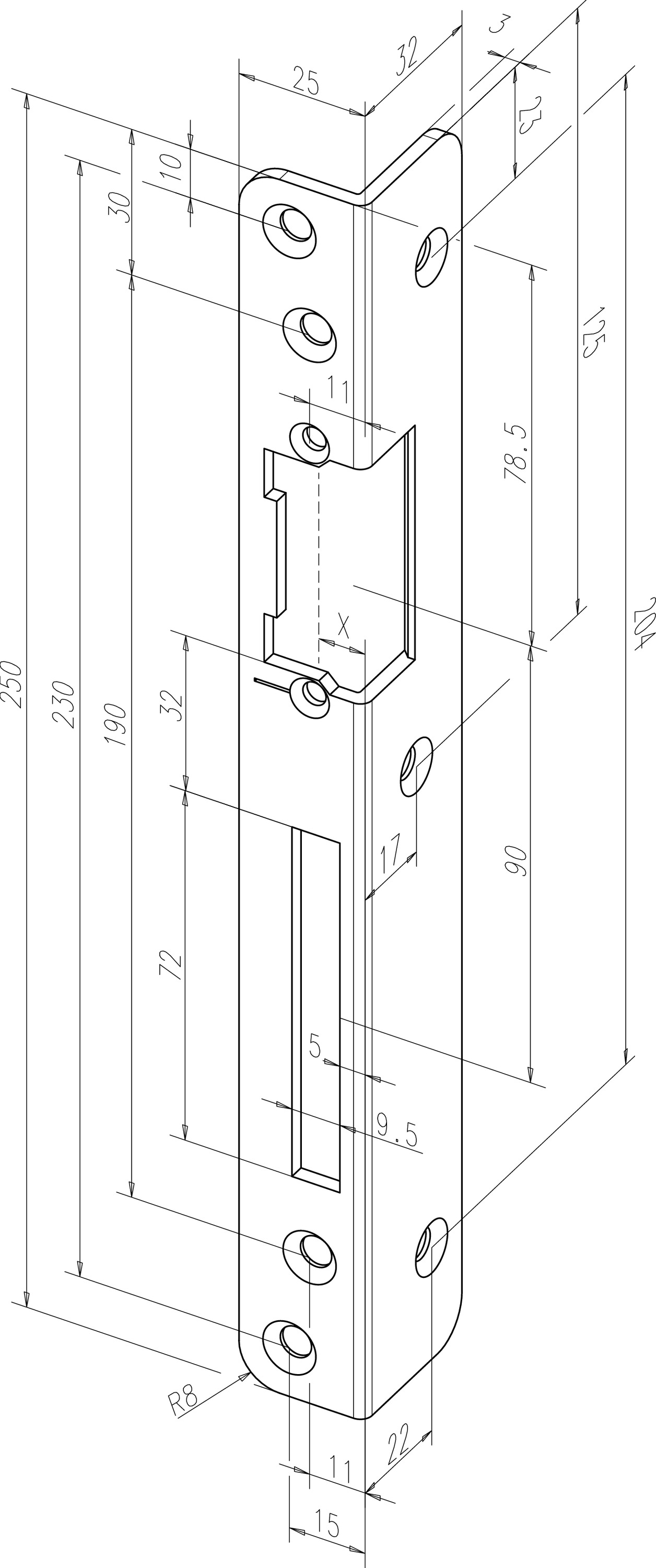

Technical data
Length250 mm
Width25 mm
Thickness3 mm
Depth32 mm
Dead bolt cutoutYes
Variants that can be ordered
Order number
Description
-------06901-0#Thickness 3 mm
-------06904-0#Thickness 3 mm
-------06935-0#Thickness 3 mm
-------06977-0#Thickness 3 mm
