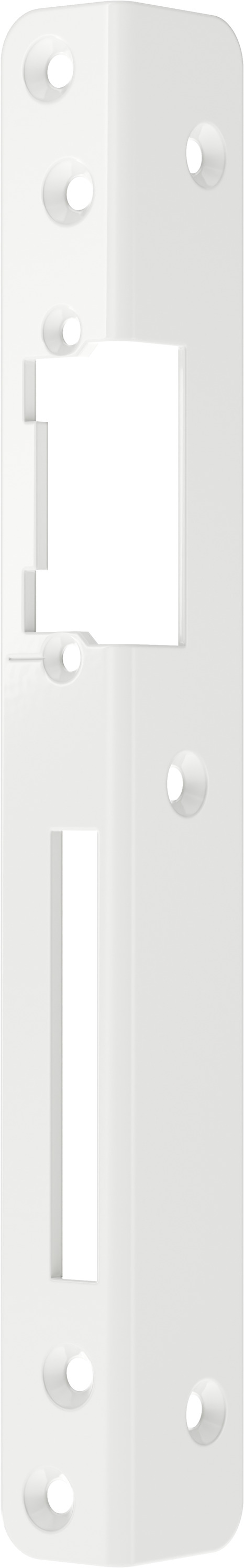

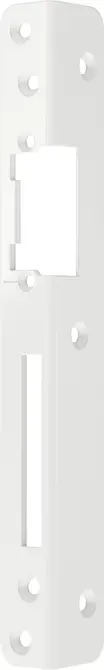

Angled strike plate 06904

Thickness 3 mm

Product description

Angled striking plate with latch bolt aperture and dead bolt cutout.

Overview of Advantages

  • Meter scribed marking
  • 3 mm material thickness
  • For conventional effeff standard electric strike models, except for ProFix® variants
Technical data
Length250 mm
Width25 mm
Thickness3 mm
Depth32 mm
Dead bolt cutoutYes
Colour04
ColourWhite
Variants that can be ordered
Order number
Description
-------06904-04250 x 25/32 x 3 mm, white, DIN L
-------06904-05250 x 25/32 x 3 mm, white, DIN R
