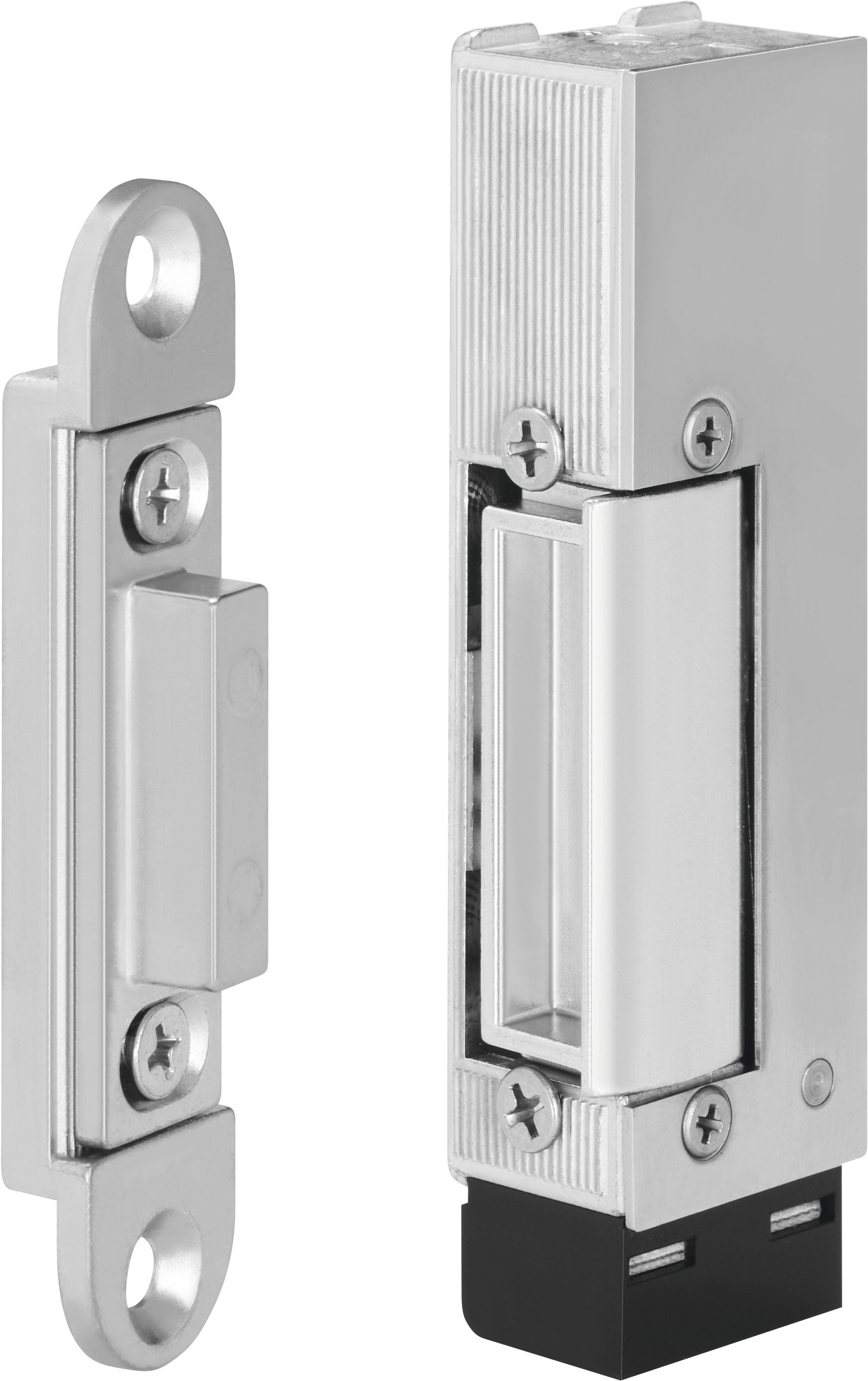

Electric strike 9314UR------Q31
Without striking plate, 12/24 V AC/DC eE
Product description
Main use is as a supplementary electronic locking device in sanitary facilities (WC) with 2 entrances in hospitals and nursing homes. Combined with a bolt switch contact model 878 or 875, when one door is mechanically locked, the lock in the opposite doo
Interlocking functions can be easily controlled using models with monitoring contacts.
The particular advantage of this type series is its almost silent operation. Due to its special design, there is no clicking sound like the one usually heard in electric strikes when the door is opened.
Overview of Advantages
- With 12/24 V changeover switch including TVS diode (e.g. to combine with access control systems)
- Integrated monitoring contact
- DIN left and right usable
- Almost silent operation
Scope of delivery
- 1 piece electric strike
| DIN direction | universal |
| Electric strike voltage | 12 - 24 V AC/DC eE |
| Monitoring contact (RR) | Yes |
| Diode (05) | Yes |
| Fail-locked | Yes |
| Nominal resistance 12 V | 58 Ohm |
| Nominal resistance 24 V | 230 Ohm |
| Current consumption 12 V AC | 130 mA |
| Current consumption 24 V AC | 70 mA |
| Current consumption DC (50% Residual ripple) 12 V | 190 mA |
| Current consumption DC (50% ripple) 24 V | 105 mA |
| Current consumption 12 V DC (stabilised) | 210 mA |
| Current consumption 24 V DC (stabilised) | 105 mA |
| Break-in resistance | 3000 N |
| Operating temperature range | -15 °C to +40 °C |
| Installation position | Vertical and horizontal |
| Material housing | Zinc die-cast |
| Latch material | Zinc die-cast |
