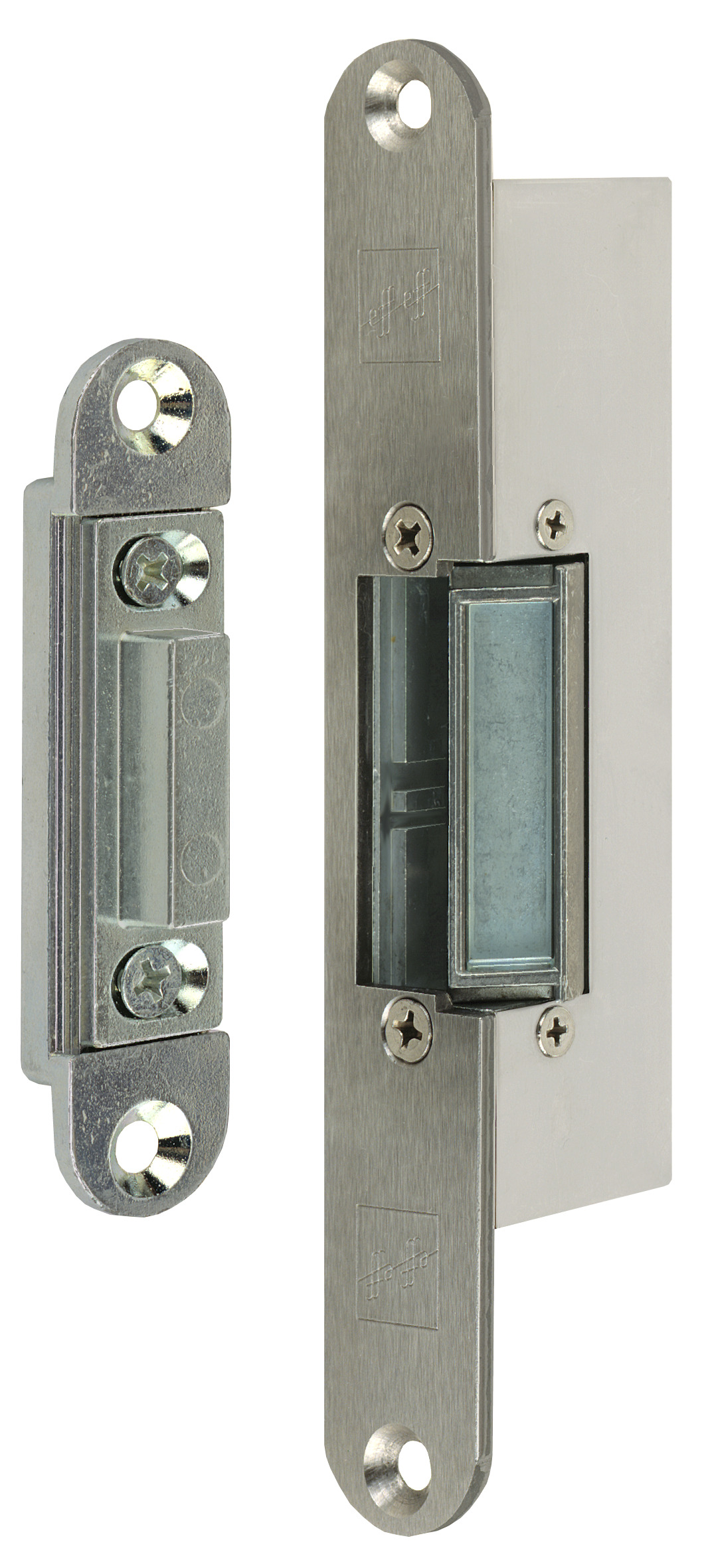

Electric strike 9334

Product description

Main use is as a supplementary electronic locking device in sanitary facilities (WC) with 2 entrances in hospitals and nursing homes. Combined with a bolt switch contact model 878 or 875, when one door is mechanically locked, the lock in the opposite doo

Interlocking functions can be easily controlled using models with monitoring contacts.

The particular advantage of this type series is its almost silent operation. Due to its special design, there is no clicking sound like the one usually heard in electric strikes when the door is opened.

Overview of Advantages

  • DIN left and right usable
  • Almost silent operation
Technical data
Fail-unlockedYes
Break-in resistance3000 N
Height90 mm
Width20 mm
Depth16 mm
Operating temperature range-15 °C to +40 °C
Installation positionVertical and horizontal
Material housingZinc die-cast
Latch materialZinc die-cast
Variants that can be ordered
Order number
Description
9334--------E91Without striking plate, 12 V DC
9334--------F91Without striking plate, 24 V DC
