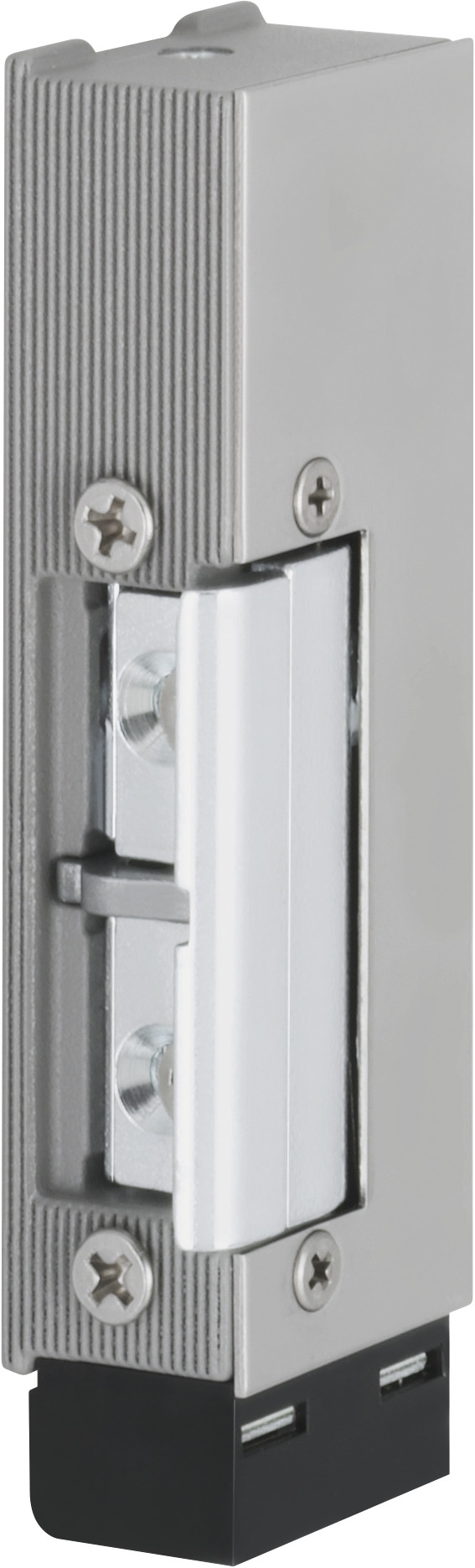

Electric strike 342UR

Product description

Model with monitoring contact as potential-free changeover contact. This is actuated by the latch bolt via a lever.

Overview of Advantages

  • Monitoring contact (RR)
  • Can switch between 12 and 24 V
  • Integrated surpressor diode
  • FaFix® and Fix combined

Note

  • Can only be used as a supplementary locking device on fire doors
  • Not an authorised locking system for doors along escape and rescue routes
Technical data
Adjustable keeper (FF, FaFix®)Yes
Adjustable electric strike (F, Fix®)Yes
Monitoring contact (RR)Yes
Fail-unlockedYes
TVS diodeYes
Break-in resistance6500 N

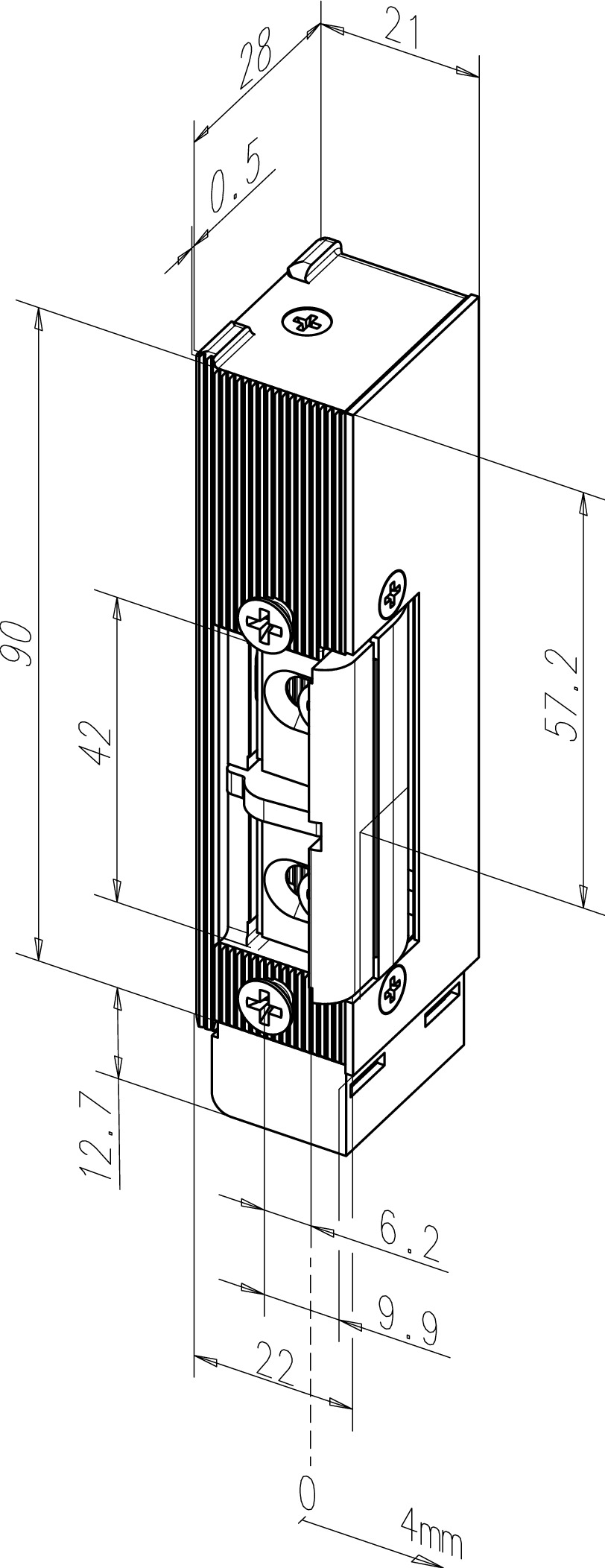

Height103 mm
Width28.5 mm
Depth21 mm
Operating temperature range-15 °C to +40 °C
Installation positionVertical and horizontal
Variants that can be ordered
Order number
Description
342UR-------Q94Without faceplate, 12-24 V DC, DIN left
342UR-------Q95Without faceplate, 12-24 V DC, DIN right
