Switch cylinder - system TK5 5511

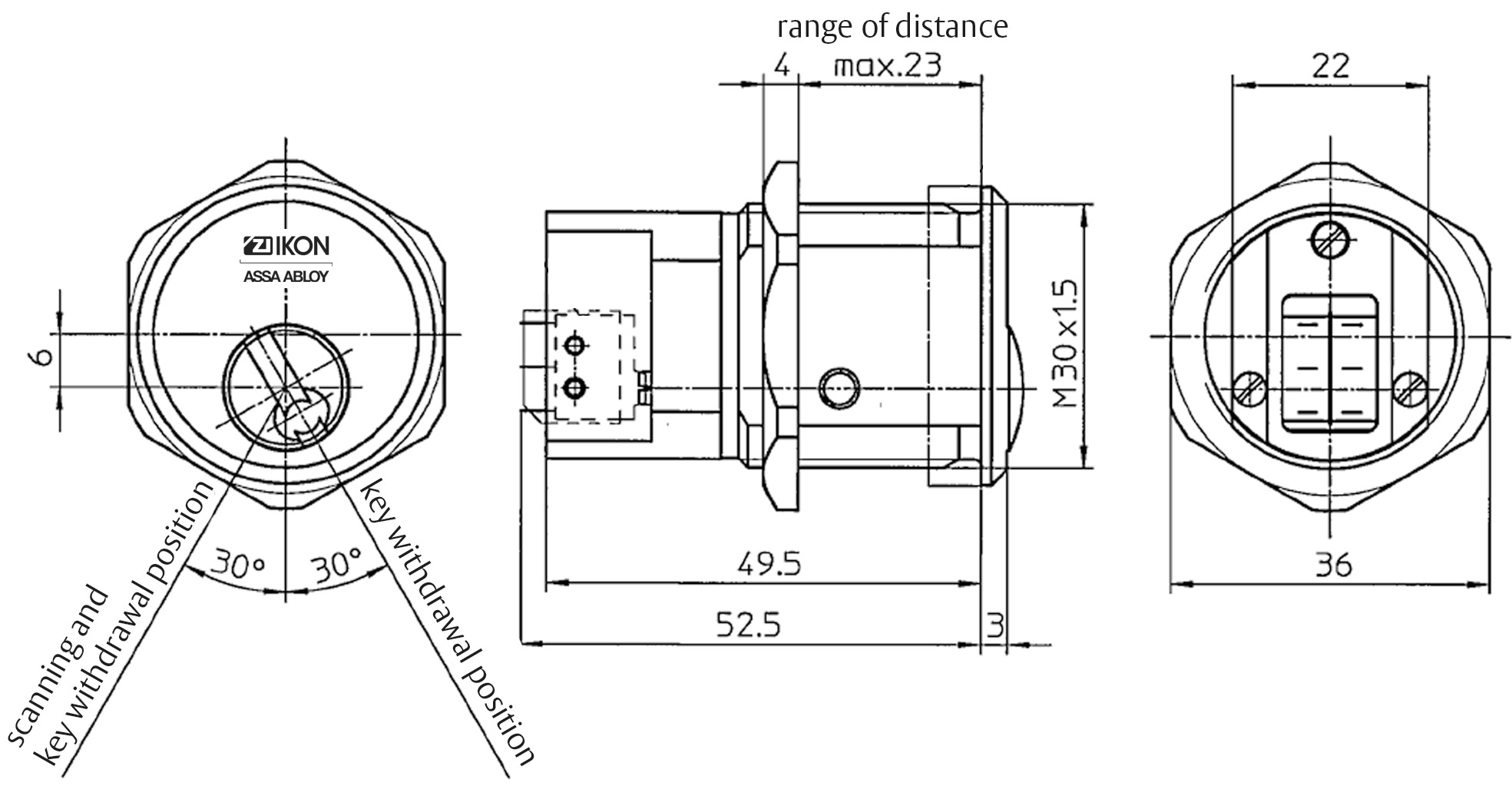

30 mm Diameter, laterally flattened to 22 mm
Product description
- 5 pin tumblers
- Brass cylinder
- Standard finish, satin nickel-plated (OF=MV)
- Other surfaces: brass, mat brushed (OF=MG), polished brass (OF=MP)
- Spherical cylinder core head with reinforced key guide
- Switching cylinder with 2 key withdrawal positions
- Two microswitches F4T 7-GP UL (Burgess) (VAC 48 V/ resistive load 5A, VAC 48 V/ inductive load 0.5 A)
- Key rotation 60°
- A rotation actuates a switch device (e.g. underground car parks, etc.).
- Key with round metal head
- Available for individual lockings
Scope of delivery
- 1 switch cylinder
- 2 nickel silver keys
There are no available profile versions in the combination you have selected.
There are no available profile versions in the combination you have selected.
System | TK5 | |
---|---|---|
Articlenumber | 5511 | |
Profile (PR=) | PA= | |
Standard profile N3. | 50 | |
Blocking cam angular ..RS (0RS- 16RS) | 52 | |
Blocking rib 1RP2. | 53 | |
Locking wave profile 2PE | 54 | |
Blocking cam ..RN | 58 | |
Blocking rib/Labyrinth 1RP5. | 59 | |
Angular profile SP.. | 60 | |
Standard profile SN. | 62 | |
Standard profile N1. | 63 | |
Standard profile DR. | 64 | |
Blocking cam angular ..RS (from 34RS) | 66 | |
Blocking rib 1RP4. | 68 | |
Blocking rib 1RP6. | 69 | |
Standard profile N1P0 | 70 | |
Blocking cam profile ...NP | 72 | |
Standard profile N4. | 73 | |
Standard profile SP3. | 74 | |
Blocking rib 1RP3. | 75 | |
Blocking rib Vector 1RP04 | 76 | |
Flat profile Vector FP04 | 79 | |
Reversible key profile RWS | 81 | |
Reversible key profile blocking wave 2RWS | 82 |
