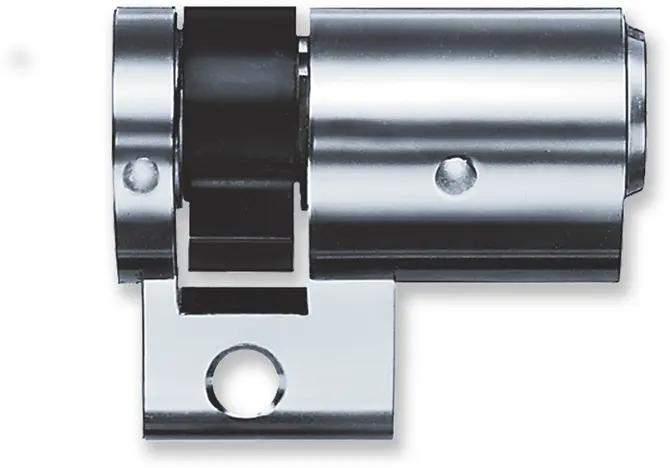

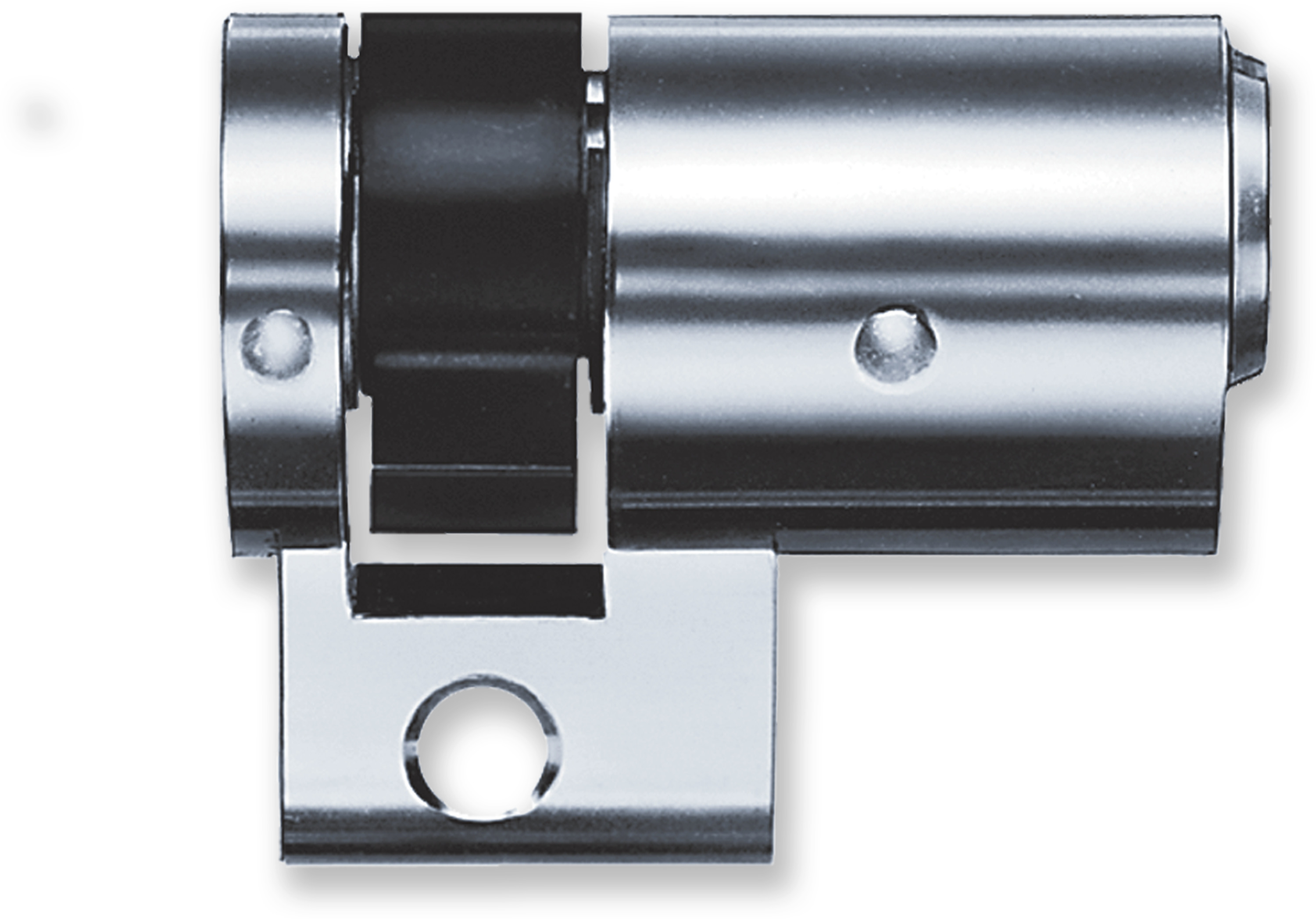

Profile half-cylinder CH .C32
22 mm diameter
Product description
- Brass cylinder
- Standard finish, satin nickel-plated (OF=MV)
- Standard cam position 45° bottom left - 8x45° reversible (SST=8x45)
- Tapered cylinder core head with reinforced key guide
- Cam made of break and corrosion-resistant sinter metal
- Core pins made of special wear-resistant bronze
Scope of delivery
- 1 profile half-cylinder
- 3 nickel silver keys
- 1 cylinder fixing screw M5 x 85 mm
There are no available profile versions in the combination you have selected.
| System | P0 | |||||
|---|---|---|---|---|---|---|
| Articlenumber | PC32 | |||||
| Standard system length | L= 30 mm | |||||
| Locking system (AA=) | GH | H | KHZ | Z | ZUE | |
| Main profile group= | PA= | |||||
| Standard profile | 00 | |||||
| Special profile | 02 | |||||
| Blocking rib profile | 03 | |||||
| Blocking rib/Labyrinth profile | 04 | |||||
| Meander profile | 05 | |||||
| Meander rib profile | 06 | |||||
| Meander rib/Labyrinth profile | 07 | |||||
| Standard locking wave profile | 08 | |||||
| Special locking wave profile | 09 | |||||
| Angular profile | 10 | |||||
| Blocking wave undercut | 11 | |||||
| Angular profile / ZSE | 12 | |||||
| Angular profile / ZSV | 13 | |||||
| Multiprofile | 14 | |||||
| Vector profile 1st security level | 15 | |||||
| Vector profile 1st security level | 15 | |||||
| Vector profile 2nd security level | 16 | |||||
| Reversible key profile blocking wave | 18 | |||||
| Blocking wave undercut extra code | 19 | |||||
| Multiprofile plus | 22 | |||||
| Vector profile Rib | 25 | |||||
| Vector profile Rib Extra | 26 | |||||
| Arcus profile | 30 | |||||
| X profile | 32 | |||||
| ZR profile | 33 | |||||
| R profile | 34 | |||||
| System | P0 | |
|---|---|---|
| Articlenumber | PC32 | |
| Standard system length | L= 30 mm | |
| Profile (PR=) | PA= | |
| Standard profile N2 | 61 | |
| Reversible key profile W10 | 67 | |
| Standard profile AEP10 | 71 | |
| ABLOY PROTEC² | 83 | |
| Blocking wave profile 5PE | 85 | |
| Reversible key profile RW6 | 86 | |
| Reversible key profile RW6 - Retailer profile | 87 | |
| Radii Profile N6 | 88 | |
| Locking Rib Radii Profile 1RP06 | 90 | |
| Locking cam radii profile ...NP | 91 | |
| Triangular profile DP06 | 92 | |
| System | P0 | |
|---|---|---|
| Articlenumber | PC32 | |
| Standard system length | L= 30 mm | |
| Profile (PR=) | PA= | |
| Standard profile N3. | 50 | |
| Blocking cam angular ..RS (0RS- 16RS) | 52 | |
| Blocking rib 1RP2. | 53 | |
| Locking wave profile 2PE | 54 | |
| Blocking cam ..RN | 58 | |
| Blocking rib/Labyrinth 1RP5. | 59 | |
| Angular profile SP.. | 60 | |
| Standard profile SN. | 62 | |
| Standard profile N1. | 63 | |
| Standard profile DR. | 64 | |
| Blocking cam angular ..RS (from 34RS) | 66 | |
| Blocking rib 1RP4. | 68 | |
| Blocking rib 1RP6. | 69 | |
| Standard profile N1P0 | 70 | |
| Blocking cam profile ...NP | 72 | |
| Standard profile N4. | 73 | |
| Standard profile SP3. | 74 | |
| Blocking rib 1RP3. | 75 | |
| Blocking rib Vector 1RP04 | 76 | |
| Flat profile Vector FP04 | 79 | |
| Reversible key profile RWS | 81 | |
| Reversible key profile blocking wave 2RWS | 82 | |
| | Order number | Product |
|---|---|---|
 | 8511 | Maintenance spray |
