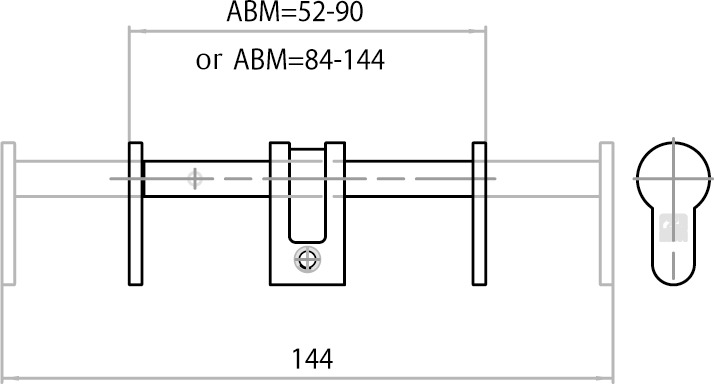

Adjustment range (in mm) 52-90 (ABM=52-90) or 84-144 (ABM=84-144)
Length can be adjusted by means of two opposing movable end pieces which are fixed in a central section by tightening the cylinder fixing screw
By shortening the end pieces the dummy cylinders are suitable for doors with thicknesses from 27 mm including fitting
According to MPA expert appraisal the IKON dummy cylinder 1530 is suitable for use in fire doors up to fire resistance category El290 complying with DIN EN 13501-2 and T90 complying with DIN 4102 Part 5
Scope of delivery
1 dummy cylinder
1 cylinder fixing screw M5 x 85 mm
Ordering Information
Please do not order this item with a locking number - It is a non-locking item.
